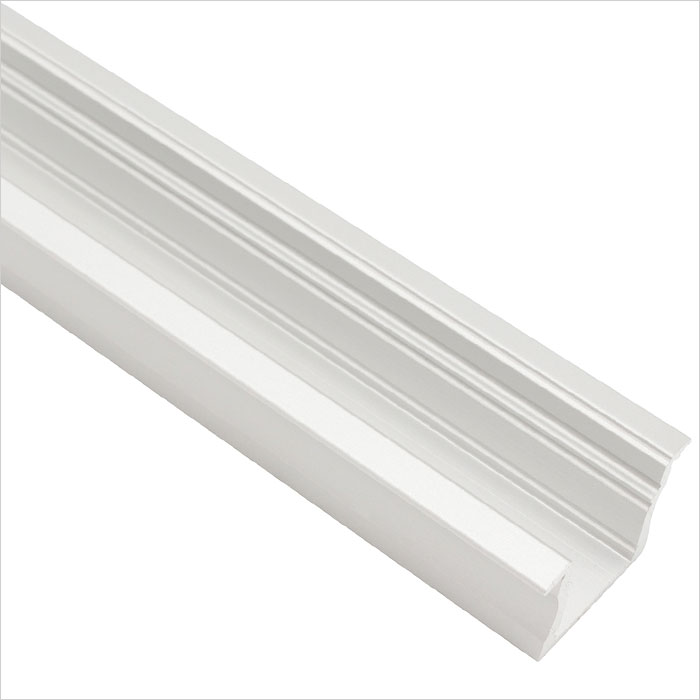

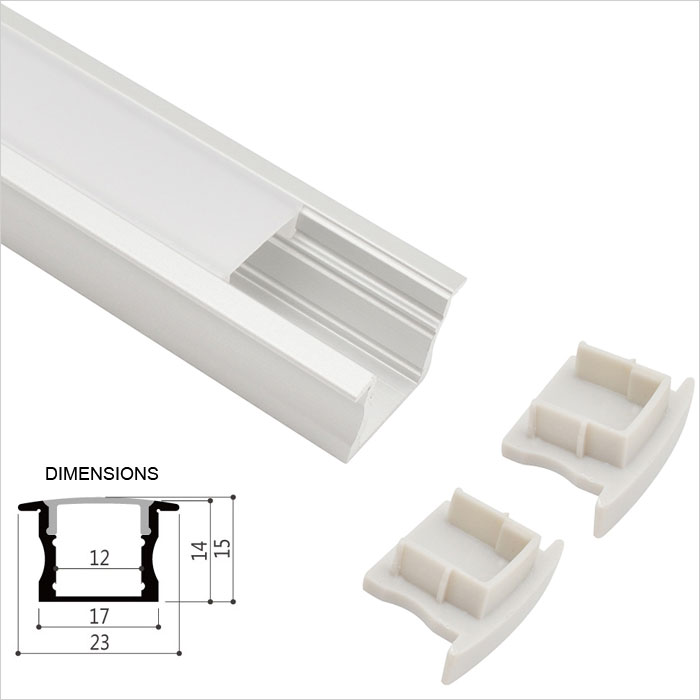

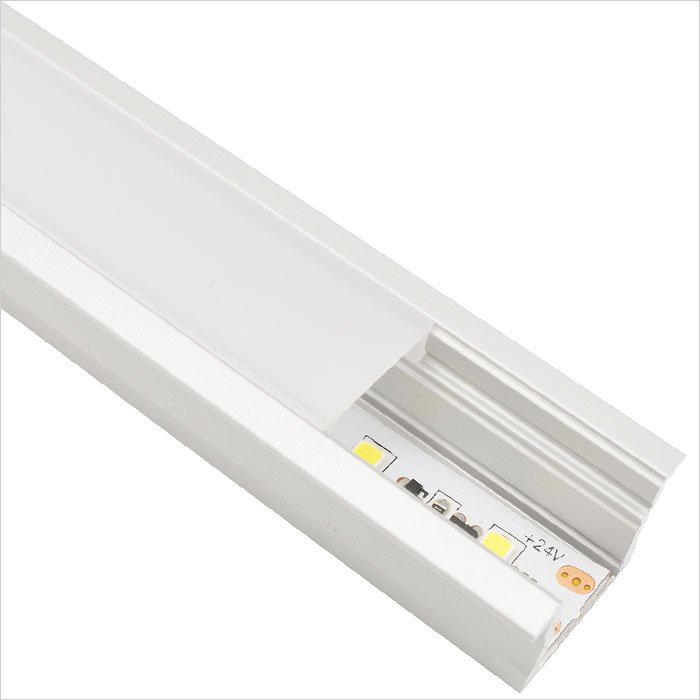

The LE2314 series LED aluminum profile housing is great for flush-mount bookshelf lighting, cupboard lighting, cove lighting, cabinet shelf lighting, desk hutch lighting, ceiling lighting, and more. This deep surface-mount LED channel provides a professional mounting solution for flexible, rigid, or linear LED strip lights that measure up to 12 mm wide. The 1m (39-3/8") or 2m (78-3/4") profile housing is constructed of sturdy anodized extruded aluminum. A clear lens is available, or choose a frosted lens for smooth lighting with no visible hot spots.

Warranties & Certifications

TECHNICAL DETAILS
Accessories:    2pcs End Caps /Single Side 4pcs Spring Clip
Material:    Aluminum

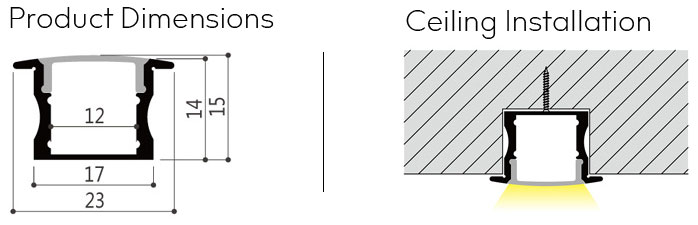

Installation:    Embedded
Standards And Certifications:    RoHS Compliant
Strip Width:    12mm
Type:    Aluminum Housing

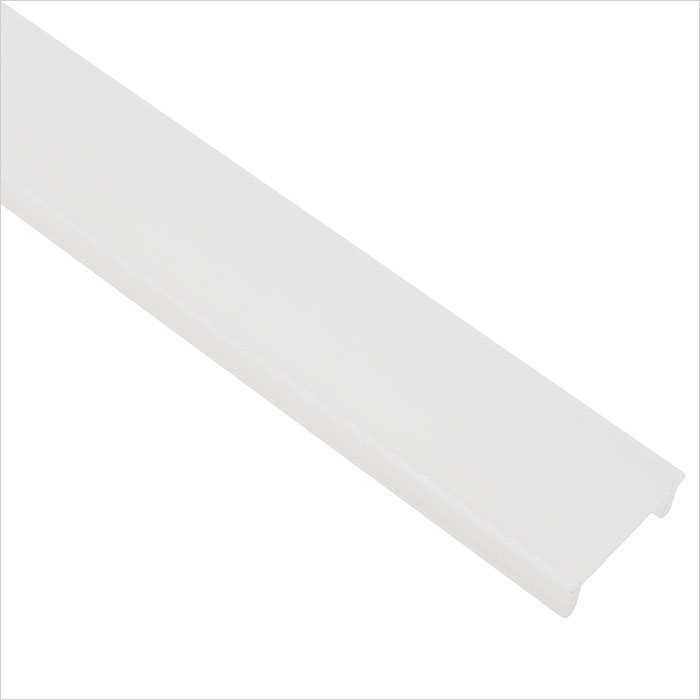

Lens:    Frosted, Clear
Finish:    Silver
All specifications are subject to change without notice.

Applications

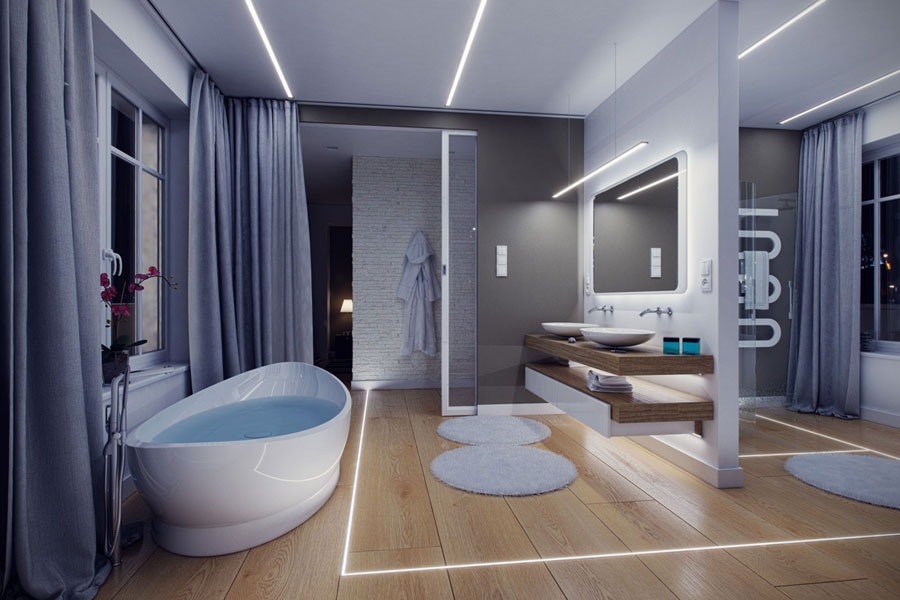

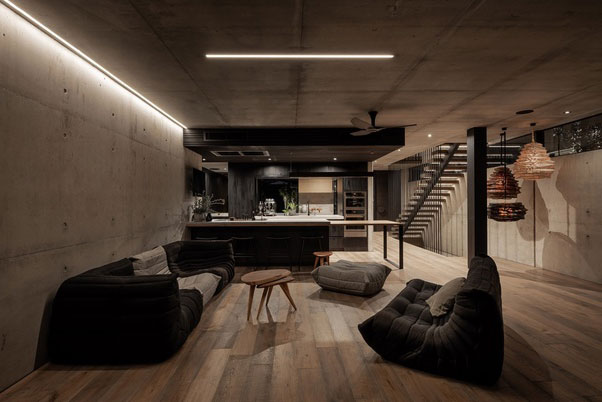

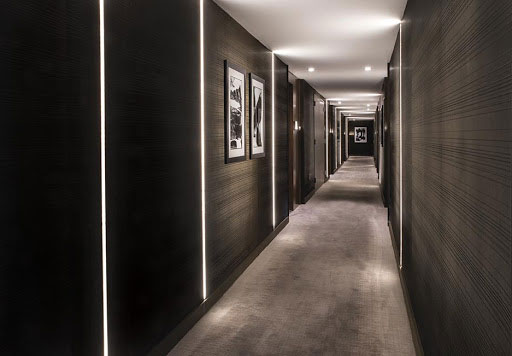

The extrusion with LED light source is mostly used as interior lighting, especially to light cabinets, stairs, glass-cases, or as a decoration light for a niche in drywall ceilings.

Advantages
Small dimensions, profile can fit slim design and thin furniture pieces, special collar of the profile enables unaesthetic grooves to be covered, (groove - a specially prepared narrow space in the wall surface, drywall, stone block etc.) easy assembly, lightweight, easily release heat, environmentally friendly
