The ALU-TW6913 series LED aluminum profile housing is durably constructed for use as a floor light, tile light, shower light, or for building facade lighting and garden lighting. This heavy-duty, low-profile LED channel provides a professional mounting solution for flexible, rigid, or linear LED strip lights that measure up to 12 mm wide. The 1m (39-3/8") or 2m (78-3/4") profile housing is constructed of sturdy extruded aluminum that can be surface mounted or flush-mounted. A frosted lens provides smooth lighting with no visible hot spots.

Warranties & Certifications

TECHNICAL DETAILS
Material:  6063 Aluminum Alloy
Surface treatment:  Anodized or Powder Coated
Color:  Silver,  Can be custom-made

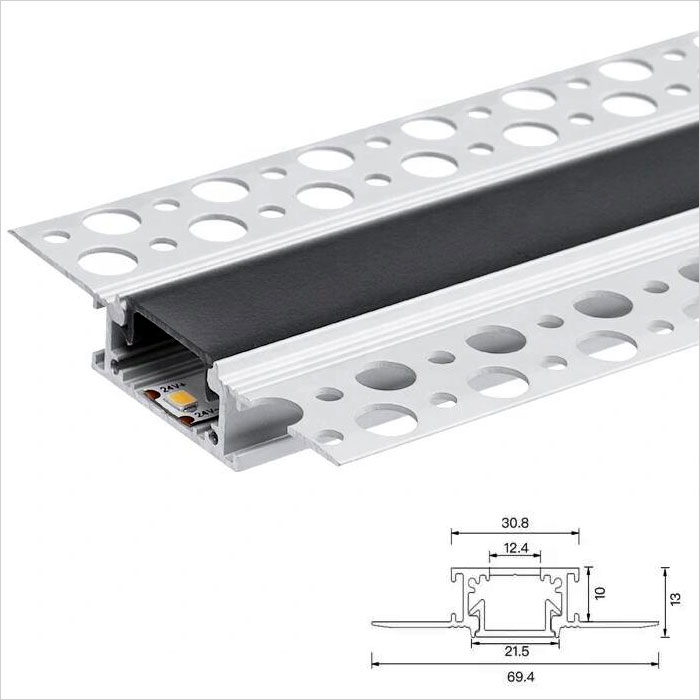

Size :  69(W)*13(H) mm

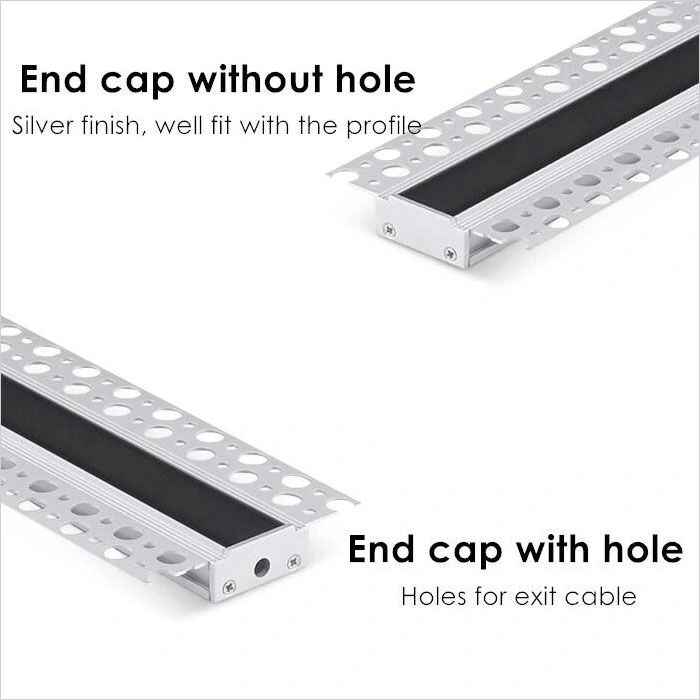

Accessories:   2 x End caps

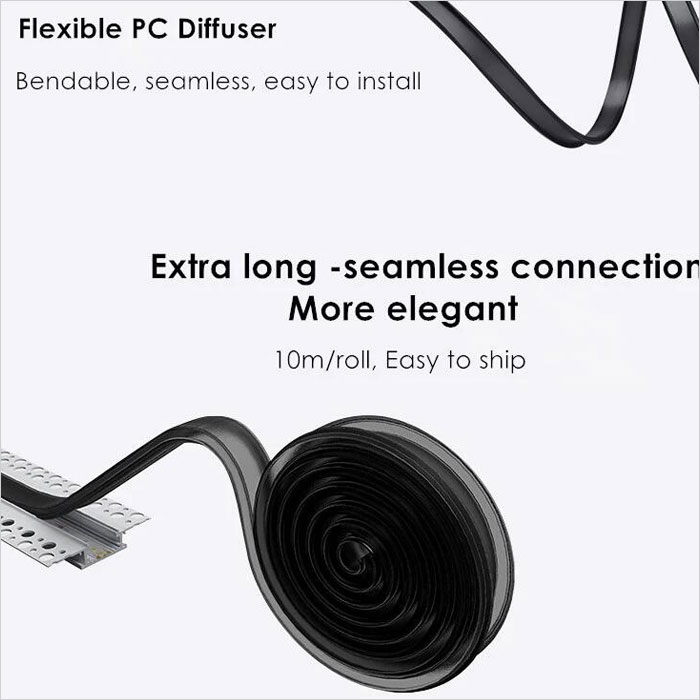

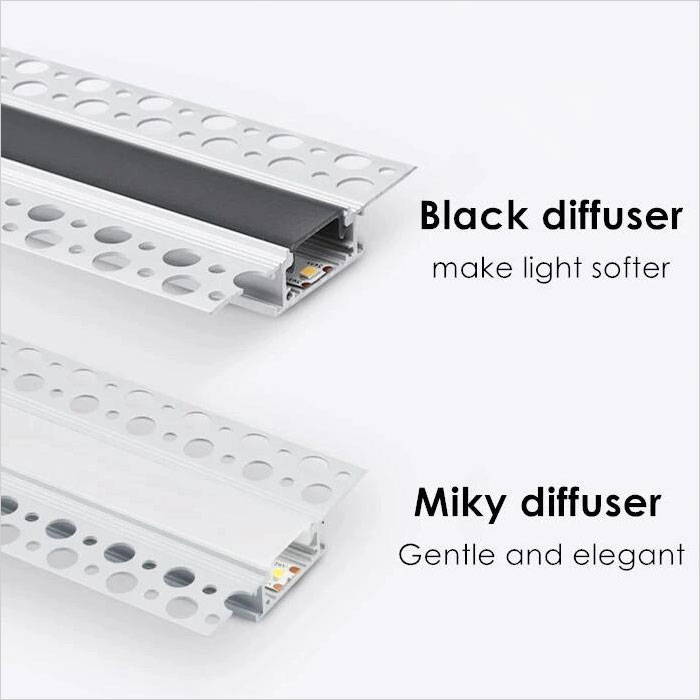

PC cover:  Frosted Diffuser(Black Diffuser/ Miky Diffuser)
All specifications are subject to change without notice.

Product Characteristics
The extrusion made from high quality aluminum is designed for flexible or rigid LED strips that are 8-12mm wide. One of the accessories offered for the extrusion is a cover that shades and protects LEDs inside the profile.

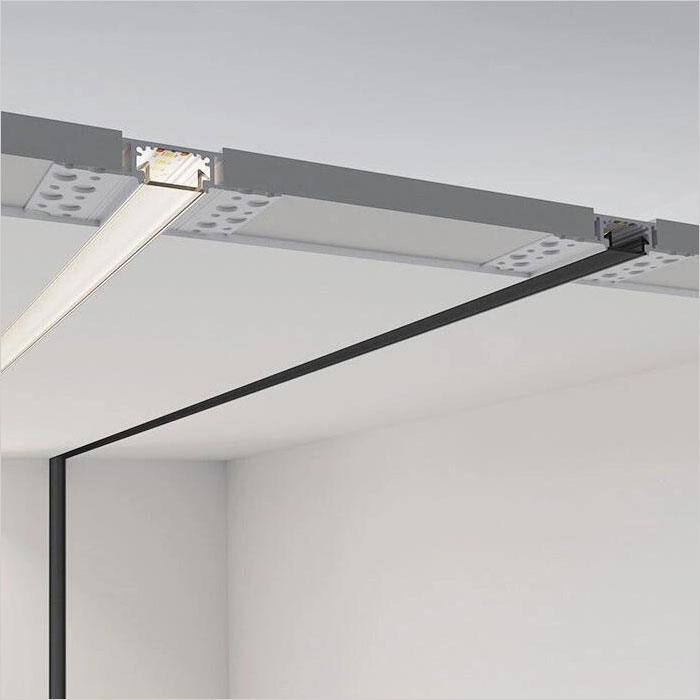

The extrusion is designed to be mounted to surfaces, such as ceramic tiles with the use of mounting adhesive. The design and parameters of LR2126 extrusion and its cover make the fixture durable and sturdy when mounted in the floor, as well as resistant to standard loads, cleaning and general floor maintenance.

Applications

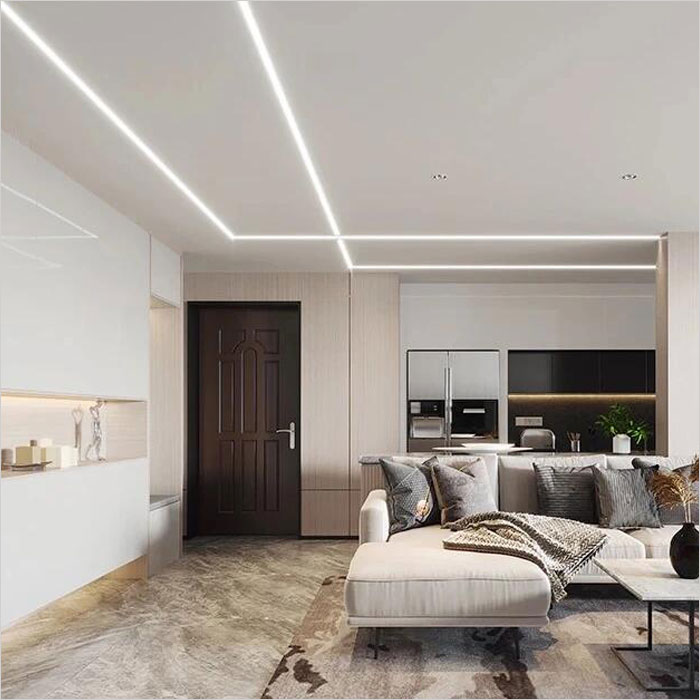

Due to its high integrity and compact size, ALU-TW6913 extrusion is ideal for use in bathroom, shower, floor applications or areas exposed to water. The extrusion is as high as the average thickness of the ceramic tile and mounting adhesive, thus it is very often mounted in floors as it integrates with the floor surface. Additionally, it can be used to illuminate exterior architectural elements, such as building facades, terraces, gardens, etc.

Advantages
Small dimensions, profile can fit slim design and thin furniture pieces, special collar of the profile enables unaesthetic grooves to be covered.
