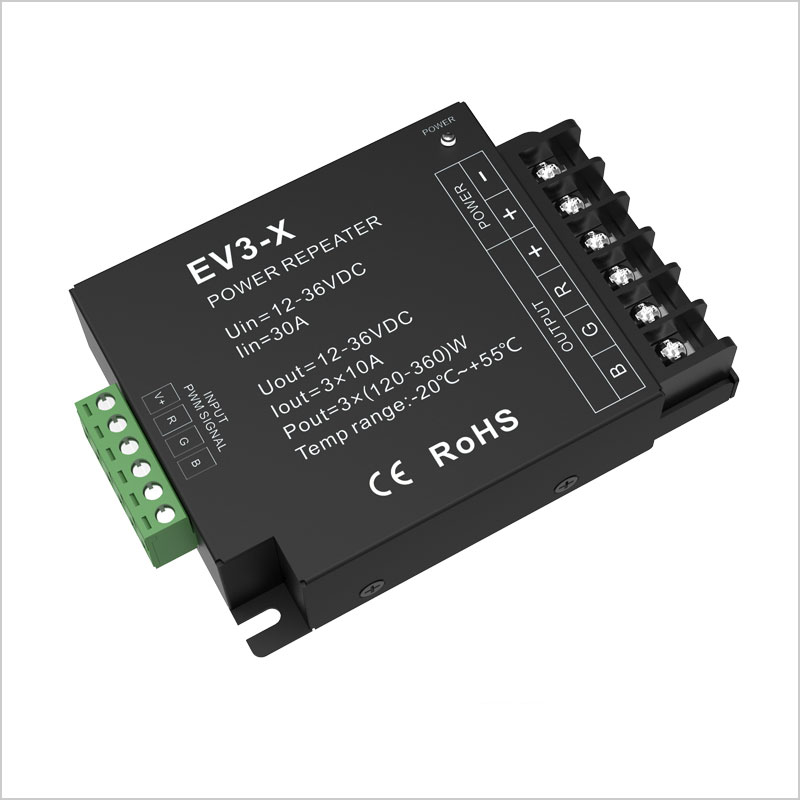

3 Channel Constant Voltage Power Repeater - 12-36V

(9 Reviews) | Write a review

SKU: PR-EV3

SmartBrightLEDs LED power repeaters is designed to receive PWM signal control and expand power output. By adding one more power repeater, the controller can control more L EDs, and unlimited power repeaters can be parallel connected together to expand power output unlimitedly theoretically, and achieve a synchronous control effect.

3 Channel /PWM signal input /Constant voltage output /3KV optoelectronic isolation

Features

12-36V constant voltage power repeater.
3 channel, 10A per channel.
To receive PWM signal control.
Power repeater in series or in parallel to expand output unlimitedly.
Apply to single color or RGB constant voltage LED strip or module.

Technical Parameters
Input voltage: 12-36VDC
Input current: 30.5A
Input signal: PWM
Output voltage: 3 x (12-36)VDC
Output current: 3CH,10A/CH
Output power: 3 x (120-360)W
Output type: Constant voltage
Certification: CE,EMC,LVD
