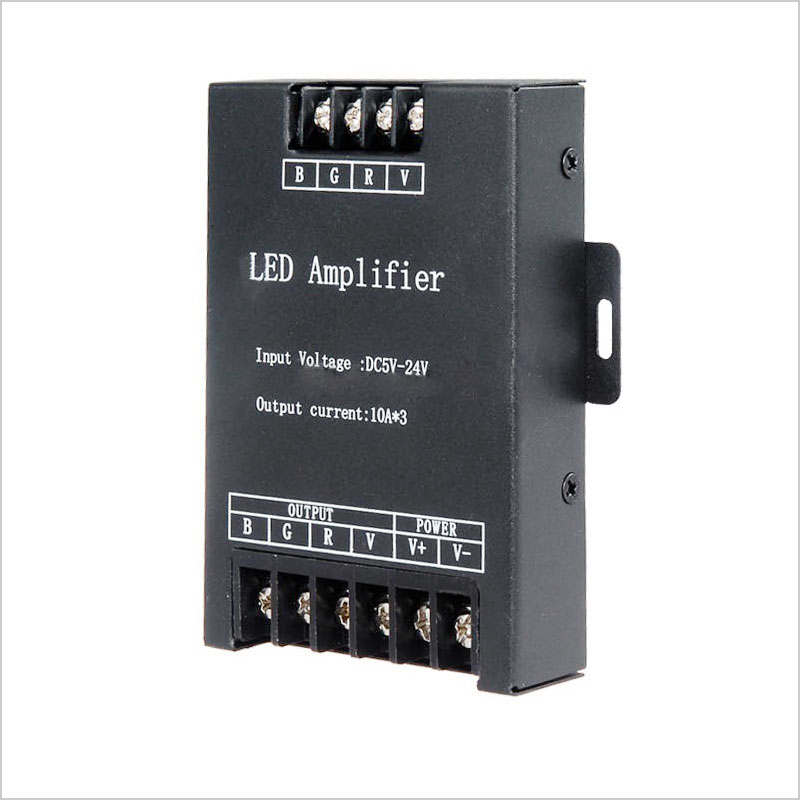

    30A 5~24 Volt DC RGB Amplifier Controller

      (6 Reviews) | Write a review
    SKU: LP-10A3C
    Discontinued
    Starting at: $27.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Mon,Mar,31 and Sun,Apr,06. order with 2days,9hrs and 31 min.

    Constant Voltage Power Repeater is suitable for all of our RGB controllers to expand power output.
    Used to extend your run of RGB 12/24v lighting product from your controller - Up to 300W@12vDC or 600W@24vDC
    Supports PWM (Pulse Width Modulation) control
    You can stack amps (2x repeaters connected = 16A/Ch)
    Input Power:  DC5V ~ DC24V
    Output Power: 120(5v) 288W (12V)  576W (24V)
    You can just connect the output of our RGB Controller (DMX or IR) to the input of this controller and connect another power supply.

    Warranties & Certifications


    TECHNICAL DETAILS
    Mounting Options:    Wall Mount, Other
    Voltage:    5v-24v
    Wattage:    10A/Ch
    Power Rating Max Amps:    3Ch @ 10A /Ch 30A Max
    Output Power:    120(5v) 288W (12V) 576W (24V)
    Number Of Chanels:    3
    Rated Amps / Ch    8A-10A:   Max 10A
    Power Input: Connection Type, Voltage, Amperage    Screw Terminal DC12V-DC24V (+)/(-) note for 12v strips use 12v input
    Output Connection Type:    Screw Terminal Strip
    Weight / Item:    380g
    Product Size: (L)x(W)x(H)    (L) 5.82" x(W) 3.42" x(H) .90" in (L148×W87×H23mm)
    Comes With:    RGB Indicators on outputs
    Available Options:    We can also get these in a constant current version 350mA and 700mA
