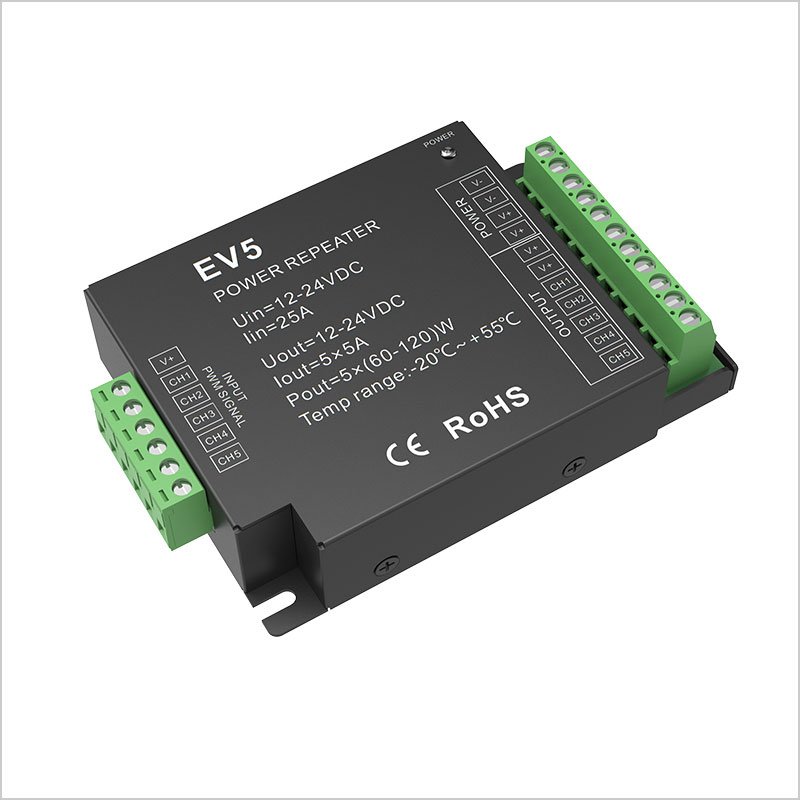

5 Channel Constant Voltage Power Repeater - 12-24V

(7 Reviews) | Write a review

SKU: PR-EV5

SmartBrightLEDs LED power repeaters is designed to receive PWM signal control and expand power output. By adding one more power repeater, the controller can control more L EDs, and unlimited power repeaters can be parallel connected together to expand power output unlimitedly theoretically, and achieve a synchronous control effect.

5 Channel /PWM signal input /Constant voltage output /3KV optoelectronic isolation

Feature

12-24V constant voltage power repeater.
5 channel, 5A per channel.
To receive PWM signal control.
Power repeater in series or in parallel to expand output unlimitedly.
Apply to RGB+CCT constant voltage LED strip or module.

Technical Parameters
Input voltage: 12-24VDC
Input current: 25.5A
Input signal: PWM
Output voltage: 5 x (12-24)VDC
Output current: 5CH,5A/CH
Output power: 5 x (60-120)W
Output type: Constant voltage
IP rating: IP20
Certification: CE,EMC,LVD
