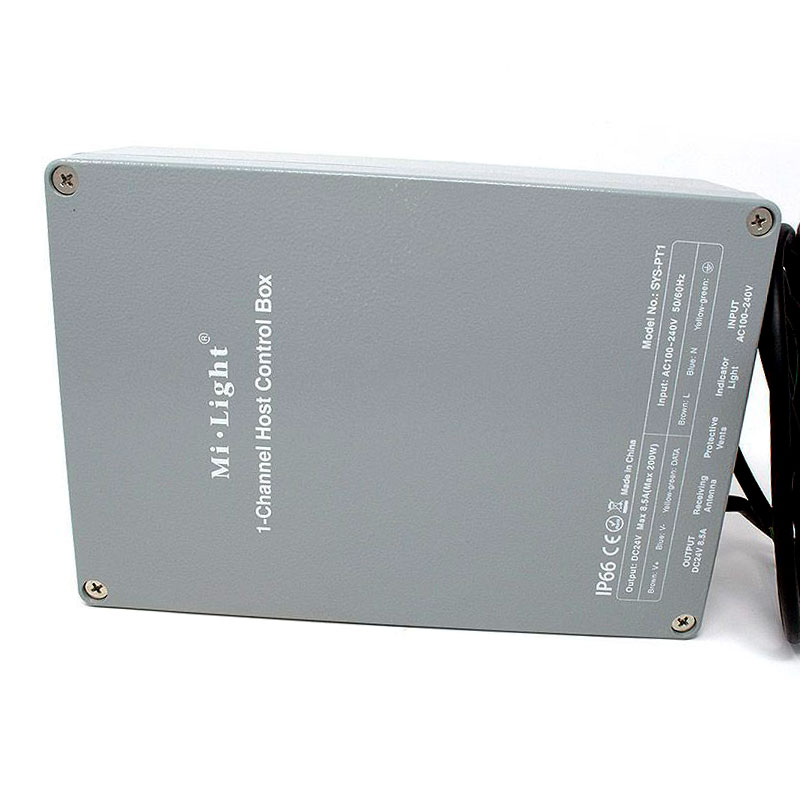

SBL-SYSPT1 Mi-Light 2.4GHz 1 Channel Host Control Box
This one zone Host Controller and 2.4GHz Receiver from Mi-Light can control up to 200w of Mi-Light SYS lighting products in a single zone. Simply connect to a 100v-240v AC 50/60Hz mains supply to the power input and then connect the 24v data output to your SYS RGB+CCT lighting products as detailed in the data sheets, then pair it to compatible 2.4GHz M-Light / Mi-Boxer RF handset or Wall Panel RF controllers. The controller will power up to a maximum of 200w of lighting, if additional lighting is required you will need to boost the power with the SYSPT2 Single zone Amplifier which you connect to the output of the Host Controller, this will allow you to expand your lighting to include additional products up to an additional 200w.
Important Note: The Host Controller and amplifier is only suitable for use with the SYS series of Mi-Light Lighting products, it will not work with other lighting products in the Mi-Light / Mi-Boxer range.
The host controller / receiver features auto transmitting & synchronising functions so when multiple host controller / receivers are paired to the same zone on the controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the receivers in the group will synchronise your lighting together with no interconnecting control cables.
In addition to being able to pair with the compatible Mi-Light controllers, the receivers can also be paired to a smartphone application and they also support third party voice control products such as smart speakers (Additional hub required for these features).
Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.
Feature
- Host Control Box
- Smartphone Compatible
- 30m signal transmitting and synchronization between receivers
- Quick and easy to pair with handsets and wall panels
Technical Specification
Manufacturer: Mi-Light / MiBoxer
Product Type: Controller / Receiver
IP Rating: IP66 Splashproof
Guarantee Period: 5 Years
Current: Max 8.5A Output
Input Voltage: 100v - 240v AC
Output Voltage: 24v DC
Connectivity: RF
Size: L184mm x W81mm x H263mm
Dimmable: No
Wireless Range: Up to 30 metres
Transmitting Power: 6dBm
Operation Frequency: 2.4GHz
Operating Temp: -20~60°C
Total Output: Max 8.5A
Output Max: Max 200W
