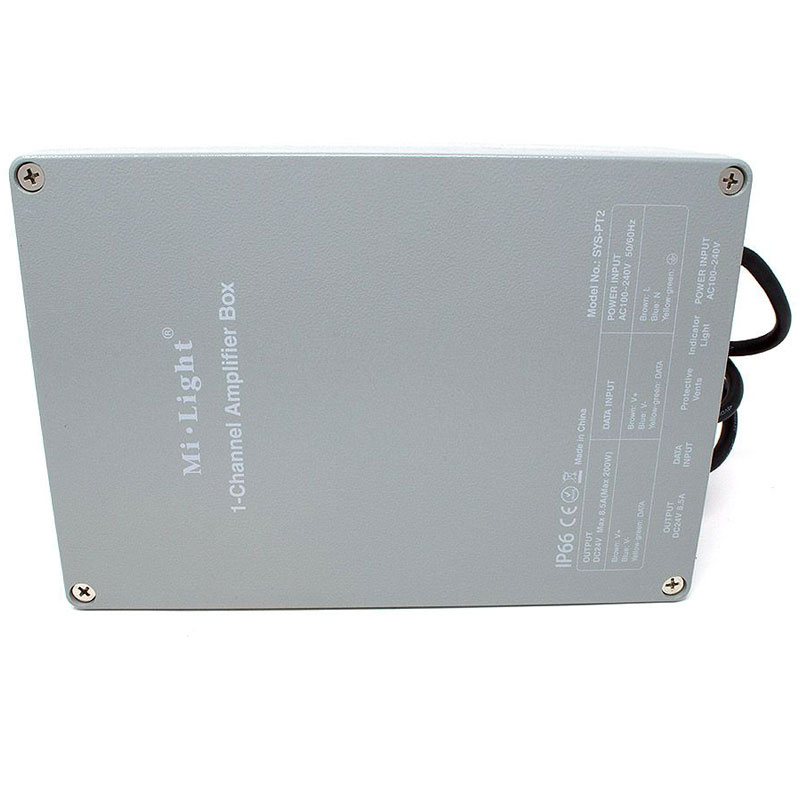

This one zone power and signal amplifier is designed to expand the capabilities of your SYSPT1 host controller to power additional SYS Lighting products in a single zone up to 200w (8.5A).  Simply connect a 100v-240v AC 50/60Hz mains supply to the power input connections, connect an input signal cable from the SYSPT1 Host Controller, then connect the 24v data output to your additional SYS RGB+CCT lighting products as detailed in the data sheets.   The power and signal amplifier will then control additional sets of SYS lighting products, effectively expanding your Host Controllers capabilities, doubling the amount of lighting that you can power.
Important Note: The Host Controller and amplifier is only suitable for use with the SYS series of Mi-Light Lighting products, it will not work with other lighting products in the Mi-Light / Mi-Boxer range.
For information on the SYSPT1 Host Controller please download the data sheet off our website for the Host Controller which will give wiring details and full information on the products that it is compatible with.

Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.

Feature

1. SYS Amplifier Box
2. Smartphone Compatible
3. 30m signal transmitting and synchronization between receivers
4. Quick and easy to pair with handsets and wall panels

Technical Specification
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP66 Splashproof
Guarantee Period:    5 Years
Input Voltage:    100v - 240v AC
Output Voltage:    24v DC
Connectivity:    RF
Size:    L184mm x W81mm x H263mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    -20~60°C
Total Output:    Max 8.5A
Output Max:    Max 200W
