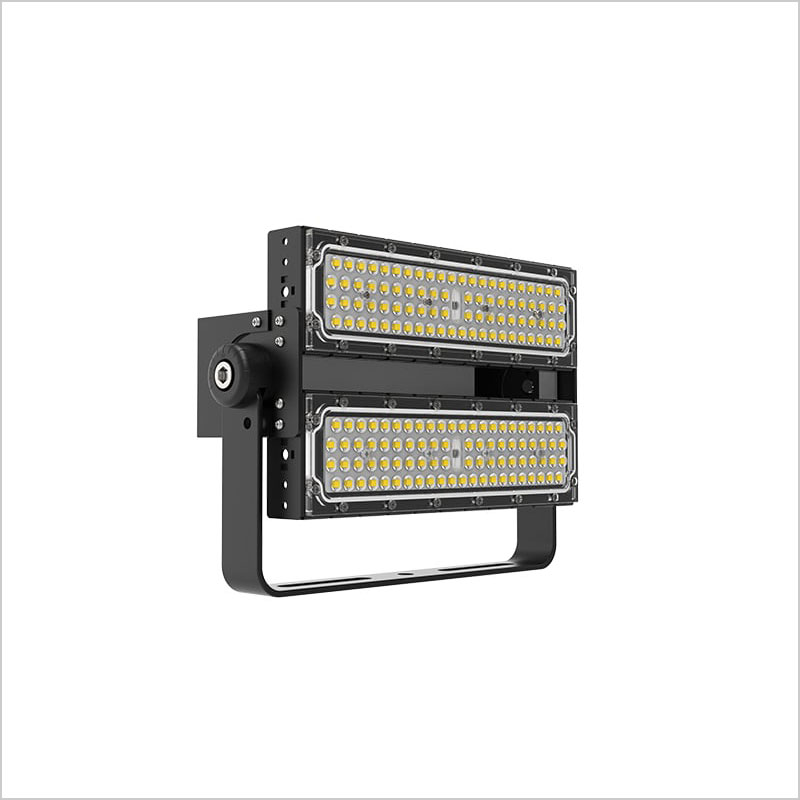

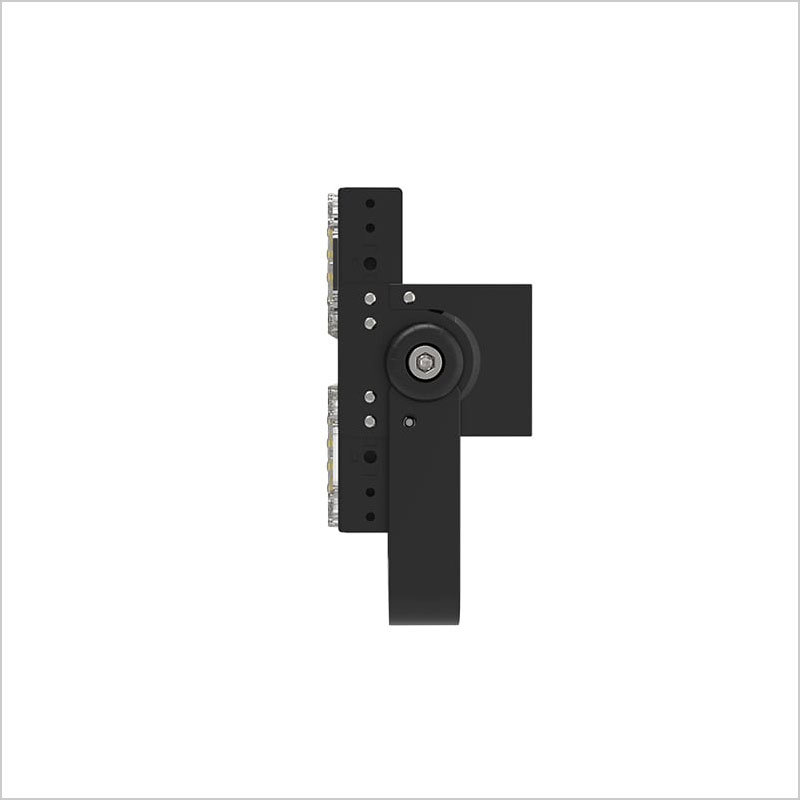

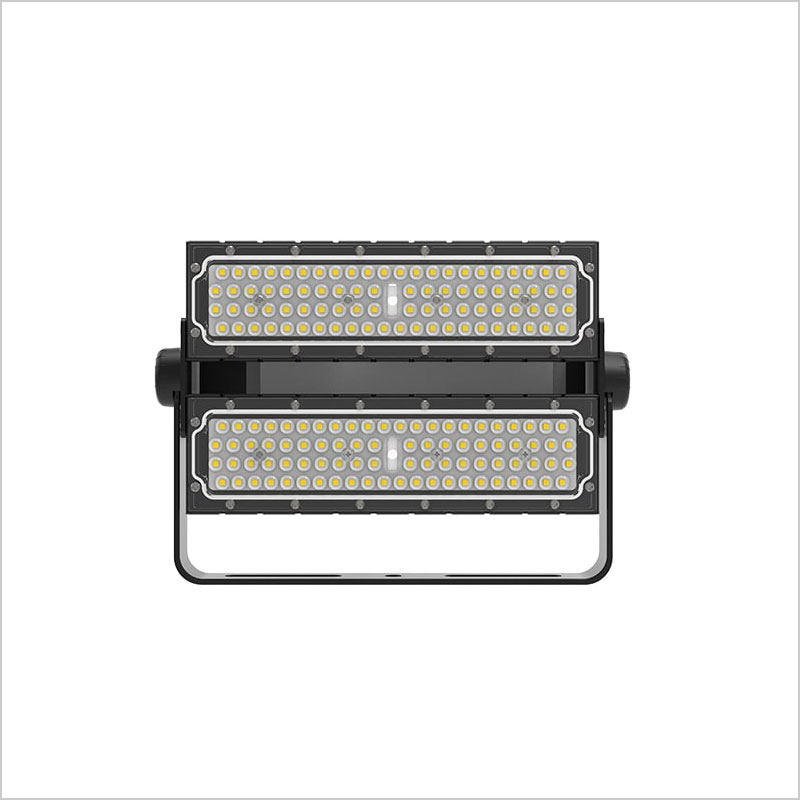

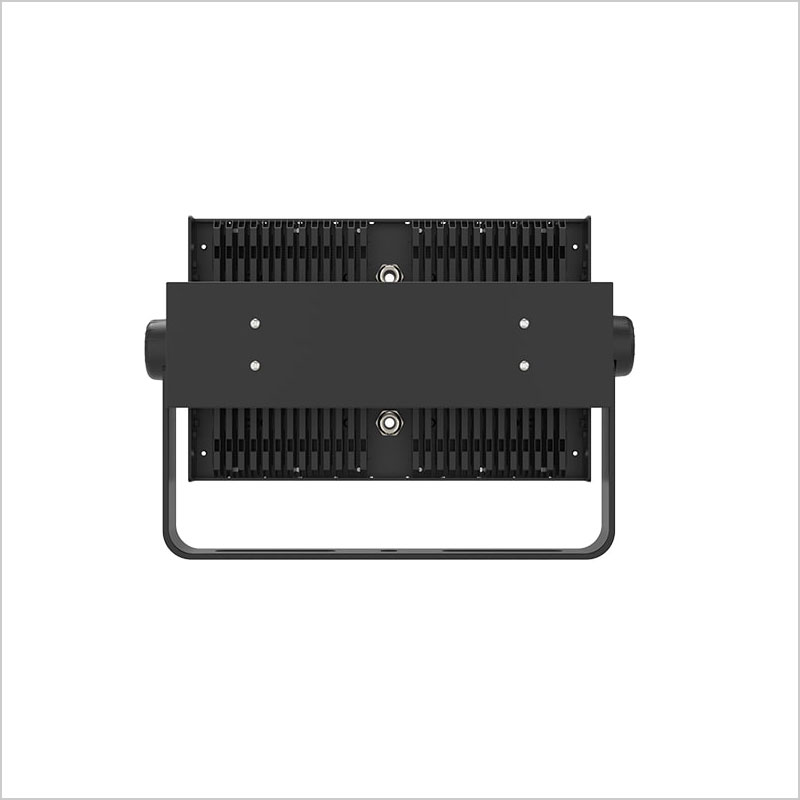

100W LED Area Light - 250W Equivalent - Dimmable - 17000 Lumens - Outdoor IP66 Floodlight Wholesale
Perfect for parking lot lighting, high-bay lighting, street lighting, car dealerships, stadiums, tunnel lighting, outdoor sports areas, campuses, and parks—this LED area light shines brightly when reliability and performance are critical. Using 168 LEDs, the area light emits 17,000 lumens of powerful cool white (4500-5500K) illumination in a 90° or 120° beam pattern. This 100-watt LED light is comparable to a 250-watt metal-halide (MH) fixture. And with a life expectancy of 100,000 hours—5 times as long as MH fixtures—the LED light reduces costly repairs and the need for replacements. A weatherproof black aluminum alloy housing protects internal components and is powder coated to resist rust. Shock- and UV-resistant polycarbonate lenses protect LEDs. The durable LED fixture comes with an adjustable yoke mount or can be used with one of many other mounting options (sold separately) for walls, ceilings, round or square poles, and suspended chain installation. This LED area light is equipped with a constant-current driver and operates within a wide 100-277V AC range.
Feature:
1.Waterproof IP66 - Adopt sealing potting process, better waterproof performance;
2.Module Rotatable - The angle of the lamps can be adjusted according to equirements to achieve the best lighting angle;
3.Efficient Heat Dissipation - Folding Aluminum Fin Design.lighter weight, better heat dissipation performance;
4.High quality LED Chip - Use Lumileds 3030 high quality lamp beads.Light efficiency can reach 170Lm/w;
Warranties & Certifications
Dimensional Drawings:
Specifications
Beam Angle: 90 degree/ 120 degree
Dimmable: Yes
Efficacy: 170 lm/w
Environmental/IP Rating: Weatherproof IP66
Finish: Black
Gauge: 18 AWG
Chip Brand: Lumileds 3030
Input Connection Type: Pigtail
Input Frequency Range: 50 ~ 60 Hz
LED Lifetime: 100000 Hours
Lens Type: Clear
Size: 306.6*216.5*104mm
Microwave Motion Sensor: Optional
Mount Type Yoke
Number of LEDs in Unit: 168 LEDs
Operating Temperature: -30~+45 °C (-22~+113 °F)
Operating Voltage Range: 100~277 VAC
Output Equivalency: 250 Watt Metal-Halide
Photocell: Without Photocell
Product Materials: Aluminum
Wattage: 100 Watts
Certifications/Compliance: CE, DLC, ETL Listed, LM-79 and LM-80, RoHS Compliant, TUV
All specifications are subject to change without notice.
Beam angle
The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 15/25/40/60/90120/30*70/49*21/136*78 degree beam angle.
Installation & Application
If you want to know more details about the product, or need to provide lighting design for your venue, please feel free to contact us.
