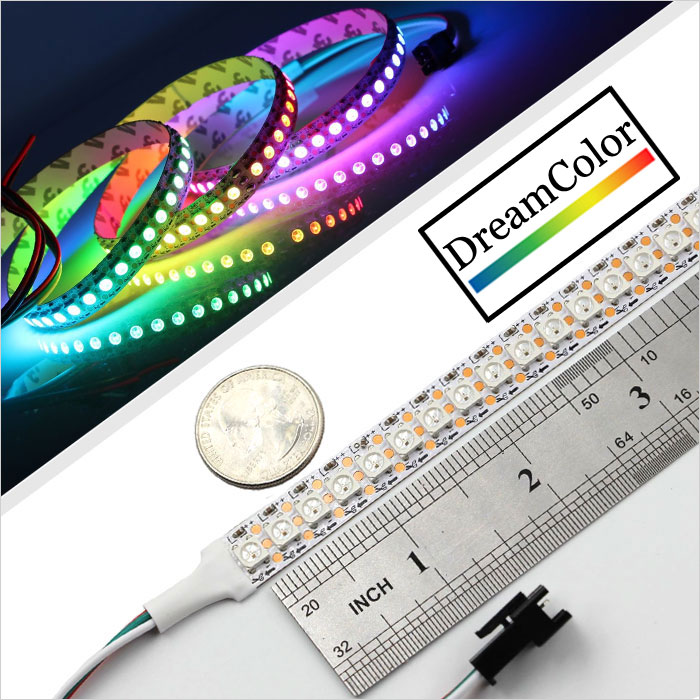

    1m WS2812B Digital RGB LED Strip Light - 144 LEDs/m - Addressable Color-Chasing LED Tape Light - 5V - IP20

      (6 Reviews) | Write a review
    SKU: S2812-144-RGB-V5-NWP

    Please Choose:





    Discontinued
    Starting at: $49.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    This LED strips are even more fun and glowy. There are 144 RGB LEDs per meter, and you can control each LED individually! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel). The LEDs are controlled by shift-registers that are chained up and down the strip so you can shorten or lengthen the strip. Only 1 digital out pin is required to send data. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.
    If you order an RGB flexible light strip, you will need a RGB controller.

    Features:

    1. 5V input
    2. Maximum run up to 5m
    3. Strip width measures 12mm
    4. 3M™ adhesive backing for surface mounting
    5. 0-100% dimmable
    6. Lifetime exceeds 50000 hours
    7. CE certified
    8. Lifetime warranty

    Warranties & Certifications

    Application & Use
    Color Controllable Cove lighting, Signage, Backlighting, Edge lighting, Under cars and motorcycles, Store display lighting, Hotel lobbies, Architectural displays, Patio and barbecue areas, Backyard arbors and gazebos, Under cabinet lighting, Outside in signs and under rooftops, Fence lighting, Above Fish tanks , High splash areas.


    TECHNICAL DETAILS

    Voltage 5V DC
    Color Temperature Color Chasing RGB LED
    LED Type 5050 SMD
    LED Density 144LEDs/m
    PCB Width 12MM (0.47in)
    Dimmable Yes (requires Trulux controller)
    IC Model WS2812B
    Measured Power (w/m) 20 W/m
    Cuttable Segments 1 LED/6.9 mm
    Maximum Run 5M
    Rated Lifespan 50,000 hours
    Length 1M
    Dimmable Yes (requires Trulux controller)
    Operating Temperature -20~+45 °C (-4~+113 °F)
    Standards And Certifications CE, RoHS Compliant, UL Listed

    **All specifications are subject to change without notice.


    Other Flex Digital LED Strip Lights

    Incorrect Use:

    Use of environmental conditions
    1). LED strips installation must be operated by professionals.
    2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
    3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
    4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
    5). Please do not strongly pull、crash the LED strips during  installation  process. And avoid squeezing and scratching LED strips with sharp objects.
    6). During the warranty period, only defective products are acceptable to be replaced by the factory.  Factory is not responsible for other expenses because of replacement,such as transportation fee, installation fee, etc.



                                                                                                                                                 Cautions
    1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED.
    2. For better lighting effect of the product, each 5 meters strip must connect the main power source.
    3. Must guarantee that each power source (GND) must be connected.
    4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break.
    5. Please follow the user manual for installation.
    6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety.
    7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED.
    8. Installs as far as possible the product in the appropriate environment.
    9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

    ** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
