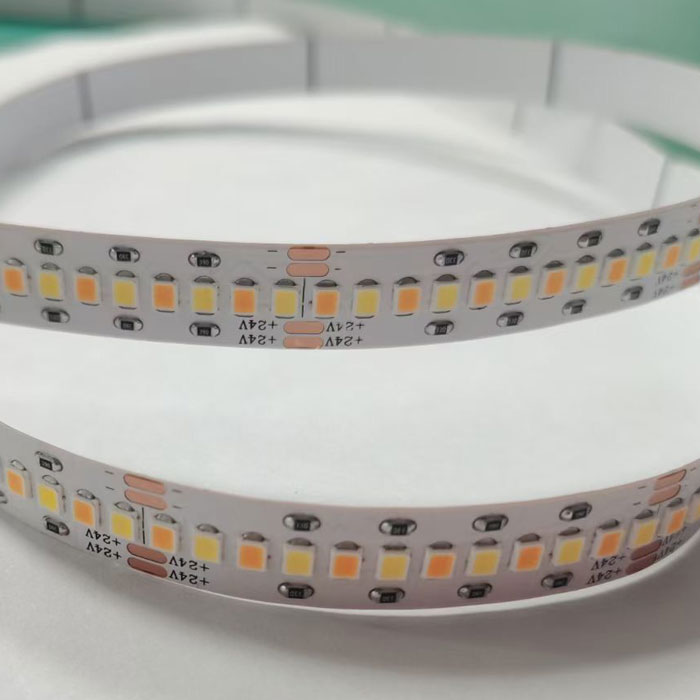

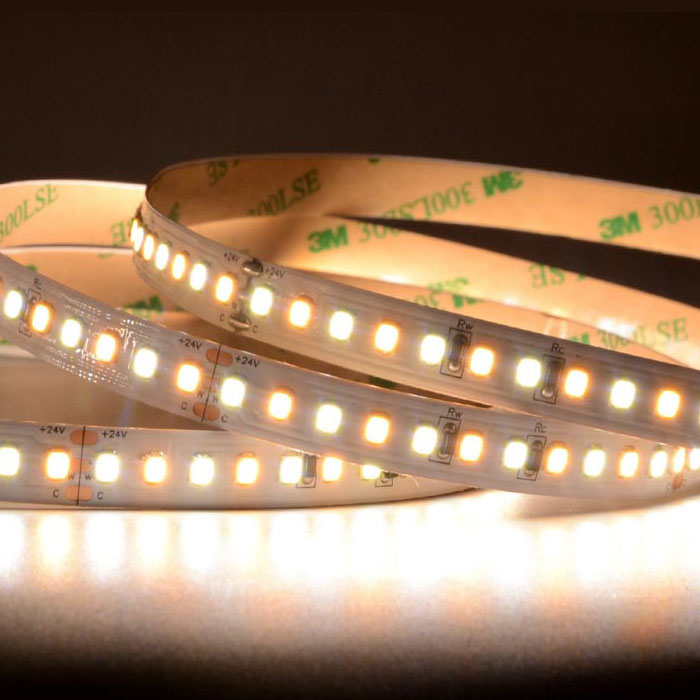

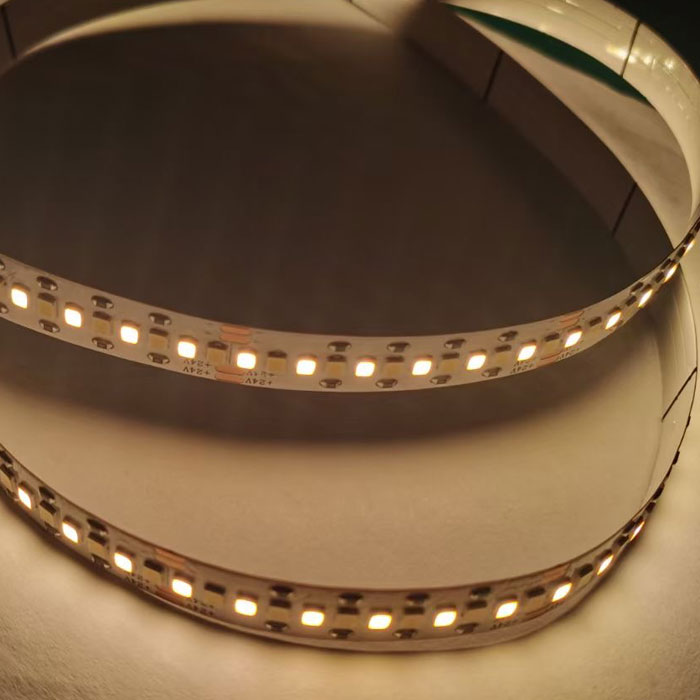

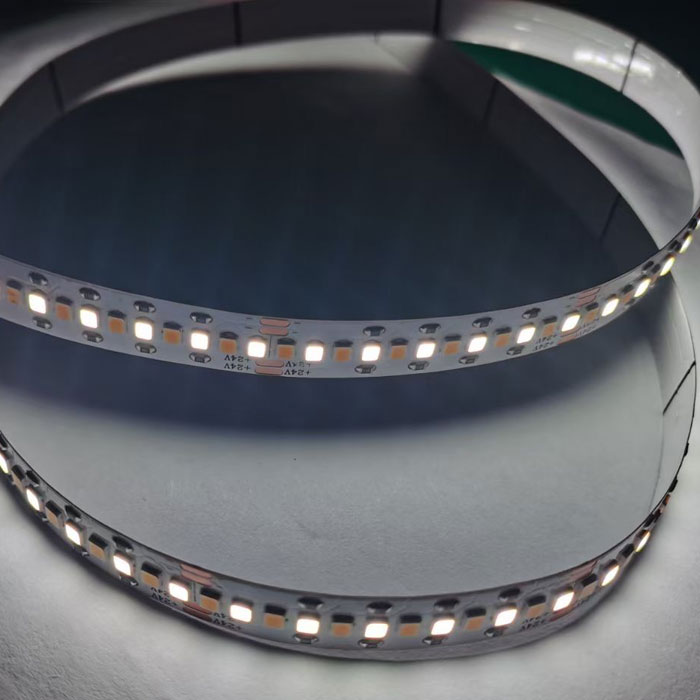

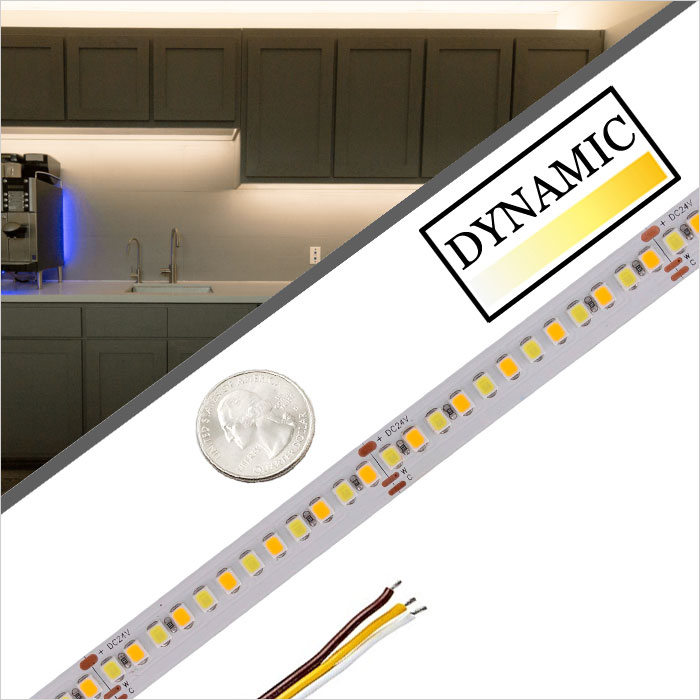

    5m 2835 SMD Tunable White LED Strip Light - Color-Changing LED Tape Light - 24V - IP20

      (5 Reviews) | Write a review
    SKU: A2835-168-CCT-V24-5M
    Discontinued
    Starting at: $89.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Nov,23 and Fri,Nov,29. order with 2days,9hrs and 31 min.

    A top choice for interior ambient lighting, this tunable LED strip light emits vibrant white light in temperatures ranging from 2700K warm white to 6500K cool white. Adjust color temperature with precision and ease. Peel-and-stick 3M™ adhesive backing enables fast, easy mounting. Backed by a lifetime warranty.
    If you order an Tunable White LED Strip Light, you will need a Color Temp Controllers.

    Features:

    1. 24V input
    2. Strip width measures 10mm
    3. 3M™ adhesive backing for surface mounting
    4. Pigtail connection
    5. 0-100% dimmable
    6. Lifetime exceeds 50000 hours
    7. CE certified
    8. Lifetime warranty

    Available Colors CCTs

    Warranties & Certifications

    Application & Use
    Linear lighting, Hotel room accenting, Cove lighting, Backlighting, Cabinets and shelving, Signage, Under cabinet task lighting, Architectural lighting, Above cabinet lighting.

    Should you select 12 Volt (12v) or 24 Volt (24v)?
    Depends on your application. The main difference between the two is the fact that the 24v strips can be ran for longer distances than the 12v strips can due to Voltage Drop. Voltage drop is the gradual decrease in voltage along a circuit. If your project requires a very long run of LEDs, we would recommend the 24v strips. However, there are also many projects that 12v is required (automotive or marine applications). Please feel free to live chat with us, or email us with questions.
    Before noticing any unwanted color variations or dimming at the end of your run of lights, it is recommended that you run no more than 32' in series when using 12v or 48' in series when using 24v.


    TECHNICAL DETAILS

    Brightness 457 lm/ft
    Color Temperature 2700~6500 K
    Connection Type Pigtail
    IP Rating Non-Weatherproof
    CRI 80+
    LED Beam Angle 120 degree
    LED Color Tunable White
    LED Density 168 LEDs/M
    LED Quantity 840 LEDs
    LED Type 2835 SMD
    Rated Lifespan 50,000 hours
    Length 16.4ft (5m)
    Dimmable Yes (requires Trulux controller)
    Lumen 7500 Lumen
    Minimum Cut Length 100mm (3.9in)
    Strip Width 10mm (0.39in)
    Wattage 15 W/M
    Wattage Total 75 Watts
    Operating Temperature -20~+45 °C (-4~+113 °F)
    Standards And Certifications CE, RoHS Compliant

    **All specifications are subject to change without notice.

    Why choose Dynamic Tunable White LED strip lights?
    Full control over specific CCT (shades of white)
    These Dynamic Tunable lights give you full control over what specific shade of white you want at any time. You no longer have to worry about finding the exact replacement to match with existing lighting colors. You can match existing lighting that is in the same area by using the remote to change the LED strip's CCT setting until you find the perfect match. Set, then forget!

    For your health
    Lighting is not only important in its function of general illumination and brightness. Lighting color, purity, and CCT can affect our emotions, health, and sleep patterns. High CCTs like the midday sun help us stay awake and focused. However, at night, our circadian rhythm (internal clock) can be interrupted by our constant use of high CCT man-made lighting (think about using your bright phone screen at night in bed). Disruptions in this rhythm can result in health issues such as obesity, cardiovascular and neurological problems like sleep disorders. Researchers have found that CCTs above 5500K (containing a high amount of blue light) can disrupt our circadian rhythm by keeping us up when we should naturally be sleeping.

    Tunable white LED lighting enables us to return to our natural circadian rhythm by giving us that range of lighting in either our homes or in the workplace. In the daytime when you need to focus, you can change the lighting to 6000K while in the evening before bed, you can decrease the CCT to 2700K, promoting the natural release of melatonin to help you sleep.

    Set the mood
    Lighting and emotion goes hand in hand. The ability to control your bedroom lighting from a functional 4200K during the morning/mid-afternoon to a calming 2700K will not only help you sleep better, it will turn your bedroom into a place you love to relax in again. High-end hotels have been using this technology for years to better the experiences of their clients in their temporary homes. Bars and restaurants love this feature to be able to change ambiance as the sun goes down.


    Incorrect Use:

    Packaing Diagram

    Use of environmental conditions
    1). LED strips installation must be operated by professionals.
    2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
    3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
    4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
    5). Please do not strongly pull、crash the LED strips during  installation  process. And avoid squeezing and scratching LED strips with sharp objects.
    6). During the warranty period, only defective products are acceptable to be replaced by the factory.  Factory is not responsible for other expenses because of replacement,such as transportation fee, installation fee, etc.



                                                                                                                                                 Cautions
    1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED.
    2. For better lighting effect of the product, each 5 meters strip must connect the main power source.
    3. Must guarantee that each power source (GND) must be connected.
    4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break.
    5. Please follow the user manual for installation.
    6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety.
    7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED.
    8. Installs as far as possible the product in the appropriate environment.
    9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

    ** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
