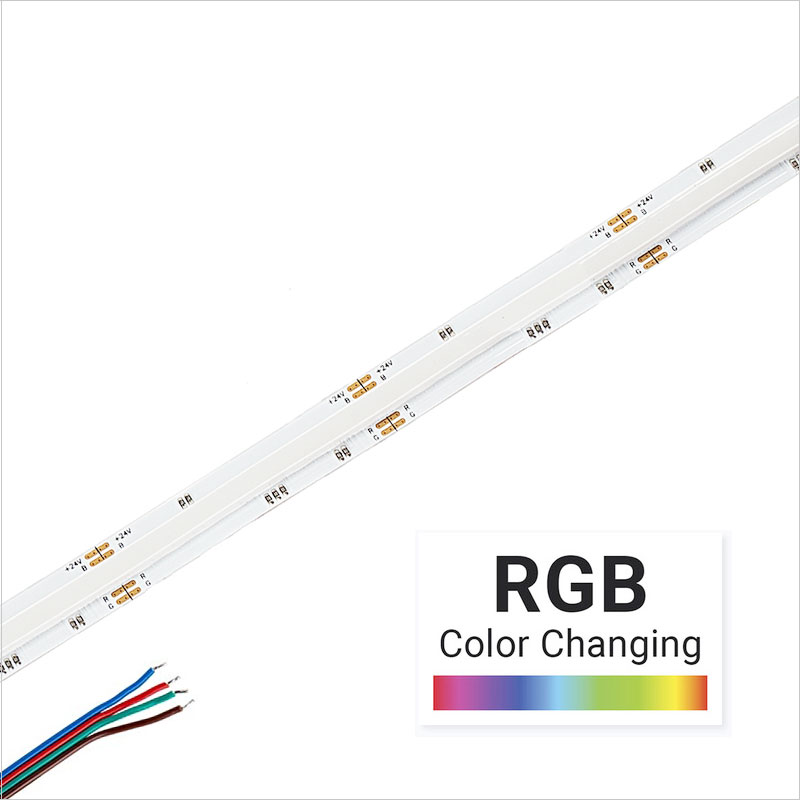

    5m Colorful RGB COB LED Strip Light - COB Series LED Tape Light - 24V - IP20

      (5 Reviews) | Write a review
    SKU: STN-RGB-O63Ax12R-24V-5m
    Discontinued
    Starting at: $296.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    COB series LED Strip Light uses chip-on-board technology to create continuous colorful RGB lighting. The high density of LEDs produces a seamless linear light without the need of a diffused cover. Dotless illumination is ideal for reflective surfaces such as granite countertops, tile floors, and more. Flexible construction and 3M™ adhesive backing make it easy to install, including on round surfaces and edges. Pair with a controller (sold separately) to customize color tone and settings. Also available Tunable White COB LED Strip Lights.

    Product Details:

    • 3M™ adhesive backing for surface mounting
    • Max Run: 16.4ft (5m)
    • Strip width measures 12mm
    • 0-100% dimmable
    • 180° beam angle
    • 4-wire pigtail connection
    • Cuttable segment length: 2.19 in. (55.55 mm)
    • UL Listed
    • 5 year warranty

    Warranties & Certifications

    Application & Use
    SmartBrightLEDs White Series LED strip lights are installed in a wide variety of applications including:
    TV backlighting, Linear lighting, Cove lighting, Display / jewelry case lighting, Bar and restaurant accent lighting, Above cabinet lighting, Under counter lighting, Hotel lobbies, Cove lighting


    Specifications
    Certifications/Compliance:    UL Listed
    Current Draw:     3.13A (3130mA)
    Current Draw Per Foot:    191mA
    Dimmable:    Yes
    Environmental Rating:     Non-Weatherproof IP20
    Input Connection Type:    Pigtail
    LED Beam Angle:     180°
    LED Color:    RGB
    LED Density:     345 LEDs/ft (1134 LEDs/m)
    LED Type:    COB (flexible)
    LEDs per Segment:    63
    Length:    16.4ft (5m)
    Max Run:     Up to 16.4ft (5m)
    Minimum Cut Length:    55.55mm (2.19in)
    Operating Temperature:    -20~+40 °C (-4~+104 °F)
    Operating Voltage:     24 VDC
    Power Consumption:    75 Watts
    Product Weight:    0lb 6.4oz (0.18kg)
    Rated Life (L70):    30000 Hours
    Strip Width:    12mm (0.47in)
    Type:    Flexible Light Strips
    Wattage per Foot:    4.6 W/ft
    Wire Gauge:    22 AWG
    Wire Length:    18.5in(47cm)
    Package Weight: 6.4oz (0.18kg)
    Package Dimensions: 9.38" (24cm) x 8.5" (22cm) x 0.5" (1cm)
    All specifications are subject to change without notice.


    Incorrect Use:

    Packaing Diagram

    Use of environmental conditions
    1). LED strips installation must be operated by professionals.
    2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
    3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
    4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
    5). Please do not strongly pull、crash the LED strips during  installation  process. And avoid squeezing and scratching LED strips with sharp objects.
    6). During the warranty period, only defective products are acceptable to be replaced by the factory.  Factory is not responsible for other expenses because of replacement,such as transportation fee, installation fee, etc.



                                                                                                                                                   Cautions
    1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED.
    2. For better lighting effect of the product, each 5 meters strip must connect the main power source.
    3. Must guarantee that each power source (GND) must be connected.
    4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break.
    5. Please follow the user manual for installation.
    6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety.
    7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED.
    8. Installs as far as possible the product in the appropriate environment.
    9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

    ** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
