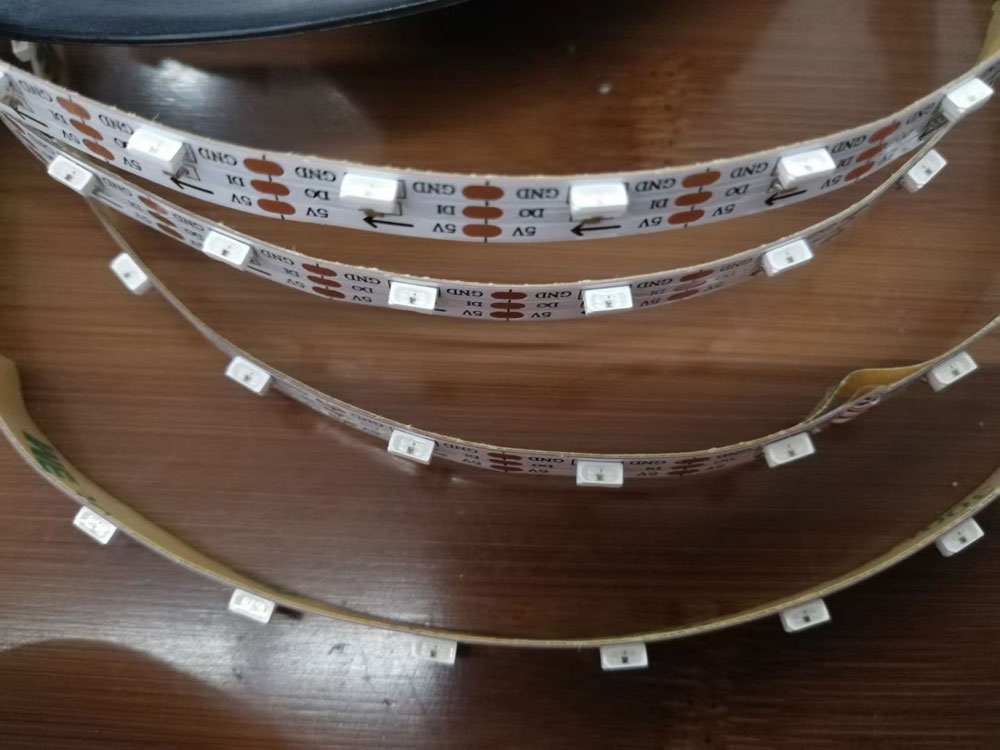

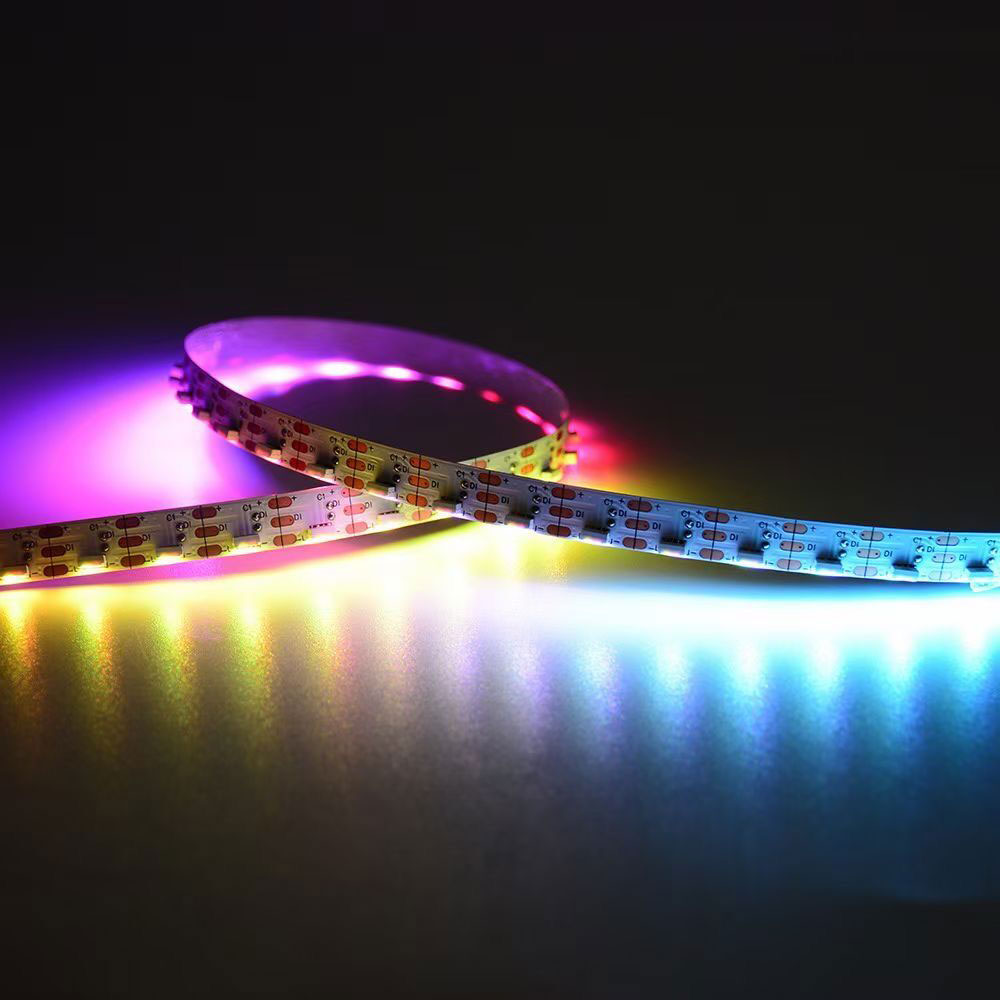

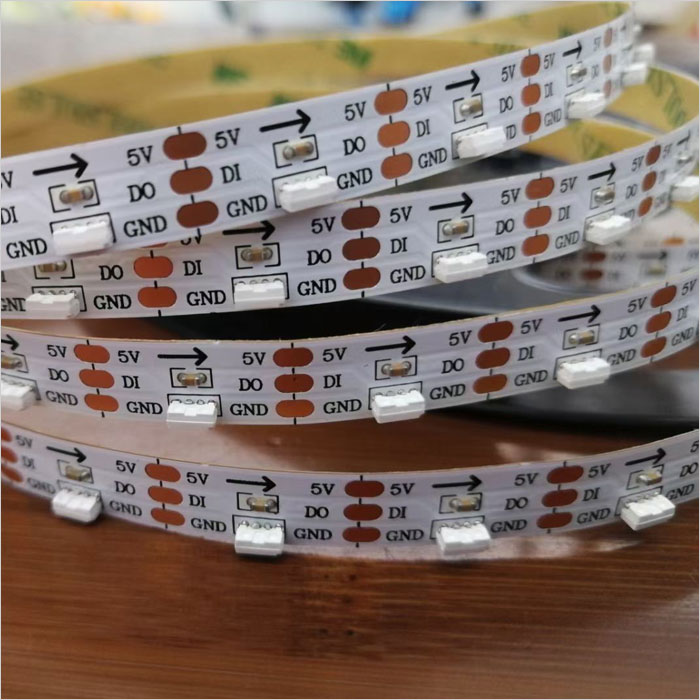

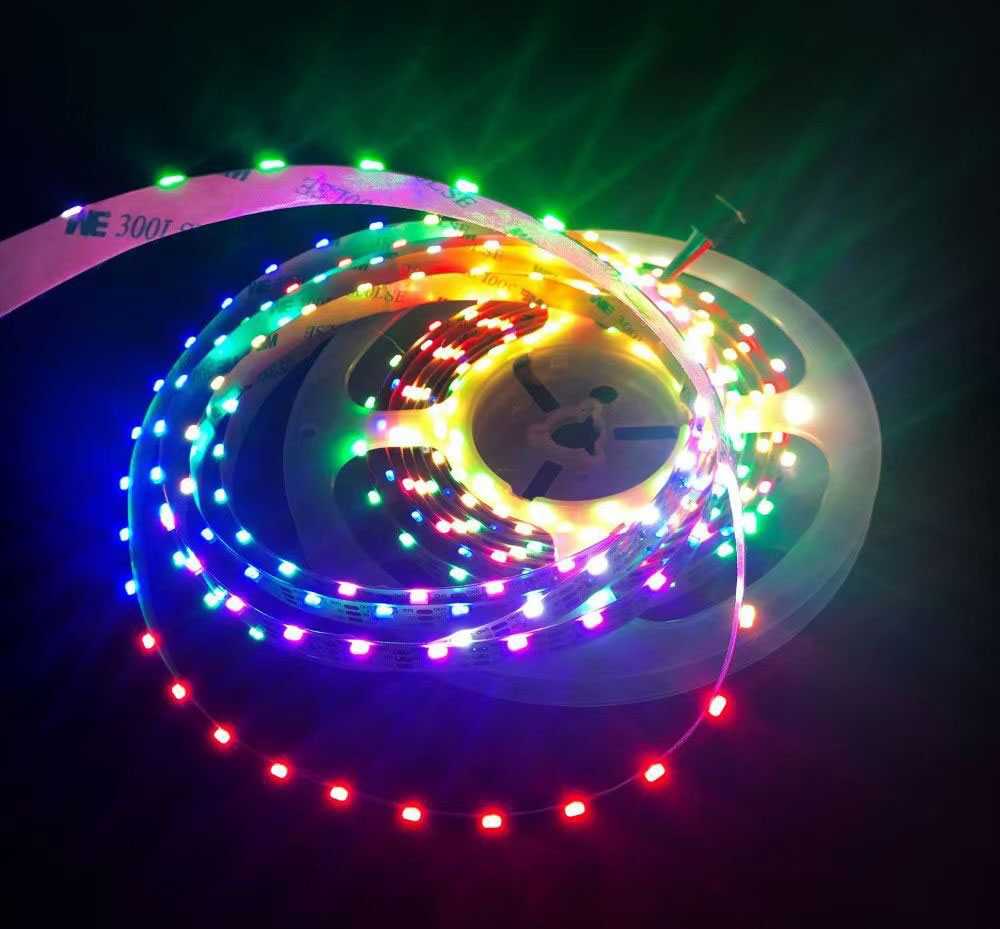

SK6812-4020 SIDE is a set of control and electrical luminescence in one of the intelligent external control LED light source. Each component is a pixel. Pixel internal contains Intelligent digital interface data latch signal shaping amplifier driver, power regulator circuit, built-in constant current circuit, high-precision RC oscillator, the output drive using patented PWM technology, effectively ensure the color of light within the pixel High consistency.

Data protocol using unipolar return code communication, pixel point after power-on reset, DIN side to accept the data transmitted from the controller, first sent over the 24bit data is extracted by the first pixel, sent to the pixel Point internal data latch, the remaining data through the internal plastic Electrical Plastic amplification through the DO port began to forward the output to the next cascaded pixels, each passing a pixel transmission, the signal is reduced by 24bit. Pixels using auto-shaping forwarding technology, making the number of pixel points cascaded by signal transmission restrictions, only the limited signal transmission speed requirements.

LED has a low voltage-driven, environmentally friendly energy-saving, high-frequency, scattering angle is large, consistent, low power, long life and so on. Integrate the control electronics into the LEDs, making them simple, small, and easy to install.

Features:
● Top SMD integrated high-quality external control single-wire serial cascade constant current IC;
● control power and chip integrated in the SMD 4020 components, constitute a complete external control pixel, color temperature uniformity and high consistency.
● Built-in data shaping electrical power, any one pixel after receiving the signal after the waveform shaping and then output, to ensure that the line waveform distortion will increase.
● Built-in power-on reset and power-down reset ?, Power does not light;
● gray-scale adjustment circuit (256 gray-scale adjustable),
● red drive special handling, color more balanced,
● Single-line data transmission, unlimited cascade.
● plastic enhanced forwarding technology, transmission distance between two points more than 10M.
● Data transmission frequency up to 800Kbps, when the refresh rate? 30 frames / second, the number of cascading less than 1024 points.

Warranties & Certifications

The main application areas:
● LED full color light string lights, LED full-color module, LED Symphony soft and hard light bar, LED guardrail, LED appearance / scene lighting
● LED point light, LED pixel screen, LED shaped screen, all kinds of electronic products, electrical equipment full-color lights.

TECHNICAL DETAILS

**All specifications are subject to change without notice.

Other Flex Digital LED Strip Lights

Incorrect Use:

Packaing Diagram

Use of environmental conditions
1). LED strips installation must be operated by professionals.
2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
5). Please do not strongly pull、crash the LED strips during  installation  process. And avoid squeezing and scratching LED strips with sharp objects.
6). During the warranty period, only defective products are acceptable to be replaced by the factory.  Factory is not responsible for other expenses because of replacement，such as transportation fee, installation fee, etc.


Cautions 1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED. 2. For better lighting effect of the product, each 5 meters strip must connect the main power source. 3. Must guarantee that each power source (GND) must be connected. 4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break. 5. Please follow the user manual for installation. 6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety. 7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED. 8. Installs as far as possible the product in the appropriate environment. 9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
