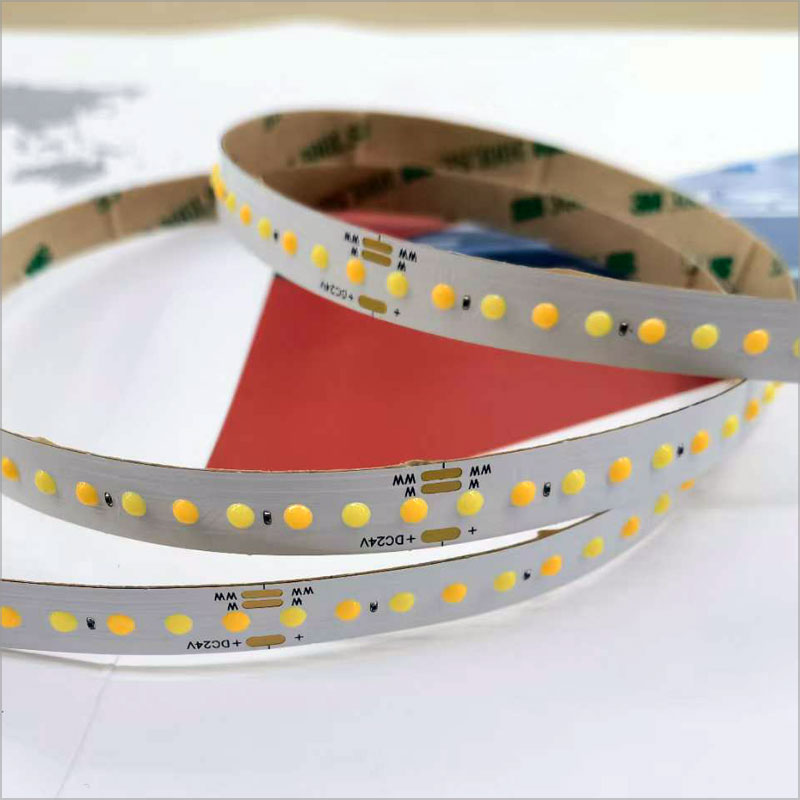

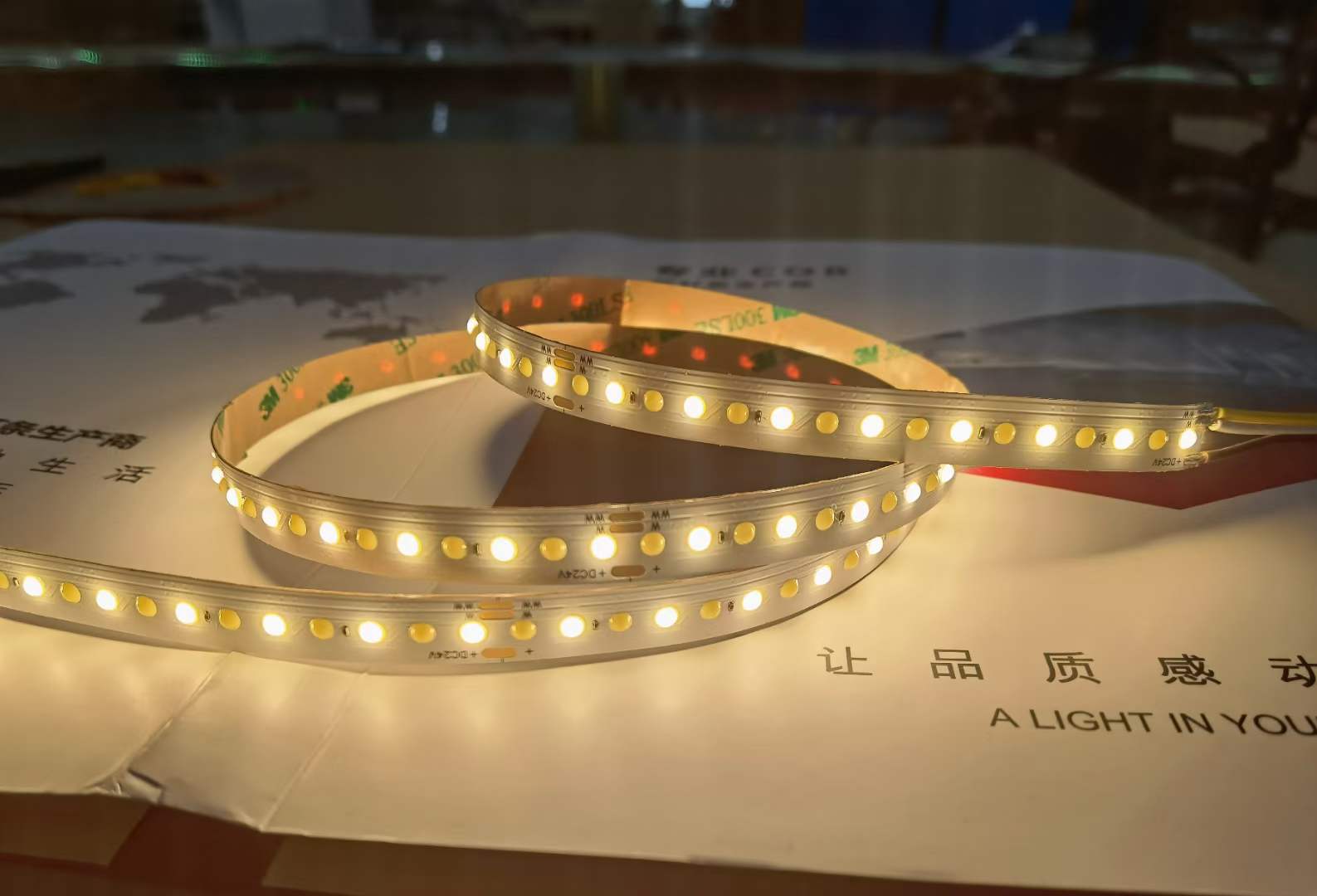

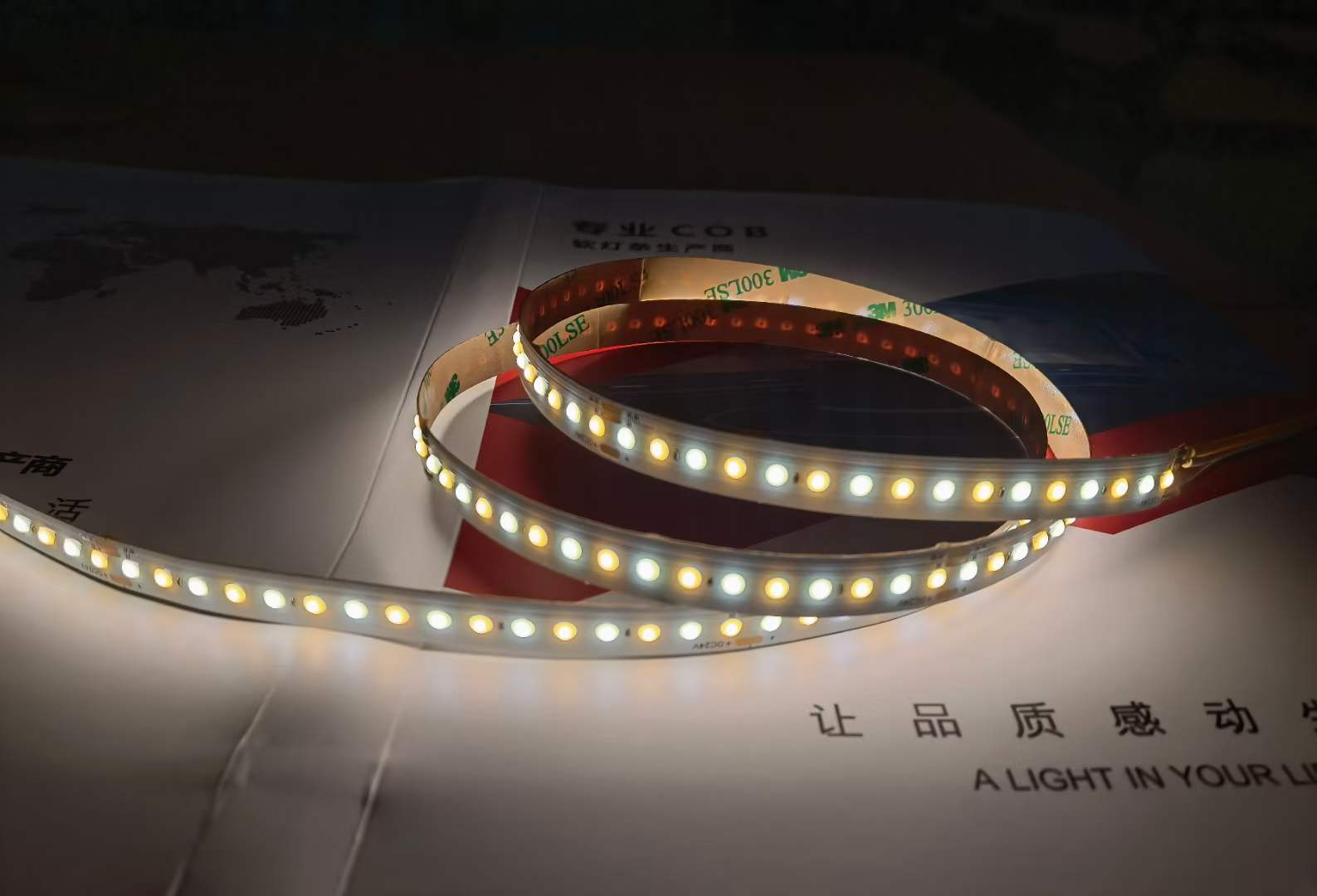

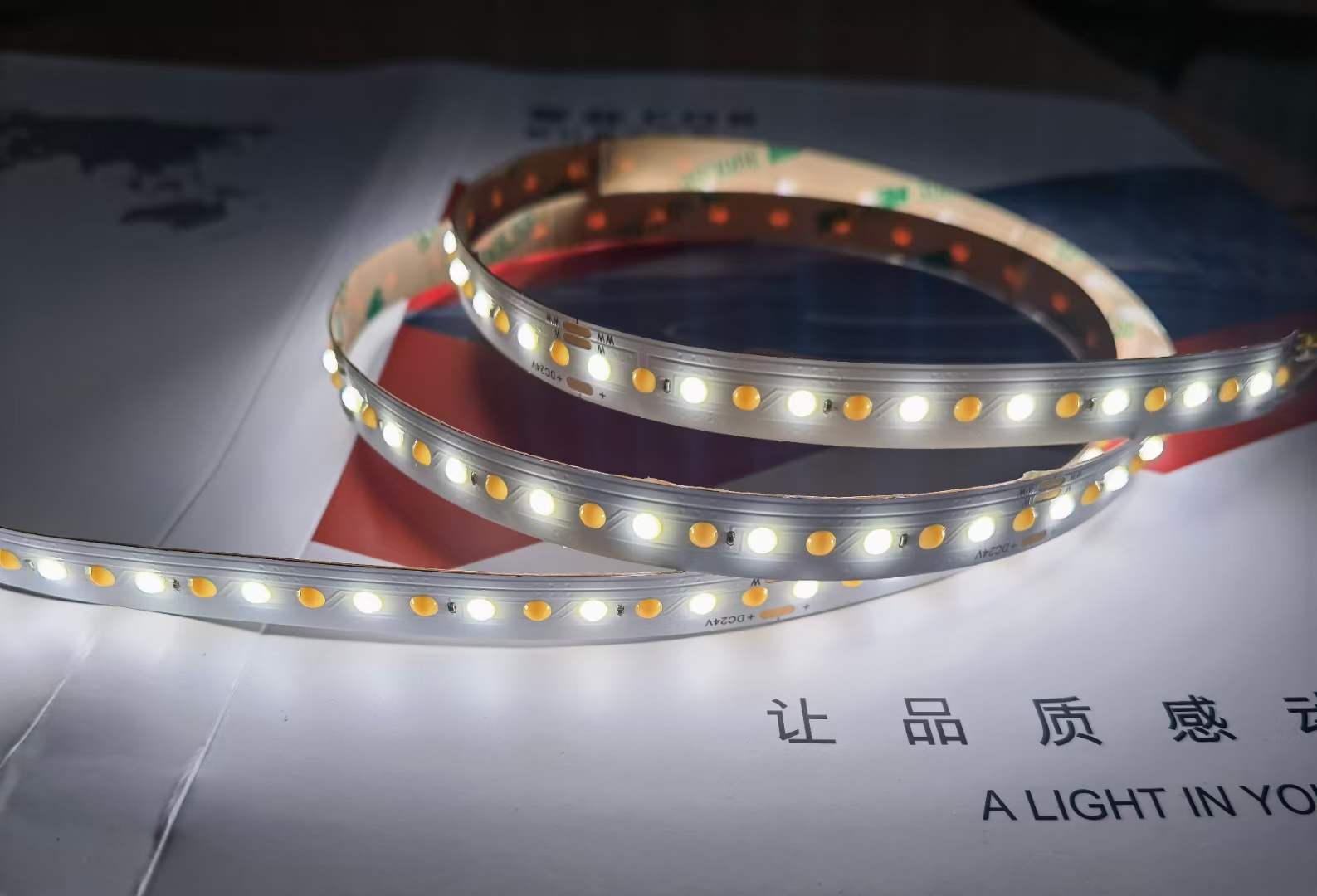

    5m Tunable White COB LED Strip Light - COB Series Color-Changing LED Tape Light - 24V - IP20

      (4 Reviews) | Write a review
    SKU: COB-W800-IP20-CCT-5m
    Discontinued
    Starting at: $116.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Tue,Nov,05 and Mon,Nov,11. order with 2days,9hrs and 31 min.

    A top choice for interior ambient lighting, this tunable Dot COB Series LED strip light emits vibrant white light in temperatures ranging from 2700K warm white to 6500K cool white. Adjust color temperature with precision and ease. Peel-and-stick 3M™ adhesive backing enables fast, easy mounting. Backed by a lifetime warranty.

    Features:

    1. 180° beam angle
    2. 24 VDC input
    3. Max Run: 5m
    4. Strip Width: 10mm
    5. 0-100% dimmable
    6. Connection: pigtail
    7. IP20 rated for dry conditions
    8. 30000 hours L70 lifespan
    9. UL Listed
    10. 5 year warranty

    A new type of FOB strip
    FOB strip means Flexible COB Strip, that's a new design type of LED strip products. As now the LED Strip is by SMD LED+ FPC, so there must with some light dot or spot. Now this FOB Strip is flip chip design covered with phosphor directly, so the color is even and without any light spot. For example, customers usually use the high density LED Strip as such as 2216, 2210 LED Strip. But even with 240LEDs per meter, you will still found light dot when the profile is thin. Like this:

    Available Colors CCTs

    Warranties & Certifications

    Application & Use
    SmartBrightLEDs White Series LED strip lights are installed in a wide variety of applications including:
    TV backlighting, Linear lighting, Cove lighting, Display / jewelry case lighting, Bar and restaurant accent lighting, Above cabinet lighting, Under counter lighting, Hotel lobbies, Cove lighting


    TECHNICAL DETAILS

    LED Beam Angle 180°
    Connection Type Pigtail
    Current Draw 2.08A (2080mA)
    Current Draw Per Foot 127mA
    CRI 94+
    IP Rating Non-Weatherproof
    LED Density 48 LEDs/ft.
    LED Quantity 800 LEDs
    LED Type COB (chip-on-board)
    Color Temperature 2700~6500K
    Rated Lifespan 50,000 hours
    Length 16.4ft (5m)
    Dimmable Yes (requires controller)
    Minimum Cut Length 50mm
    Strip Width 10mm (0.39in)
    Wattage Total 50 Watts
    Voltage 24 VDC
    Wattage per Foot 3.1 W/ft (10.2 W/m)
    Wire Length 508mm (20in)
    Standards And Certifications RoHS Compliant, UL Listed

    **All specifications are subject to change without notice.

    Download COB Series Single Color,CCT and RGB Specification Sheet


    Incorrect Use:

    Packaing Diagram

    Use of environmental conditions
    1). LED strips installation must be operated by professionals.
    2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
    3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
    4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
    5). Please do not strongly pull、crash the LED strips during  installation  process. And avoid squeezing and scratching LED strips with sharp objects.
    6). During the warranty period, only defective products are acceptable to be replaced by the factory.  Factory is not responsible for other expenses because of replacement,such as transportation fee, installation fee, etc.



                                                                                                  Cautions
    1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED.
    2. For better lighting effect of the product, each 5 meters strip must connect the main power source.
    3. Must guarantee that each power source (GND) must be connected.
    4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break.
    5. Please follow the user manual for installation.
    6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety.
    7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED.
    8. Installs as far as possible the product in the appropriate environment.
    9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

    ** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
