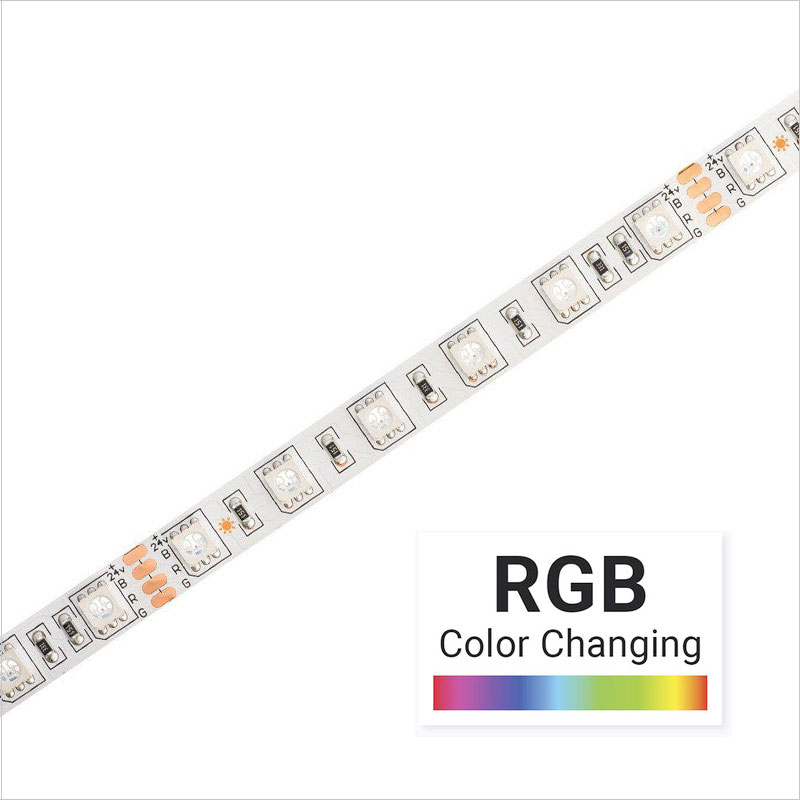

    Custom Length RGB LED Strip Light - Radiant Series Tape Light - 24V - IP20 - 1m

      (8 Reviews) | Write a review
    SKU: STN-CRGB-A6A-24V-1M
    Discontinued
    Starting at: $17.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    Radiant Series RGB LED strip light operates on 24 VDC and can be used in longer runs than 12V strips. The high-density LED light strip can be used with any of our universal RGB controllers for color-changing options. Easily cut it into separate 6-LED segments and install it with its peel-and-stick 3M™ adhesive backing. Minimum length is 3.28'. Run the strip back to power every 32' to avoid excessive voltage drop. This LED strip light is covered by a lifetime warranty. It's great for cabinets, under-cabinet lighting, toe-kicks, coves, bookshelves, showcase lighting, or other indoor applications where space is limited.

    Custom-length strip sections are cut from a larger reel and will not have wire leads. Soldering or the use of solderless connectors (sold separately) is required. See accessories for compatible connectors.

    Features
    Color-changing options with an RGB controller (sold separately)
    24V For longer continuous runs - Up to 32'
    Can be cut every 4"
    3M™ Adhesive backing
    Lifetime warranty
    0-100% Dimmable


    Specifications
    LED Beam Angle:     120 degree
    Current Draw:     0.49A (490mA)
    Current Draw Per Foot:    150mA
    Minimum Cut Length:    100mm (3.9in)
    Dimmable:    Yes
    Efficacy:    26 lm/w
    Environmental Rating:     Non-Weatherproof
    LED Color:    RGB
    LED Density:     18 LEDs/ft (60 LEDs/m)
    Rated Life (L70):    50000 Hours
    LED Quantity:    300 LEDs
    LED Type:    5050 SMD
    LEDs per Segment:    6
    Length:    Custom Length
    Max Continuous Length:    1000cm
    Max Run:     Up to 32.8ft (10m)
    Operating Temperature:    -20~+45 °C (-4~+113 °F)
    Power Consumption:    11.8 Watts
    Segment Length:    100cm
    Certifications/Compliance:    CE, RoHS Compliant, UL Listed
    Strip Width:    10mm (0.39in)
    Type:    Flexible Light Strips
    Operating Voltage:     24 VDC
    Wattage per Foot:    3.6 W/ft (11.8 W/m)
    Wavelength:    470 nm, 525 nm, 630 nm
    Wire Length:    508mm (20in)
    Package Weight: 0.14oz (0kg)
    Package Dimensions: 2.25" (6cm) x 1" (3cm) x 0.01" (0cm)
