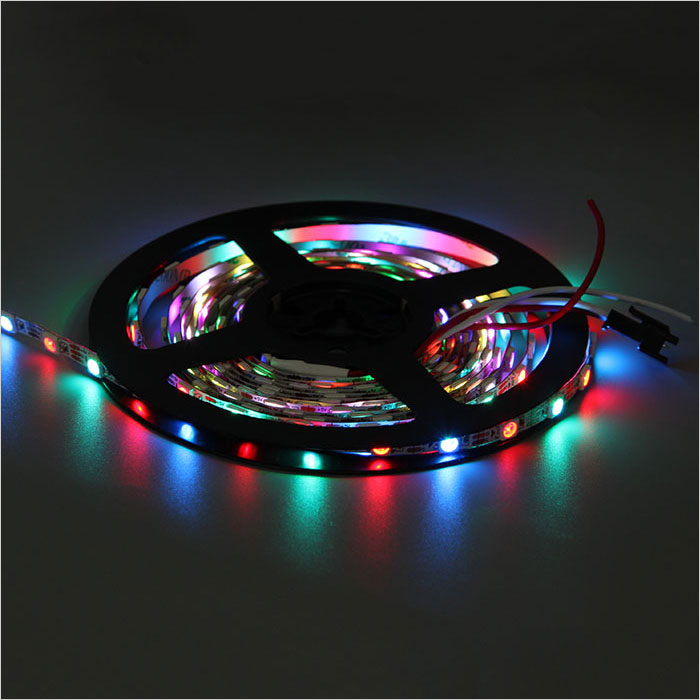

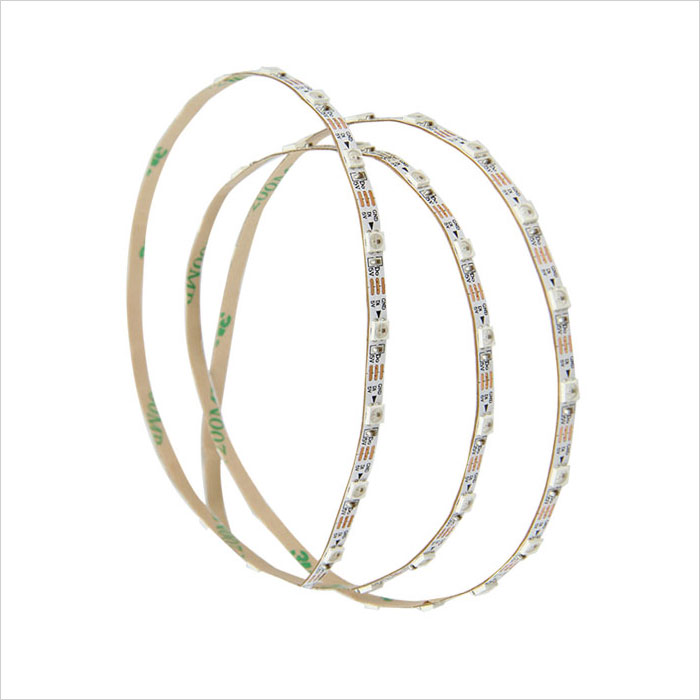

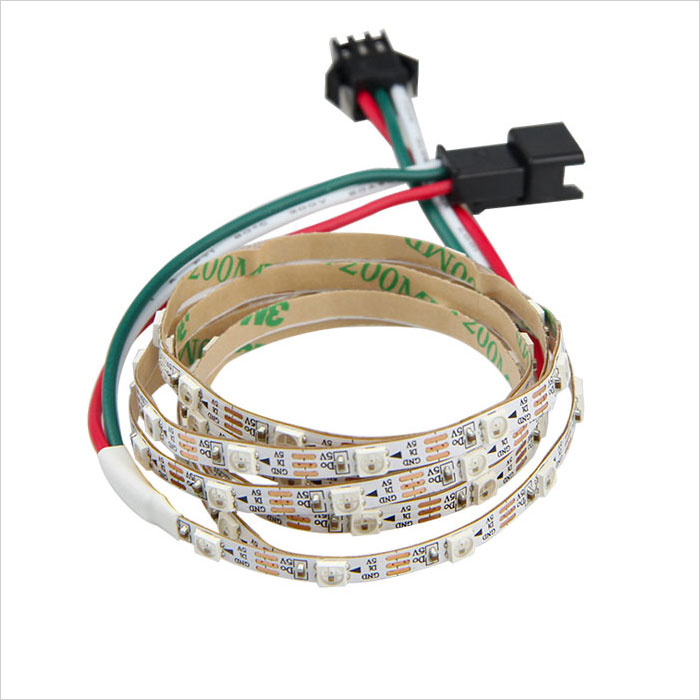

DreamColor series ultra thin Digital RGB Strip Light has WS2812 IC chip technology to individually address each RGB LED. Use the compatible Magic-LED Bluetooth Controller (sold separately) and Magic-LED app to operate from the convenience of a smartphone. Select from thousands of solid colors and 200 color chasing modes. Customize brightness, sequence length, and chase speed. This tape light requires 5V power, is cuttable every LED, and has 3M™ adhesive backing for quick mounting. Create unique light displays for nightclubs, concert venues, stages and studios, decorative backlighting and more.

Features:

1. 5 VDC input
2. 18 LEDs/ft
3. Strip width measures 4mm
4. 3M™ adhesive backing for surface mounting
5. Control IC included, supporting numerous Color-change effects;
6. Absolutely addressable ,each IC built inside RGB LED
7. Lifetime exceeds 50000 hours
8. 1 LED/segment
9. Lifetime warranty

Warranties & Certifications

Application
The excellent light and user-friendly designs make LE D strip perfect for numerous applications, i.e cove lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for

TECHNICAL DETAILS

**All specifications are subject to change without notice.

Connection

This strip 60Pixels (IC) per m,5m/roll (300Pixel),T-1000controller support 2000 Pixel Max,1 Roll strip total power is 72W (5m),each 5V70A(350W) works 4rolls of strip .You also could use T4000,T8000 SD controller for more LED pixels .

Incorrect Use:

Packaing Diagram

Use of environmental conditions
1). LED strips installation must be operated by professionals.
2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
5). Please do not strongly pull、crash the LED strips during  installation  process. And avoid squeezing and scratching LED strips with sharp objects.
6). During the warranty period, only defective products are acceptable to be replaced by the factory.  Factory is not responsible for other expenses because of replacement，such as transportation fee, installation fee, etc.

Cautions 1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED. 2. For better lighting effect of the product, each 5 meters strip must connect the main power source. 3. Must guarantee that each power source (GND) must be connected. 4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break. 5. Please follow the user manual for installation. 6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety. 7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED. 8. Installs as far as possible the product in the appropriate environment. 9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
