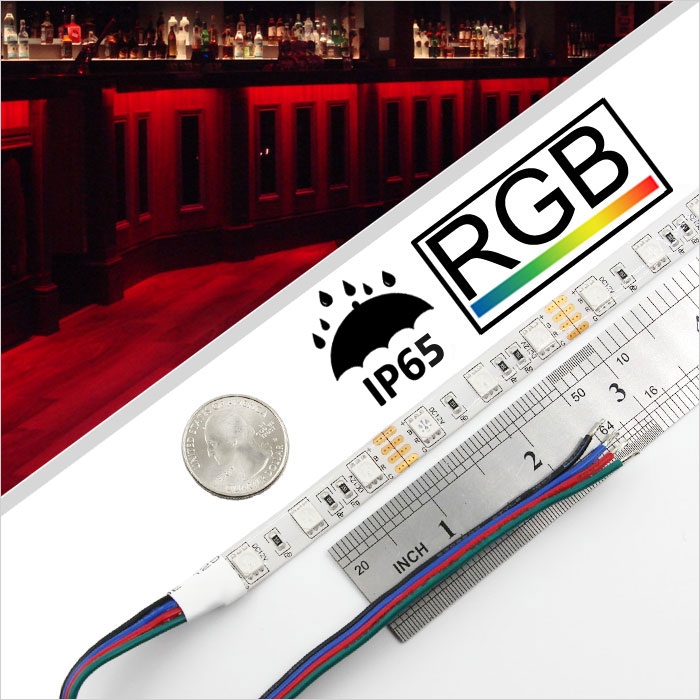

    Outdoor (IP65) RGB LED Strip Light - Color-Changing LED Tape Light - 12V/24V - 5m

      (1 Reviews) | Write a review
    SKU: SNW-RGB-5050-IP65-5M

    Please Choose:



    Discontinued
    Starting at: $69.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    The Outdoor (IP65) Color Changing 300 LED strip light can be purchased in an 8' or 16' 5" reel. Sometimes referred to as "color changing LED tape lights," the strips are as versatile as they are customizable and can be installed in basically any space you can imagine. Using a remote controller, you can change the settings, brightness, and colors of the light strips to almost any color you can imagine! The 300 LEDs per 16-foot reel of color changing LED strips will shine twice as bright as the 150 LED per reel lights.
    The IP65 rating means that the LED strip lights are able to withstand jets and splashes of water from all sides. It cannot be submerged in water, but it will withstand the elements. We also recommend outdoor lights for use indoors in high splash areas or if you're looking for a strip that is easier to clean.
    If you order an RGB flexible light strip, you will need a RGB controller.

    Features:

    1. 12V input for operation with a vehicle; 24V for longer runs
    2. Run 12V strips up to 10m; run 24V strips up to 15m
    3. 18 LEDs/ft
    4. Strip width measures 10mm
    5. 3M™ adhesive backing for surface mounting
    6. Pigtail connection
    7. 0-100% dimmable
    8. Lifetime exceeds 50000 hours
    9. CE certified and UL listed
    10. Lifetime warranty

    Warranties & Certifications

    Application & Use
    Color controllable cove lighting, Signage, Backlighting, Edge lighting, Cabinets, shelves lighting, Accent lighting locations, Under cars and motorcycles, Store display lighting, Under cabinet lighting, Above cabinet lighting, Hotel lobbies.

    Should you select 12 Volt (12v) or 24 Volt (24v)?
    Depends on your application. The main difference between the two is the fact that the 24v strips can be ran for longer distances than the 12v strips can due to Voltage Drop. Voltage drop is the gradual decrease in voltage along a circuit. If your project requires a very long run of LEDs, we would recommend the 24v strips. However, there are also many projects that 12v is required (automotive or marine applications). Please feel free to live chat with us, or email us with questions.
    Before noticing any unwanted color variations or dimming at the end of your run of lights, it is recommended that you run no more than 32' in series when using 12v or 48' in series when using 24v.


    TECHNICAL DETAILS

    Color Temperature RGB
    Connection Type Pigtail
    Efficacy 26 lm/w
    IP Rating Weatherproof IP65
    LED Beam Angle 120 degree
    LED Color RGB
    LED Density 18 LEDs/ft.
    LED Quantity 300 LEDs
    LED Type 5050 SMD
    Strip Width 10mm (0.39in)
    Rated Lifespan 50,000 hours
    Length 16.4ft (5m)
    Dimmable Yes (requires Trulux controller)
    DMX Compatible Yes
    Suitable for Outdoor Use Yes
    Wire Length 508mm (20in)
    Wattage Total 59 Watts
    Wattage per Foot 3.6 W/ft (11.8 W/m)
    Operating Temperature -20~+45 °C (-4~+113 °F)
    Standards And Certifications CE, RoHS Compliant, UL Listed

    **All specifications are subject to change without notice.


    Incorrect Use:

    Packaing Diagram

    Use of environmental conditions
    1). LED strips installation must be operated by professionals.
    2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
    3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
    4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
    5). Please do not strongly pull、crash the LED strips during  installation  process. And avoid squeezing and scratching LED strips with sharp objects.
    6). During the warranty period, only defective products are acceptable to be replaced by the factory.  Factory is not responsible for other expenses because of replacement,such as transportation fee, installation fee, etc.



                                                                                                                                                 Cautions
    1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED.
    2. For better lighting effect of the product, each 5 meters strip must connect the main power source.
    3. Must guarantee that each power source (GND) must be connected.
    4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break.
    5. Please follow the user manual for installation.
    6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety.
    7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED.
    8. Installs as far as possible the product in the appropriate environment.
    9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

    ** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
