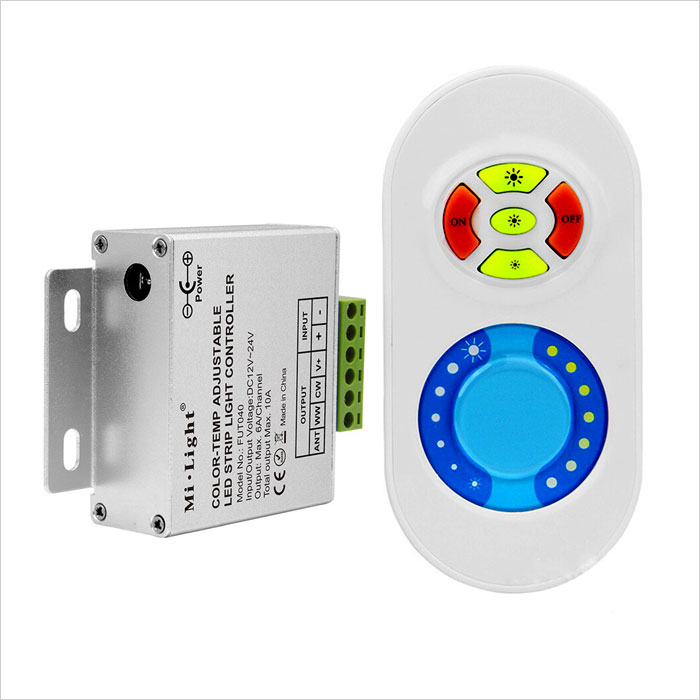

This LED dimmer can dim any 12VDC or 24VDC Variable Color Temperature LED Flexible Light Strip from 10~100% and dial in any white color temperature using Pulse Width Modulation(PWM). Unique synchronization function constricts remote to one controller, or to multiple controllers for use with one remote. Maximum load is 6 amps per channel, 12 amps total.

Warranties & Certifications

TECHNICAL DETAILS
1. Easy-to-use dimmer for 12 or 24 volt DC LEDs. Contains 2 independent circuits (2 channels) for use with color temperature adjustable strips.
2. 6 amp sustained maximum per circuit= 72 watts/circuit (12 VDC) or 144 watts/circuit (24 VDC.)
3. 150 Hertz pulse dimming ensures no flicker.
4. Speaker-type input and output connections on dimming unit.
5. Screw tabs on dimming unit for mounting.
6. RF signal goes through walls. Range is over 65 feet in a benign electromagnetic environment.
7. 20-step dimming.
8. Each dimmer and remote control are matched to operate with each other. You can reset the matching if you want to put more than one dimming unit on a remote control.
9. Remote control requires 3 AAA batteries, which are not included.
10. Remote control is 4.5" x 2.2" x 0.75"; Dimming unit is 3.3" x 2.5" x 1".
