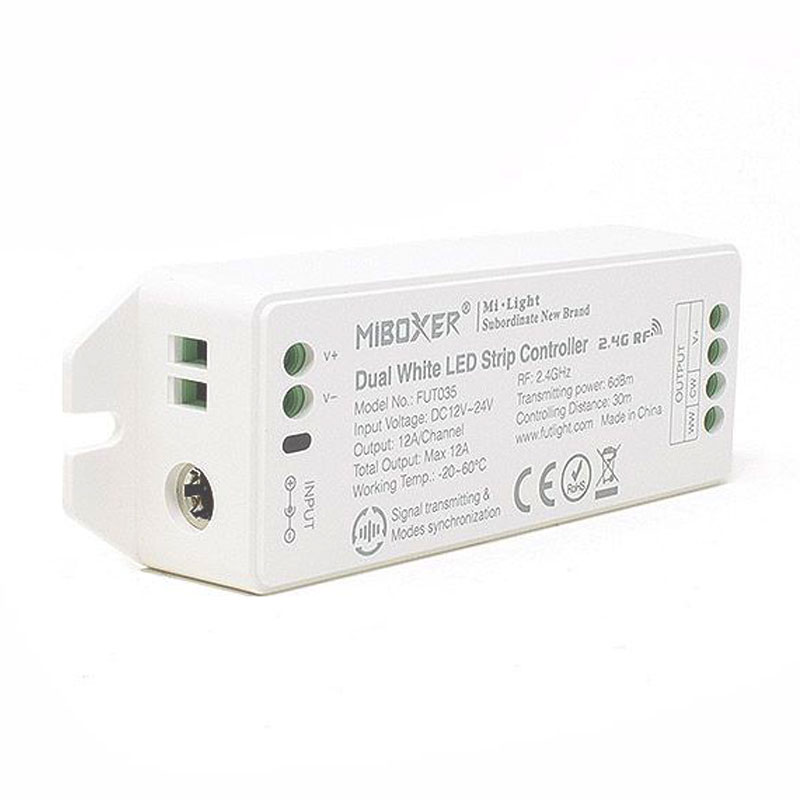

This Wireless Dual Channel RF Receiver from Mi-Light is compatible with 2.4GHz RF controllers and will enable you to control your low voltage (12v or 24v) colour temperature adjustable LED lighting products.  The receiver features auto transmitting & synchronising functions so when multiple receivers are paired to the same zone on the controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the receivers in the group will synchronise your lighting together with no interconnecting control cables.  the maximum load on this receiver is 10A (5A / Channel) and the PWM Frequncy is 4KHz.
In addition to being able to pair with the compatible Mi-Light controllers, the receivers can also be paired to a smartphone application and they also support third party voice control products such as smart speakers (Additional hub required for these features).
Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.

Feature

1. 2.4GHz RF Receiver
2. For colour temperature adjustable LEDs
3. Compatible with Mi-Light / MiBoxer handsets and wall panels
4. Smartphone Compatible
5. 30m signal transmiting and synchronization between receivers
6. Quick and easy to pair with handsets and wall panels

Technical Specification

Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    100v - 240v AC
Output Voltage:    12v / 24v DC
Connectivity:    RF
Size:    L119x W37.5 x H22mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    -20~60°C
Total Output:    Max12A
Output Max:    12A/Channel
