SBL-P2 MiBoxer 2.4GHz Colour Temperature Panel Controller
This simple to use, low voltage wireless wall panel will switch on / off or control the brightness and colour temperature of your dual white (CCT) LED lighting products using the popular 2.4GHz frequency.
Note: You can also connect your colour temperature adjustable 12v or 24v lighting product directly to the wall panel with a maximum of 5A / channel, please ensure that you connect the correct voltage and size of driver to the wall panel when operating in this mode.

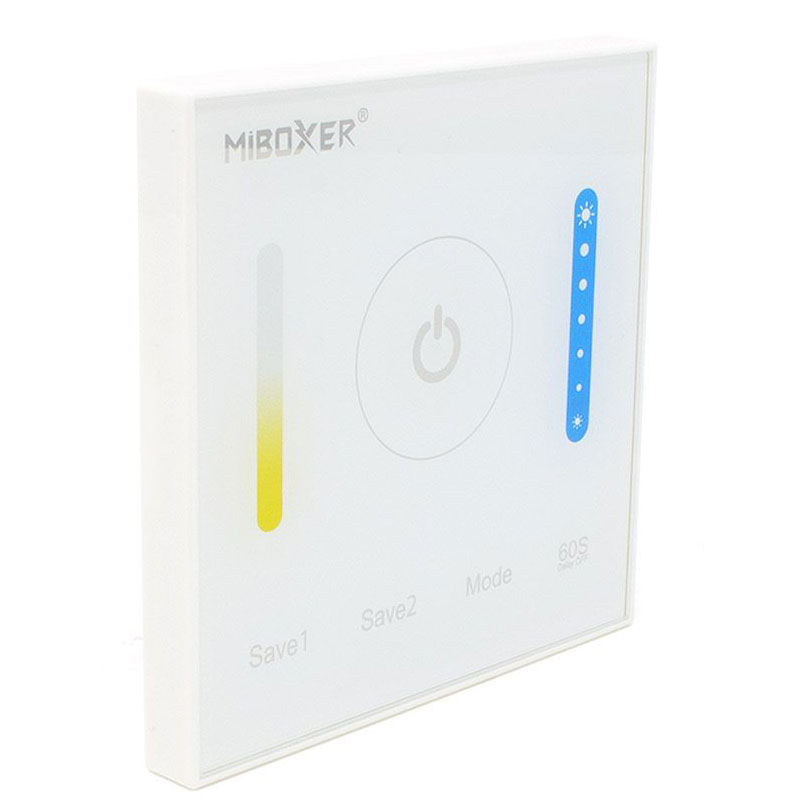

The wall panel features a toughened glass front with a touch sensitive dimming slider control, colour temperature adjustment from warm white (2700K) to cool white (6500K) a power On/Off button, a Mode button to select various dynamic modes, two programmable scene buttons and a 60 second timer button to delay the switching off of you lighting to enable you to vacate a room with the lights still on.
All the controls use an IC high precision touch sensitive system for a more stable and sensitive operation.
An unlimited number of receivers / lights can be paired to the wall panel and it is also possible to connect a 2.4GHz handset to control your lighting. Simply pair your 2.4GHz lighting product or RF receiver to the wall panel and you will have control over the brightness level and colour temperature of your dual white lighting using the touch slider controls. You can power on and off your lighting, select one of nine dynamic modes, store and recall two programmable scenes or activate the timer delay function.
Connect a suitable 12v or 24v DC power supply to the wall panel to power it and then pair your receiver or 2.4GHz lighting product and you are ready to go. This wall panel is also compatible with a wireless smart phone application or through voice control from your smart speaker (an additional 2.4GHz Gateway is required for these features).
Compatible Mi-Light LED lighting sold separately. For product assistance please contact us by telephone, email or via the on-line chat.
Feature
- Colour Temperature slider
- Built-in programs
- Optional sound on button press
- Quick and easy to pair with receivers
- 5 Year Guarantee
Technical Specification
Product Type: Controller
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 12v / 24v DC
Connectivity: RF
Size: L86 x W26 x H86mm
Dimmable: No
Wireless Range: Up to 30 metres
Transmitting Power: 6dBm
Operation Frequency: 2.4GHz
Operating Temp: -20~60°C
Total Output: 10A
Output Max: 5A/Channel
