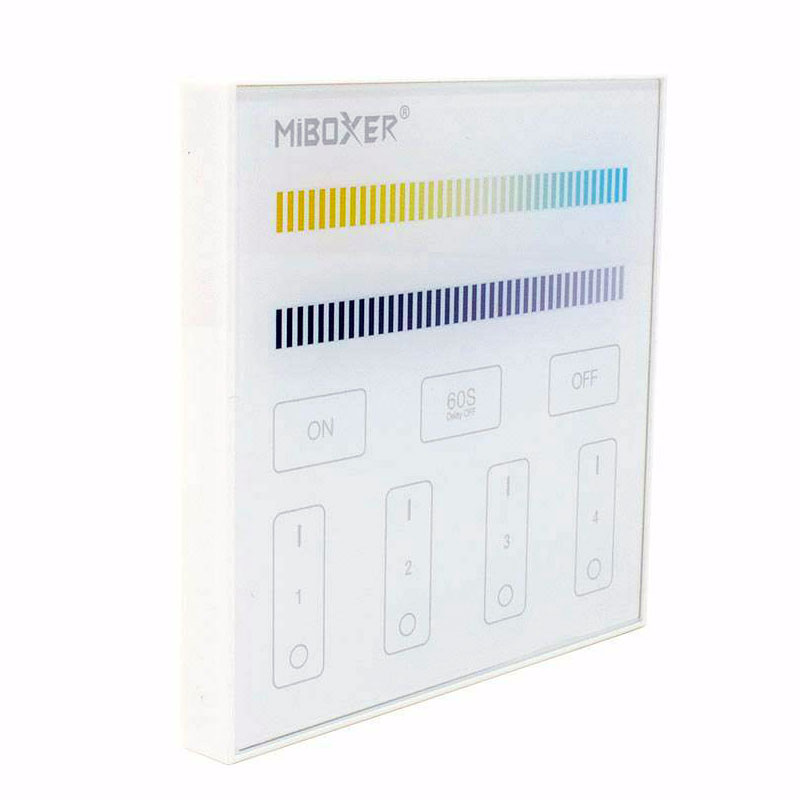

This mains powered RF wall panel has the capacity to control up to four zones of colour temperature adjustable LED lighting together or individually, the wall panel features a toughened glass front with touch sensitive colour temperature adjustment and dimming slider controls, master power On/Off and individual power On/Off buttons for each zone.  All the controls use an IC high precision touch sensitive system for a more stable and sensitive operation.
As an unlimited number of receivers / lights can be paired to each zone on the wall panel, it is possible to control multiple products in each of the four zones.  Simply pair each product to your chosen zone and to operate individually, switch on the zone with the appropriate button, select the required colour temperature from warm to cool white and the brightness level using the touch slider controls. A master On/Off button will switch all the zones On/Off together.
In addition a handy timer function will delay the switch off of your lighting so that when your luminaires are switched on you can select a 60 second Off timer.  This is a very useful function which gives you time to exit a room or area before the lights turn off.
Compatible Mi-Light LED lighting sold separately. For product assistance please contact us by telephone, email or via the on-line chat.

Feature

1. Colour temperature adjustable touch slider
2. Dimming touch slider
3. 4 zones
4. Lights off timer
5. Optional sound on button press
6. Quick and easy to pair with receivers
7. 5 Year Guarantee

Technical Specification

Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    100v - 240v AC
Connectivity:    RF
Size    :L86 x W86 x H33mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    GFSK
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    NA
