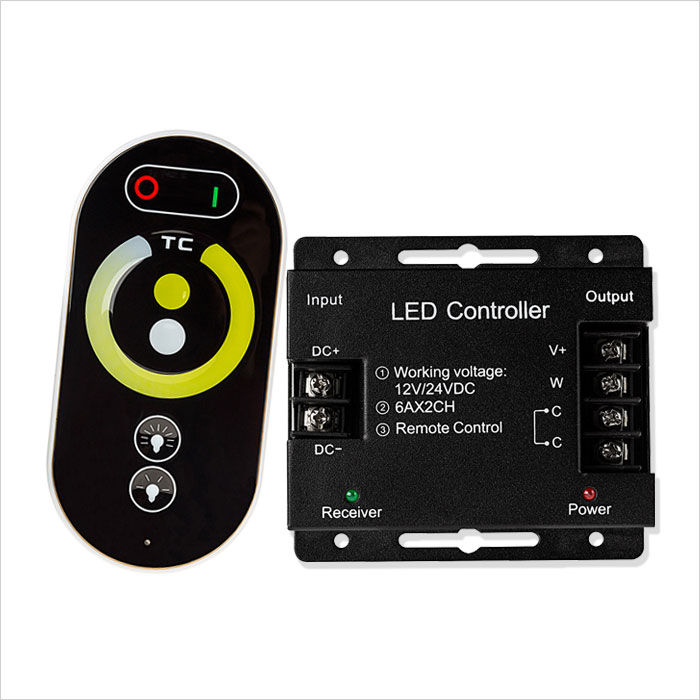

Use this tunable color temperature LED controller with wireless touch-color RF remote to control your tunable white LED light strips. The remote is completely touch activated with a temperature control wheel for direct, fine-tuned white color temperature selection. The touch-color remote also has power, brightness control, and cool/warm white selection touch buttons and can control your LED light strips from up to 65' away. Power-cycle mode retention allows your light strips to return to the mode that was selected before it was powered off. The polarity-sensitive controller has 2 channels with a maximum load capacity of 6 amps per channel and is compatible with LED light strips that operate within a 12-24V DC range. Red and green lights on the controller let you see when it is receiving power and signal from the RF remote. Screw slots allow for permanent controller mounting. Remote requires 3 AAA batteries (not included).

Features:
Remote has 65ft range
Controls brightness and cool/warm white selection
12 amps: 6 amp per each of the 2 channels
12-24 VDC range

Warranties & Certifications

TECHNICAL DETAILS
Amps:  12.00 Amps
Amps per Channel:  6 Amps/CH
Battery Type:  3 x AAA
Channels:  2 Channels
Connection Type:  Screw Terminals
Control Type:    Handheld Remote
Dim Control:  Conventional Dimming, Remote Control
Finish:  Black
Input Voltage DC:  12 ~ 24 VDC
Operating Temperature:    -30~+60 °C (-22~+140 °F)
Output Voltage DC:  12~24 VDC
Polarity:  Common Anode
Radio Frequency:  433.92 MHz
Remote Range:    Up to 20m
Special Features:  Variable Color Temperature
Standards And Certifications:    CE, FCC, RoHS Compliant
Volts:    12~24 VDC
Package Weight:  13.5oz (0.38kg)
Package Dimensions:  8.1" (21cm) x 5.27" (13cm) x 1.74" (4cm)
All specifications are subject to change without notice.
