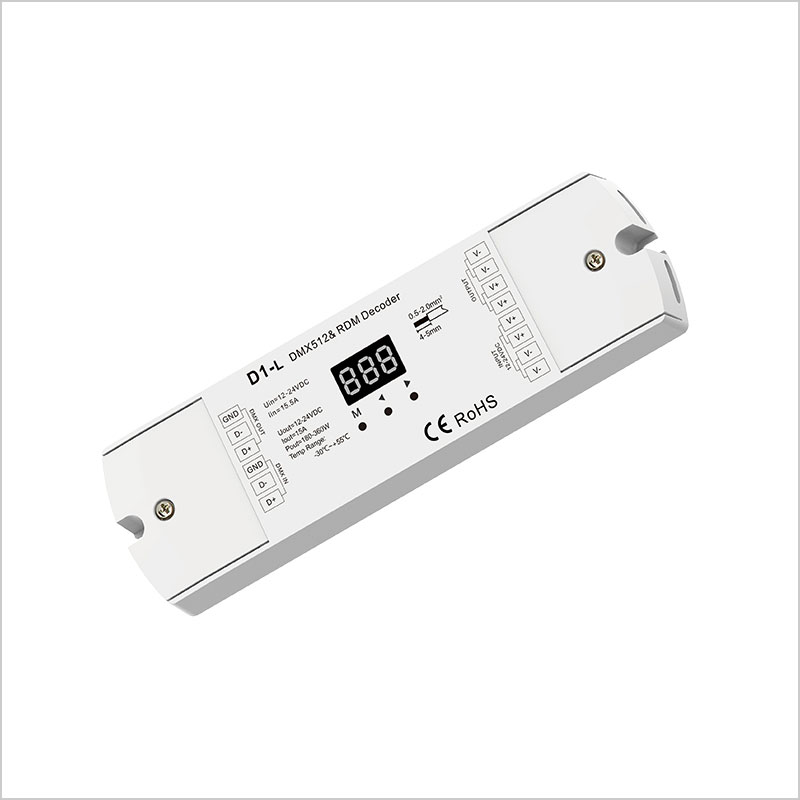

    1 Channel LED DMX512 Decoder - 5A/CH - 12-24V - Digital Display - 180-360W

      (8 Reviews) | Write a review
    SKU: DS-D1-L
    Discontinued
    Starting at: $15.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    RDM/Stand-alone function/Two PWM frequency/Logarithmic or linear dimming/Numeric display/Multiple protection

    ● Comply with the DMX512 standard protocols.
    ● Digital numeric display, set DMX decode start address by buttons.
    ● RDM function can realize intercommunication between DMX master and decoder.
     For example, DMX decoder address can be set by DMX master console.
    ● PWM frequency 2000/500Hz selectable.
    ● Logarithmic or linear dimming curve selectable.
    ● Stand-alone dynamic mode and dimmer mode selectable,
     which be controlled by buttons with built-in programs, instead of DMX signal.
    ● Over-heat / Over-load / Short circuit protection, recover automatically

    Specifications
    Amps per Channel:    5 Amps/CH
    Channels:    1 Channels
    DMX In/Out:    Screw Terminals
    IP Rating:    Non-Waterproof IP20
    Input Connection Type:    Screw Terminals
    Input Voltage Range:    12-24 VDC
    Max Output Wattage:    180-360 W / channel (depending on voltage)
    Operating Temperature:    -30~+55 °C (-22~+131 °F)
    Output Current:    5.0 Amps
    Output type:  Constant voltage
    Remote:     DMX
    Standards And Certifications:    CE, RoHS Compliant
    Package Weight: 16oz (0.45kg)
    Package Dimensions: 7" (18cm) x 2.5" (6cm) x 1.5" (4cm)
    All specifications are subject to change without notice.
