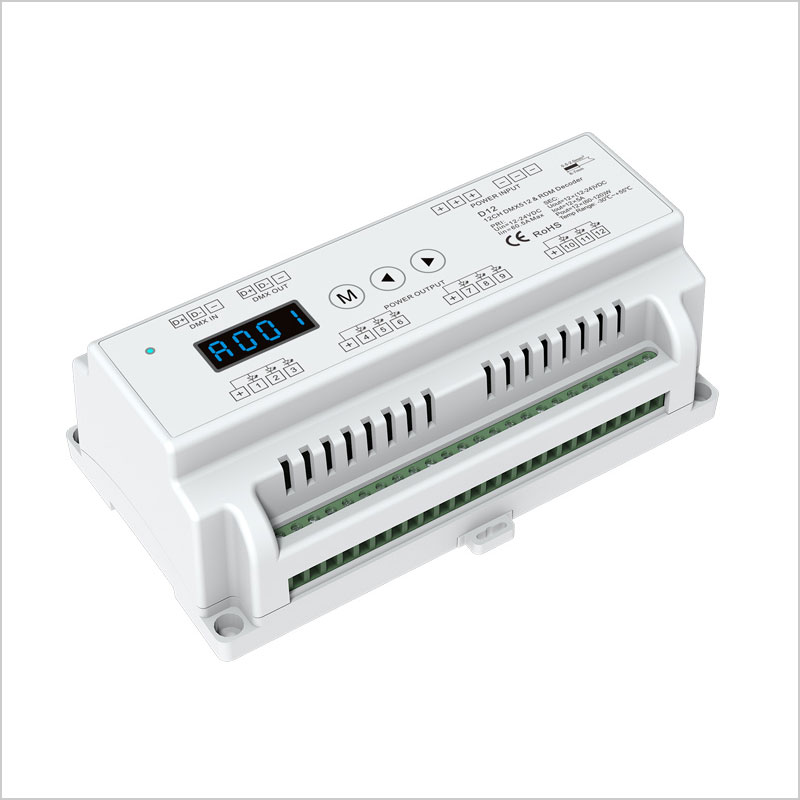

    12 Channel Constant Voltage LED DMX512 and RDM Decoder/Controller - 5A/CH - 5-24 VDC

      (10 Reviews) | Write a review
    SKU: DMX512-D12C5A
    Discontinued
    Starting at: $146.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Tue,Jan,07 and Mon,Jan,13. order with 2days,9hrs and 31 min.

    12 Channel DMX512 and RDM Decoder converts DMX and RDM signals to PWM for single color and RGB LED lighting products. It features both DMX decoder and master functions that are easy to switch between. RDM bi-direction communication enables the DMX console to detect and display decoder information and set DMX addresses. With a total of 12 channels, it allows a max of 5A and 120W per channel for controlling larger projects.

    RDM/Stand-alone function/Two PWM frequency/Linear or logarithmic dimming/Numeric display/Din Rail

    Comply with the DMX512 standard protocols.
    ● Digital numeric display, set DMX decode start address by buttons.
    ● RDM function can realize intercommunication between
     DMX master and decoder. For example,
     DMX decoder address can be set by DMX master console.
    ● PWM frequency 2000/500Hz selectable.
    ● Logarithmic or linear dimming curve selectable.
    ● Stand-alone 12ch RGB mode and 12 channel dimmer mode selectable,
     which be controlled by buttons with built-in programs, instead of DMX signal.

    Technical Parameters
    Input voltage:  5-24VDC
    Input current:  60.5A
    Output voltage: 12 x (12-24)VDC
    Output current: 12CH,5A/CH Total MAX 60A
    Output power: 12 x (60-120)W
    Output type: Constant voltage
    IP rating: IP20
    Warranty: 5 Years
    Certification: CE,EMC,LVD
