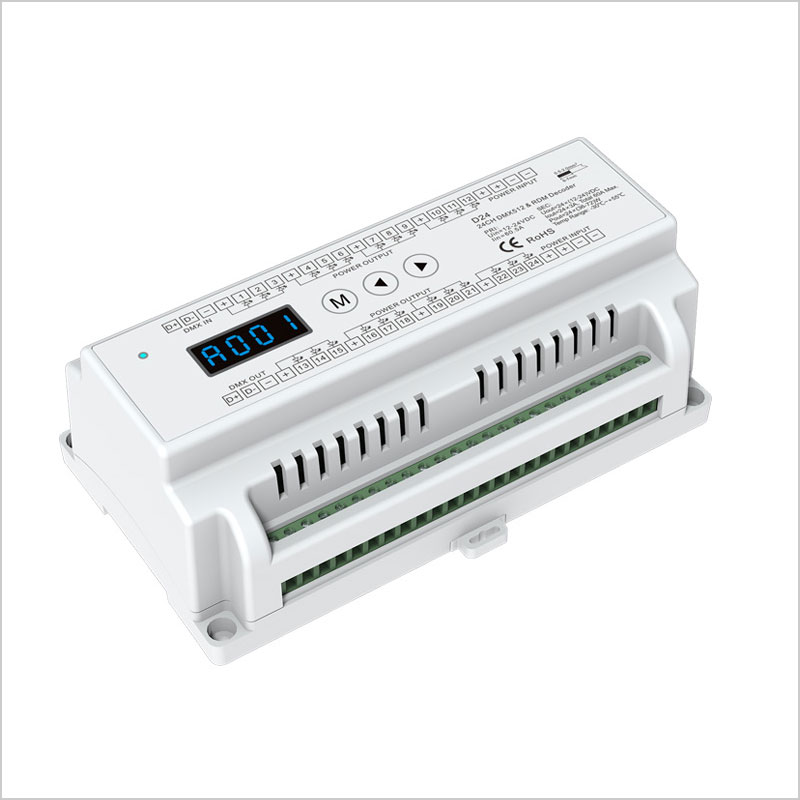

24 Channel Constant Voltage LED DMX512 and RDM Decoder/Controller - 3A/CH - 5-24 VDC
24 Channel DMX512 and RDM Decoder converts DMX and RDM signals to PWM for single color and RGB LED lighting products. It features both DMX decoder and master functions that are easy to switch between. RDM bi-direction communication enables the DMX console to detect and display decoder information and set DMX addresses. With a total of 24 channels, it allows a max of 3A and 72W per channel for controlling larger projects.
RDM/Stand-alone function/Two PWM frequency/Linear or logarithmic dimming/Numeric display/Din Rail
● Comply with the DMX512 standard protocols.
● Digital numeric display, set DMX decode start address by buttons.
● RDM function can realize intercommunication between
DMX master and decoder. For example,
DMX decoder address can be set by DMX master console.
● PWM frequency 2000/500Hz selectable.
● Logarithmic or linear dimming curve selectable.
● Stand-alone 24ch RGB mode and 24 channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.
Technical Parameters
Input voltage: 5-24VDC
Input current: 60.5A
Output voltage: 24 x (12-24)VDC
Output current: 24CH,3A/CH Total MAX 60A
Output power: 24 x (36-72)W
Output type: Constant voltage
IP rating: IP20
Warranty: 5 Years
Certification: CE,EMC,LVD
