    24 Channel LED DMX 512 Decoder / Controller

      (4 Reviews) | Write a review
    SKU: DMX512-24CH
    Discontinued
    Starting at: $259.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

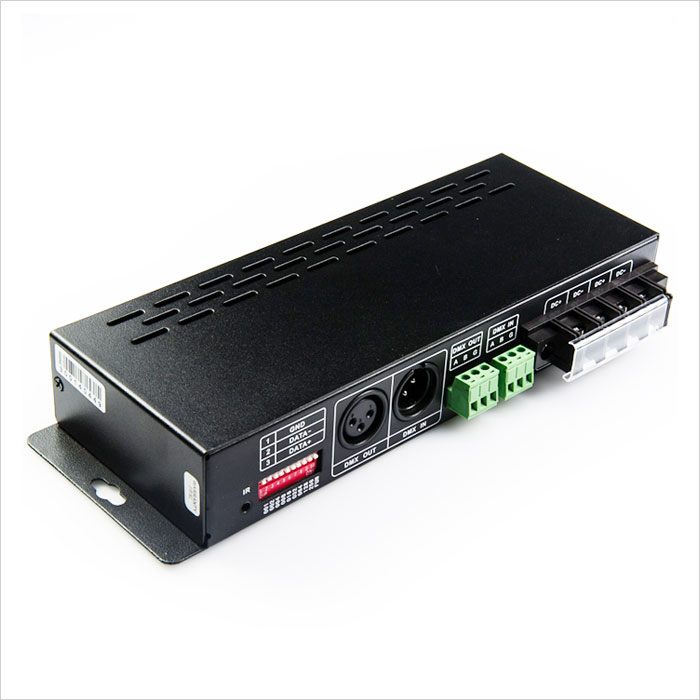

    This 24 channel DMX512 decoder can control up to 24 different 12 VDC LED products or 8 RGB LED light bars or strips. The decoder is made to be compatible with any brand of DMX controller console and signaling rates and uses an 8-bit standard DMX transmission. Decoder can run in stand-alone mode using Address code switches or under DMX-512 digital control signals using XLR or RJ45 DMX-512 Input/Output interfaces. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 8-bit gray scale output per channel. Maximum load is 3 amps per channel—72 Amps total.

    Warranties & Certifications

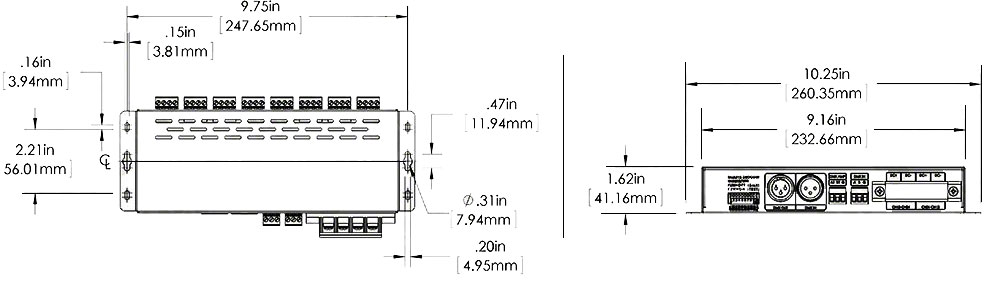

    Dimensional Drawings

    Application & Use
    Home Lighting, Home Accent Lighting, Remote Controlled Light, Smartphone Accessory Light.


    TECHNICAL DETAILS
    Amps:  72 Amps
    Amps Per Channel:  3 Amps/CH
    Channels:  24 Channels
    Connection Type:  Screw Terminals
    Input Voltage DC:  5~24 VDC
    Remote Control:     DMX
    Special Features:  Custom Colors
    Standards And Certifications:  RoHS Compliant
    Volts:    5~24 VDC
    Package Weight:  13.4oz (0.38kg)
    Package Dimensions:  7.25" (18cm) x 2.76" (7cm) x 2.76" (7cm)
