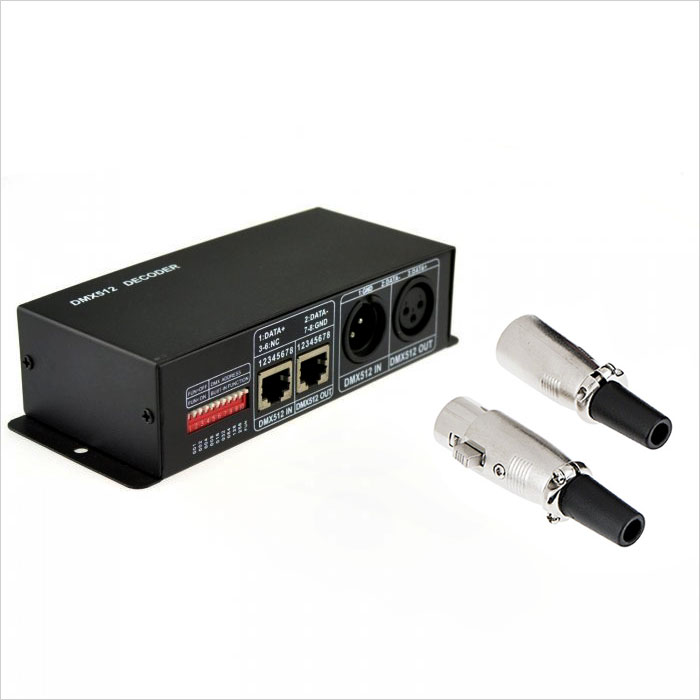

3 Channels DMX-512 Decoder / Controller for RGB LED Light Strip
This 3 channel DMX512 decoder can control up to 3 different 12 VDC LED products or any one RGB LED light bar or strip. Controller can run under DMX512 digital control signals using XLR or RJ45 DMX512 Input/Output interfaces. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 8-bit gray scale output per channel. Maximum load is 4 amps per channel—12 Amps total. Includes male and female 3-pin XLR connectors.
Warranties & Certifications

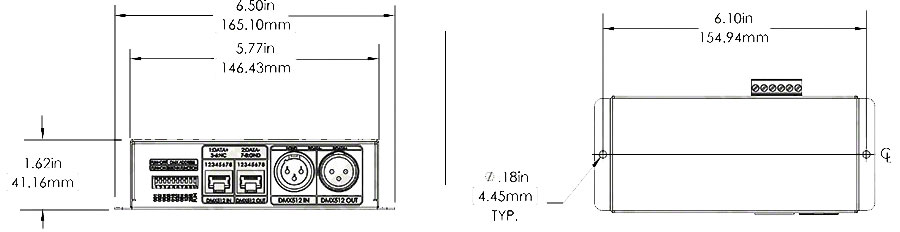

Dimensional Drawings
Application & Use
Home Lighting, Home Accent Lighting, Remote Controlled Light, Smartphone Accessory Light.
TECHNICAL DETAILS
Applications: Necessary conversions of DMX to PWM signals for driving LEDs
Function: Control 3 channel 12VDC LED products or any one RGB LED Light Bar or Strip using DMX console
Operating Voltage: 12~24 Volts DC (use only 12VDC power with 12VDC LEDs)
Connection Mode: Common Anode (+)
Output: Three CMOS output RGB
Maximum Load Current: 4 Amps/channel (12 Amps total)
Output Power: 144 Watts
Connection Type: Screw Terminals
Remote Control: DMX
Special Features: Custom Colors
Standards And Certifications: RoHS Compliant
Overall Size: (L)166 X (W)67 X (H)41 mm
Control Method: DMX512 RJ45 / DMX512 3-pin XLR
Operating Temperature: -25~60°C
