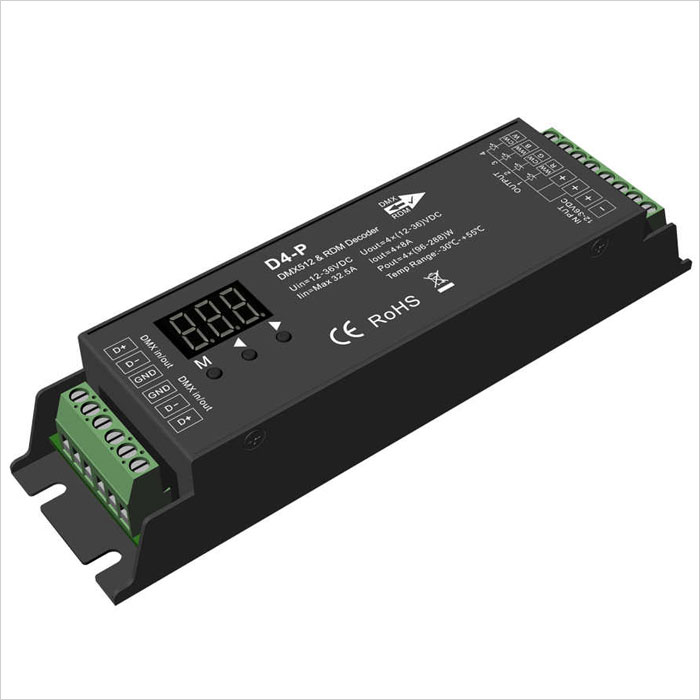

DS series 4 Channel DMX512 and RDM Decoder converts DMX and RDM signals to PWM for single color, CCT and/or RGB LED lighting products. It features both DMX decoder and master functions that are easy to switch between. RDM bi-direction communication enables the DMX console to detect and display decoder information and set DMX addresses. With a total of 4 channels, it allows a max of 8A and 288W per channel for controlling larger projects.

Settings and features are easily accessible with digital display menus, operated with control buttons. Green terminal DMX interface with photoelectric isolation and signal amplifier function improves signal transmission efficiency and anti-interference. Common anode screw-down terminals for connection to LED light strips or fixtures. Stand alone function allows for easy testing, as well as control of RGB LEDs when no DMX signal is present. This feature includes 5 built-in RGB programs with adjustable speed and brightness levels.

Product Details:
Easy operation with digital display and buttons
Protects against: over-heat, over-load, short circuit
1-4 channel configuration
Max load current: 32.5A
Green terminal DMX interface with photoelectric isolation and signal amplifier
DMX address selection digital display
96W at 12V or 288W at 36V
Rated IP20 for dry locations
RoHs, CE certificate, FCC
5 year warranty

Warranties & Certifications

TECHNICAL DETAILS
Amps per Channel:  8 Amps/CH
Channels:  4 Channels
Control Mode:  RGB, CCT, DIM
Remote:  DMX
Dimensions:  6.9" x 1.82" x 1.33"
Dimming Curve:  gamma 0.1-9.9, linear, log
DMX In/Out:  Wire Terminals
Input Signal:  DMX512/RDM
Input Voltage Range:  12-36 VDC
IP Rating:  Non-Waterproof IP20
Max Input Current:  32.5 A
Max Output Wattage:  96–288 W / channel (depending on voltage)
Operating Temperature:  -30~+55 °C (-22~+131 °F)
Output Current:  8 A x 4, max 32 A, 8.0 Amps
Product Weight:  0lb 10oz (0.28kg)
PWM Adjustment:  500 Hz non adjustable
Resolution:  8 bit
Standards And Certifications:  CE, FCC, RoHS Compliant
Volts:  12~36 VDC
Package Weight:  10.8oz (0.31kg)
Package Dimensions:  7" (18cm) x 2" (5cm) x 1.5" (4cm)
All specifications are subject to change without notice.
