5 Amp 4 Channel LED DMX 512 Decoder

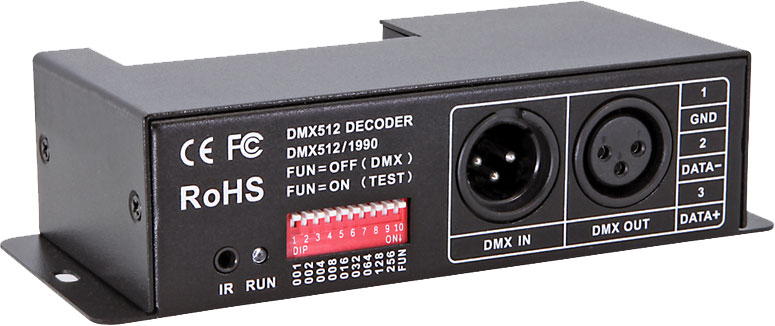

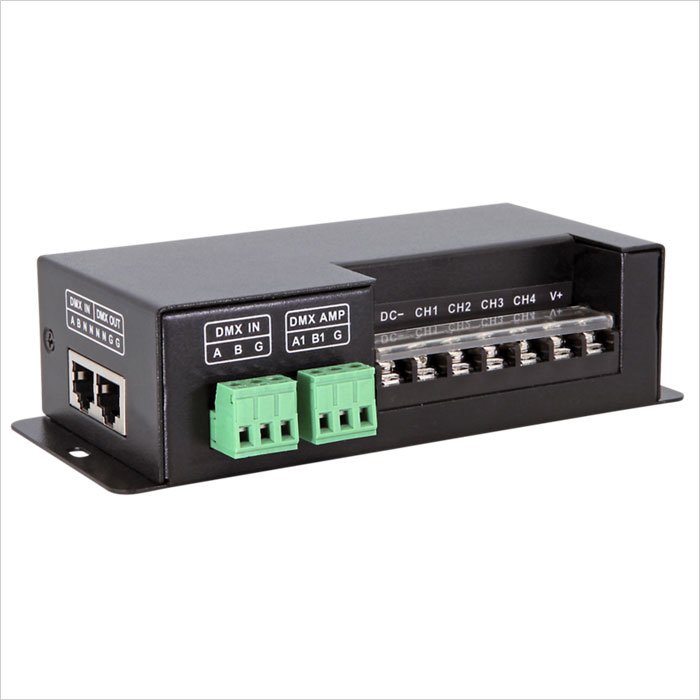

This 4 channel DMX512 decoder can control up to 4 different 12 VDC LED products or any 1 RGB LED light bar or strip. Decoder can run under DMX512 digital control signals using XLR or RJ45 DMX512 Input/Output interfaces. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 16-bit gray scale output per channel. Maximum load is 5 amps per channel—20 amps total. Includes male and female 3-pin XLR connectors.
Warranties & Certifications
Application & Use
Home Lighting, Home Accent Lighting, Remote Controlled Light, Smartphone Accessory Light.
TECHNICAL DETAILS
Applications: Neccessary conversions of DMX to PWM signals for driving LEDs
Function: Control four different 12VDC LED products or 1 RGB LED and 1 single color LED product using DMX console
Operating Voltage: 12~24 Volts DC (use only 12VDC power with 12VDC LEDs)
Connection Mode: Common Anode (+)
Output: Four CMOS output
IP Rating: Non-Waterproof IP20
Input Voltage Range: 12 VDC
Channels: 4 Channels
Volts: 5~24 VDC
Standards And Certifications: RoHS Compliant
Maximum Load Current: 5 Amps/channel (20 Amps total)
Output Power: 240 Watts
Overall Size: (L)166 X (W)67 X (H)41 mm
Control Method: DMX512 RJ45 / DMX512 3-pin XLR
Operating Temperature: -25~60°C
Package Weight: 14.4oz (0.41kg)
Package Dimensions: 7.25" (18cm) x 2.76" (7cm) x 2.76" (7cm)
