DMX512 to SPI Decoder and RF Controller With Digital Display - 5-24 VDC
DMX23 series DMX512 Decoder converts DMX signals to an SPI digital signal for controlling digital LED lights. Compatible with several IC chip types (see complete list below), this interface will run anywhere from 5-24 VDC and control up to 1024 pixels, making it possible to individually control digital pixel lights, DreamColor LED strip lights, and other modules with compatible IC chip types. Choose from among 32 dynamic color-chasing patterns and adjust brightness and speed with the user-friendly digital display and arrow buttons. Or, pair with optional remote control (sold separately) for wireless control from a distance of nearly 100ft.

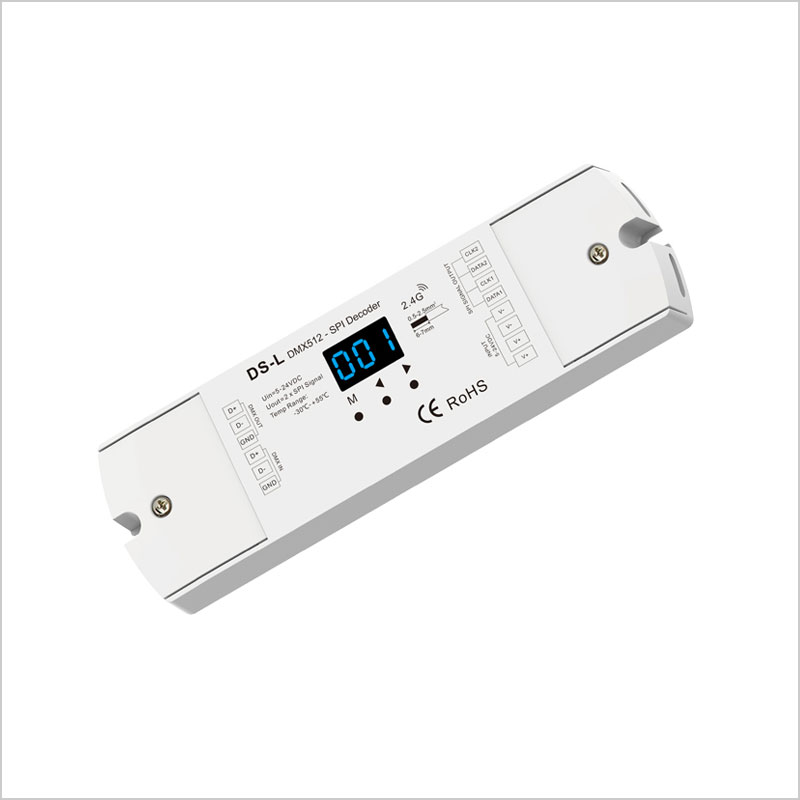

DMX512 to SPI decoder and RF controller with digital display.
● Compatible with 34 kinds digital IC RGB or RGBW LED strip, IC type and R/G/B order can be set.
Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909,
UCS2912, WS2811,WS2812, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B, SK6812, UCS8904B,
LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A,
GS8206,GS8208.
● DMX decode mode, stand-alone mode and RF mode selectable.
● Standard DMX512 compliant interface, set DMX decode start address by buttons.
● Under stand-alone mode, change mode, speed or brightness by bottons.
● Under RF mode, match with RF 2.4G RGB/RGBW remote control.
● 32 kinds dynamic mode, include horse-race, chase, flow, trail or gradual change style.
Technical Parameters
Input voltage: 5-24VDC
Input signal: DMX512 + RF 2.4GHz
Output signal: SPI(TTL) x 2
Dynamic mode: 32
Control dots: 170 pixels (RGB 510 CH)Max 900 pixels
Certification: CE,EMC,LVD
Warranty: 5 years
