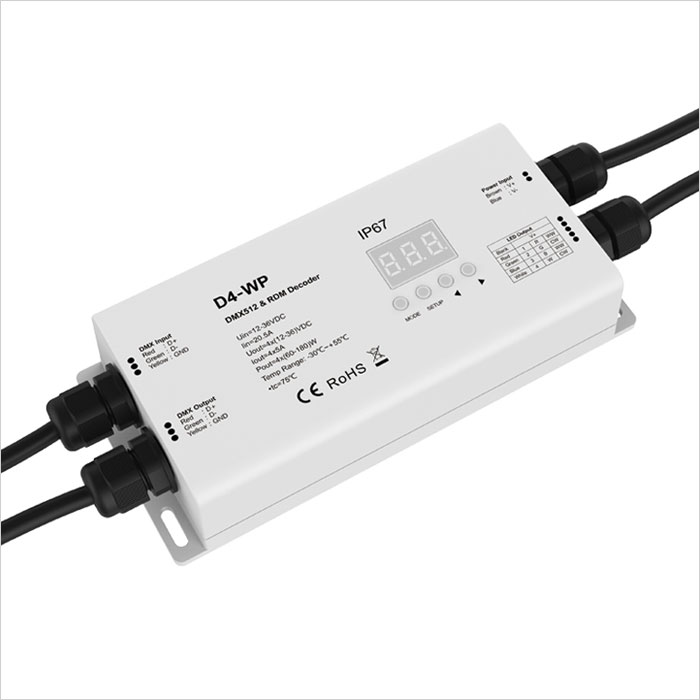

    LED Waterproof DMX512 and RDM Decoder - 4 Channel - 5 Amp - 12-36V - Digital Display

      (2 Reviews) | Write a review
    SKU: DS-D4-WP
    Discontinued
    Starting at: $75.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    DS series DMX512 Decoder allows LED lights to be connected to and controlled with DMX systems. With a fully waterproof case, the device can be used both indoor or outdoor without the need for a protective enclosure. Digital display with simple buttons make it easy to control LEDs like strip lights or landscape fixtures. Select modes and assign addresses for up to 4 channels, 5 amps per channel, with a maximum power of 60-watts at 12 VDC or 180-watts at 36 VDC.

    Pair with a Waterproof LED Strip.

    Product Details:
    1-4 channel configuration
    Wire length on each end: 10.5"
    DMX IN and OUT
    DMX address selction LED display
    60W-180W
    12 VDC, 24 VDC, 36 VDC
    Rated IP67 for wet locations
    RoHs, CE certificate
    5 year warranty

    Warranties & Certifications


    TECHNICAL DETAILS
    Amps:  20.5 Amps
    Amps per Channel:  5 Amps/CH
    Channels:  4 Channels
    IP Rating:  Waterproof IP67
    Input Connection Type:  Pigtail
    Input Voltage Range:  12 VDC, 12-36 VDC, 24 VDC, 36 VDC
    Max Output Wattage:  60~180 Watts
    Operating Temperature:  -30~+55 °C (-22~+131 °F)
    Remote:  DMX
    Standards And Certifications:  CE, RoHS Compliant
    Volts:  12~36 VDC
    Package Weight:  16oz (0.45kg)
    Package Dimensions:  7" (18cm) x 4" (10cm) x 3" (8cm)
    All specifications are subject to change without notice.
