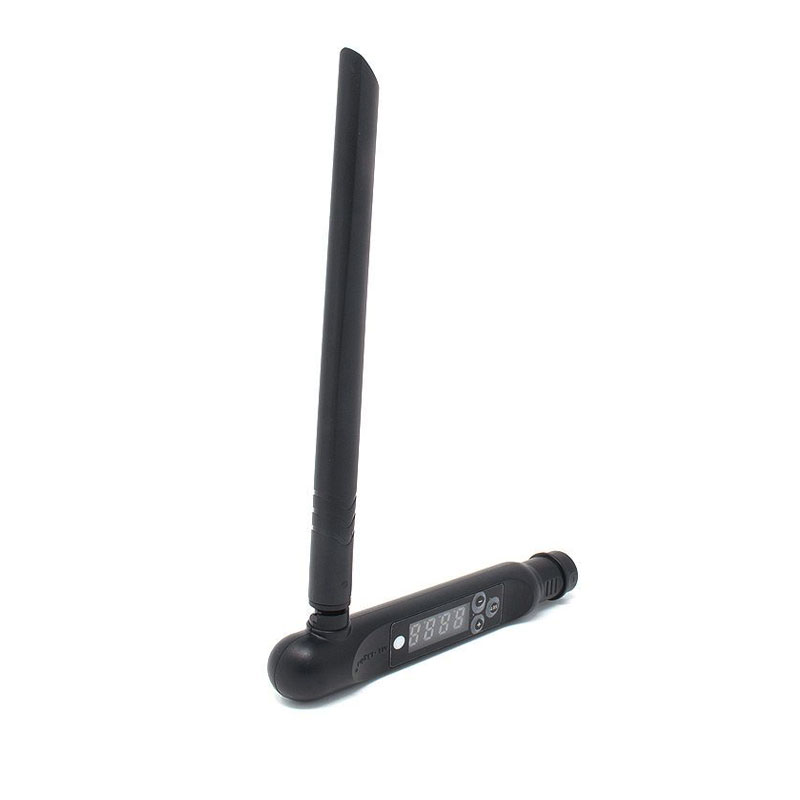

SBL-FUTD01 Mi-Light DMX512 LED Transmitter
With 80 x DMX channels, this DMX512 wireless transmitter can control up to 16 x zones of five channel (RGBW) Mi-Light light bulbs or Mi-Light LED five channel strip controllers. The Transmitter simply plugs into the 3pin XLR output connector on your DMX lighting desk, power is provided using the included USB to mini jack lead. It is possible to select up to 16 x separate zones and the DMX address from 001 to 512 as required using the buttons and digital display on the side of the transmitter. The system transmits on the 2.4gHz global ISM frequency for a stable and reliable connection between the transmitter and receivers. The transmitting distance is up to 30m but please note that although line of sight is not necessary, any obstructions between the transmitter and receivers may reduce this range. The unit can transmit 80 channels of DMX data at the same time.
Feature
- DMX LED Transmitter
- DMX 512
- 2.4GHz Wireless signal
- Digital Display
- Control up to 16 zones
- Unlimited lights per zone
- Work With Auto synchronization
- 5 Year Guarantee
Technical Specification
Manufacturer: Mi-Light / MiBoxer
Product Type: DMX Operator
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 5v DC
Connectivity: DMX 512 protocols
Size: 188mm X 47mm X 23mm
Dimmable: No
Wireless Range: Up to 30 metres
Max Bend: Not Applicable
Modulation Method: GFSK
Transmitting Power: 6dBm
Operation Frequency: 2.4GHz
Operating Temp: -20~45°C
