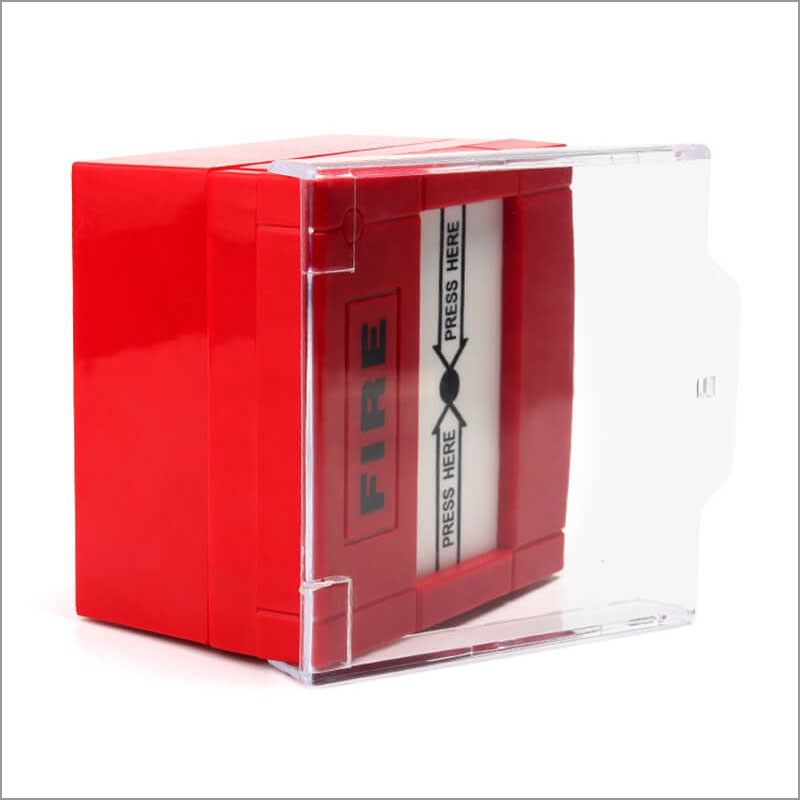

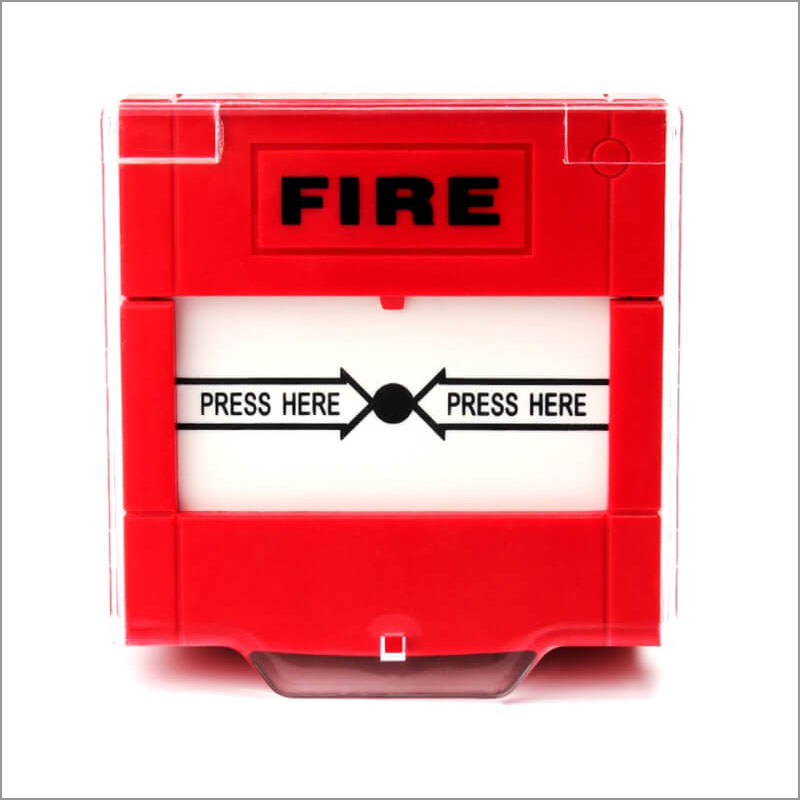

Resettable Conventional Emergency Manual Fire Alarm Call Point Fire Button - 24V
1. Reusable type with key reset.
2. Fast and easy installation
3.Single/Double Pole optional

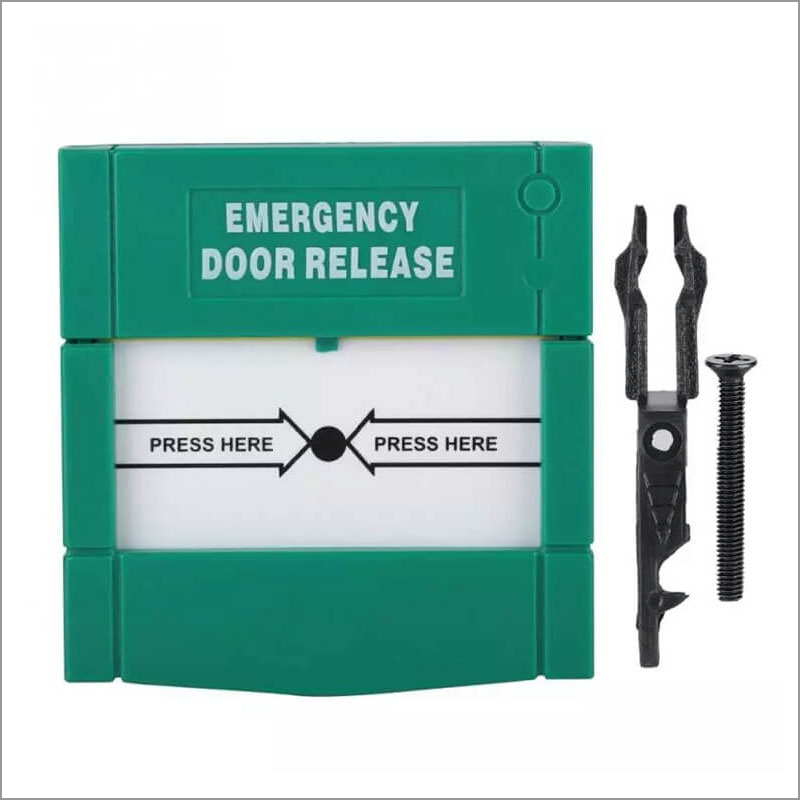

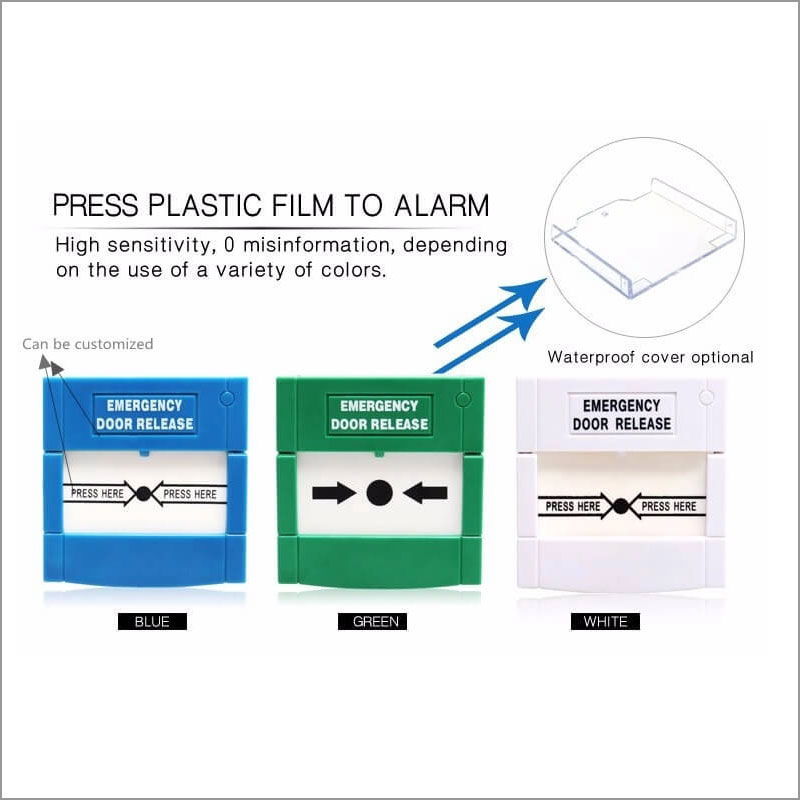

4. Available in Red/Green/Yellow/Blue/White
5.Water-proof cover optional
6.Suitable for the majority of conventional fire and other emergency alarm systems.
Specifications
model name: SR-XA05 Resettable emergency call point
Current Ratings: 24V DC 2A Maximum
Alarm Impedance: 280 , 470
Connections Terminal: – max 2.5 mm2 cable
Language: per customer requirements
connection method: Four kind of wire connection method
Size: 86*86*50
