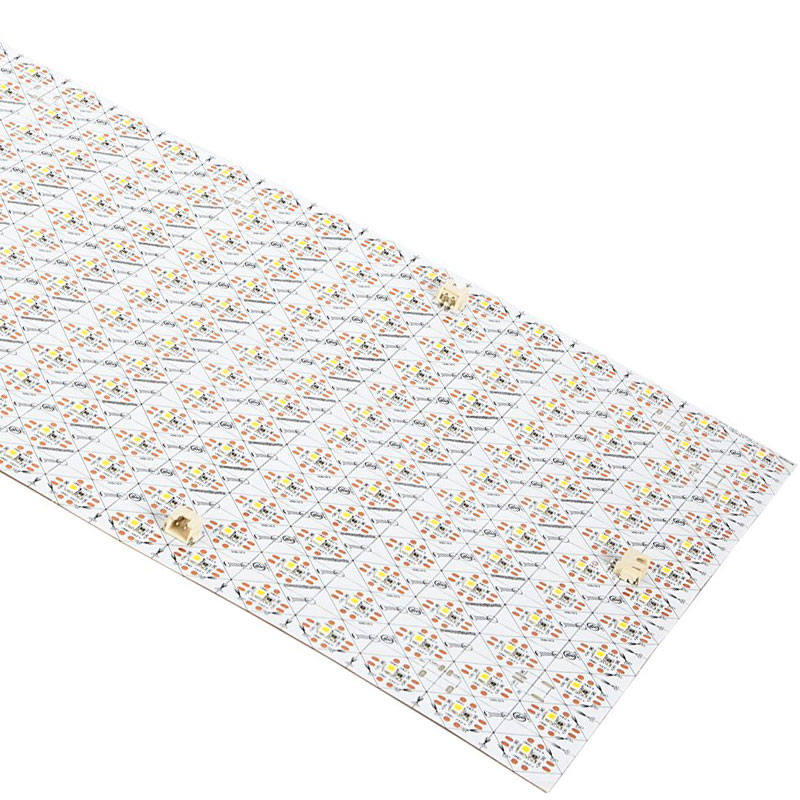

Trim and cut the 24V LED light sheet to fit unique shapes or wrap corners. This flexible sheet contains 24 columns x 12 rows of segments that can fit any shape by cutting along the horizontal, vertical, or diagonal lines. The segments have cut lines along the board to shape the light sheet to the application, ideal for signs or backlighting. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.

Product Details:

• Segment size: 0.79" x 0.79"- 288 segments per sheet
• Max Run with Class 2 wiring: 3 sheets
• Input connection: 2-pin XH connector
• Includes one 0.5m pigtail connector and one 8cm interconnect
• 1.18" (30mm) enclosure rating
• PWM dimmable
• 24 VDC
• UL Listed
• 5-year warranty

Specifications
Ambient Operating Temperature：    -20~+45 °C (-4~+113 °F)
Certifications/Compliance：    UL Listed
CRI：    80+
Current Draw：     1.25 A
Dimensions：    18.9in x 9.5in
Dimmable：    Yes
Enclosed Fixture Rated：    Yes
Finish：    White
Input Connection Type：    Pigtail, XH 2-Pin Connector
IP Rating：     IP20
LED Beam Angle：     120°
LED Type：    2835 SMD
LEDs per Segment：    1
Max Run (Class 2)：     3 Sheets
Operating Voltage：    24 VDC
Output Connection Type：    XH 2-Pin Connector
Power Consumption：    30 Watts
Rated Life (L70)：    50000 Hours
Segment Size：    0.79 in. x 0.79 in. (20 mm x 20 mm)

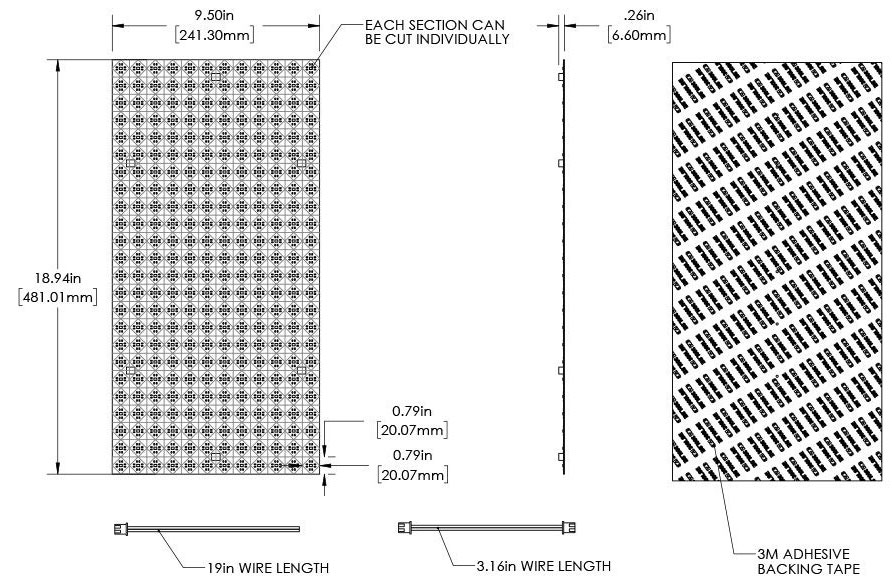

Dimensional Drawings
