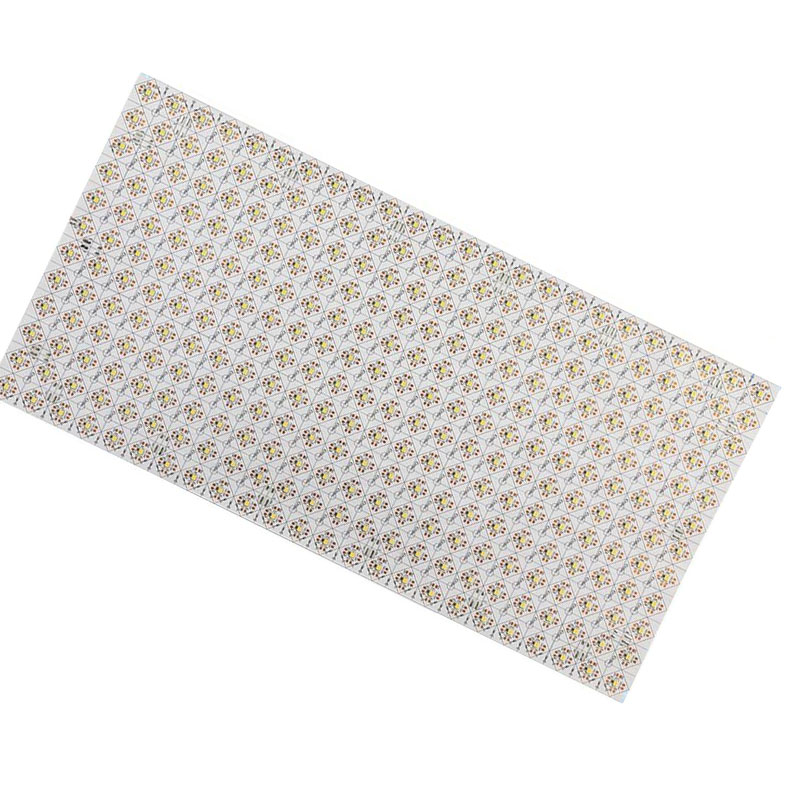

Trim to fit a unique shape and wrap corners with LLS series LED Light Sheet. This flexible sheet contains 24 x 12 rows that can be segmented in any shape simply by cutting along the horizontal, vertical, or diagonal black lines. A high density of LED chips ensures even light distribution, even in signs or backlighting with low clearance. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:

• Dimmable
• Max Run with Class 2 wiring: 3 sheets
• Dimensions: 18.9" x 9.45"
• Enclosed fixture rated 30 mm
• IP20 rated for dry conditions
• 50000 hours L70 lifespan
• 24 VDC
• UL Listed
• 5-year warranty

​
Specifications
Ambient Operating Temperature：    -20~+45 °C (-4~+113 °F)
Certifications/Compliance：    CE, UL Listed
CRI：    80+
Current Draw：     1.3 A
Dimensions：    18.9in x 9.5in
Dimmable：    Yes
Efficacy：    92 lm/W
Enclosed Fixture Rated：    Yes
Environmental Rating:     Non-weatherproof
Finish:    White
Input Connection Type:    Pigtail
IP Rating:     IP20
LED Beam Angle:     120°
LED Type:    2835 SMD
LEDs per Segment:    1
Max Run (Class 2):     3 Sheets
Operating Voltage:    24 VDC
Power Consumption:    30 Watts
Rated Life (L70):    50000 Hours
Segment Size:    0.79 in. x 0.79 in. (20 mm x 20 mm)

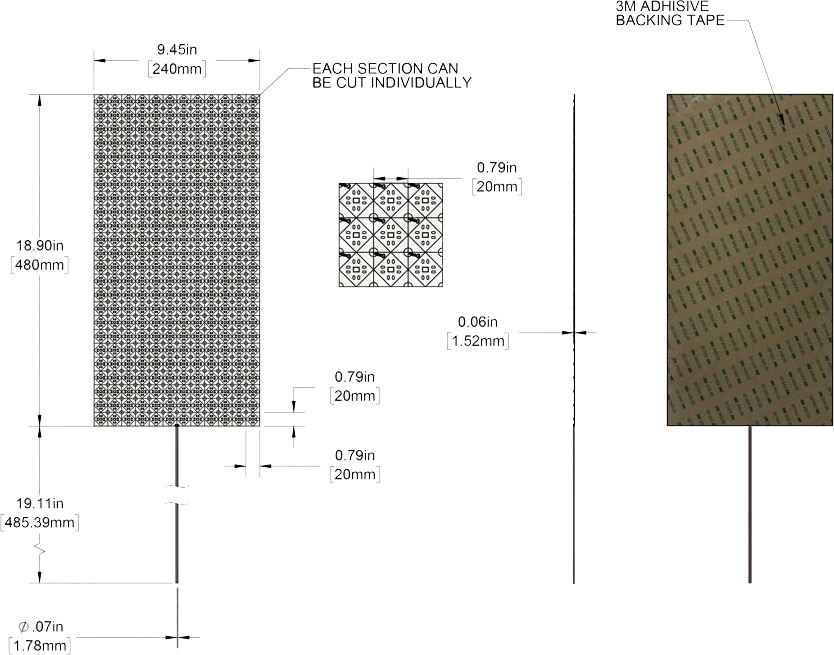

Dimensional Drawings

​
