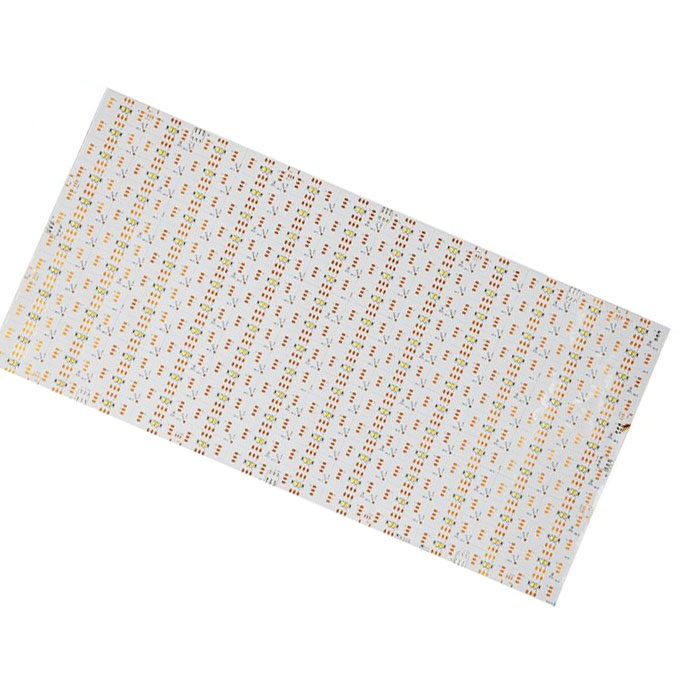

Trim the LED light sheet to fit unique shapes or wrap corners. This flexible sheet contains 288 segments that can be cut in any configuration along the horizontal, vertical, or diagonal lines. The 2 in x 1 in segments ensure even light distribution, ideal for signs or backlighting. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots. Select CCT using a controller (sold separately).

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:

• Segment size: 2 in. (50.8 mm) x 1 in. (25.4 mm)
• Max run with Class 2 wiring: 3 full sheets
• Enclosed fixture rated 30 mm
• Use a controller to select desired CCT (sold separately)
• IP20 rated for dry conditions
• PWM dimmable
• 24 VDC
• UL Listed
• 5-year warranty

Specifications
Ambient Operating Temperature:    -20~+45 °C (-4~+113 °F)
CCT Value:     2700K-6500K
Certifications/Compliance:    CE, UL Listed
CRI:    80+
Color/CCT:     Tunable White
Current Draw:     1.3 A
Dimensions:    24in x 12in
Dimmable:    Yes
Efficacy:    92 lm/W
Enclosed Fixture Rated:    Yes
Environmental Rating:     Non-weatherproof, Suitable for Dry Locations
Finish:    White
Input Connection Type:    Pigtail
IP Rating:     IP20
LED Beam Angle:     120°
LED Type:    2835 SMD
LEDs per Segment:    2
Max Run (Class 2):     3 Sheets
Operating Voltage:    24 VDC
Power Consumption:    30 Watts
Rated Life (L70):    50000 Hours
Segment Size:    2 in. x 1 in. (50.8 mm x 25.4 mm)

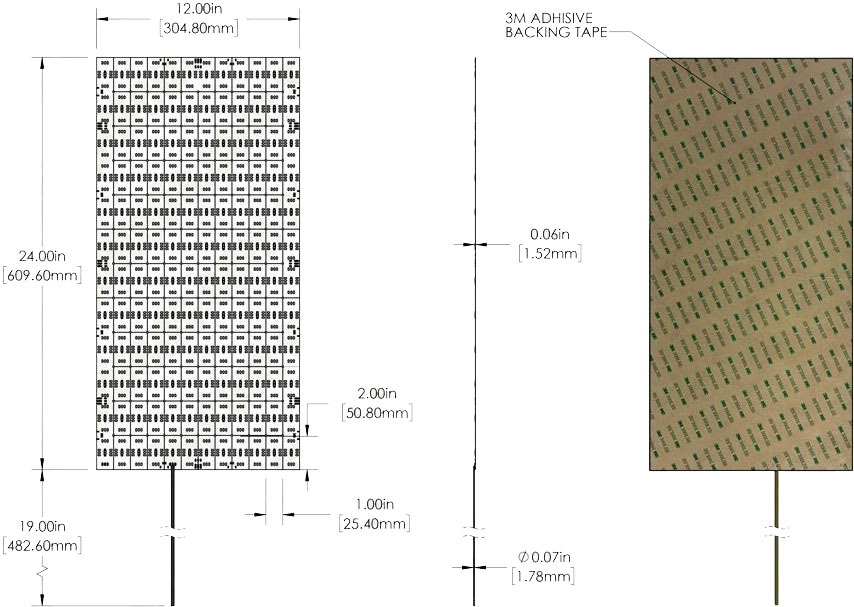

Dimensional Drawings
