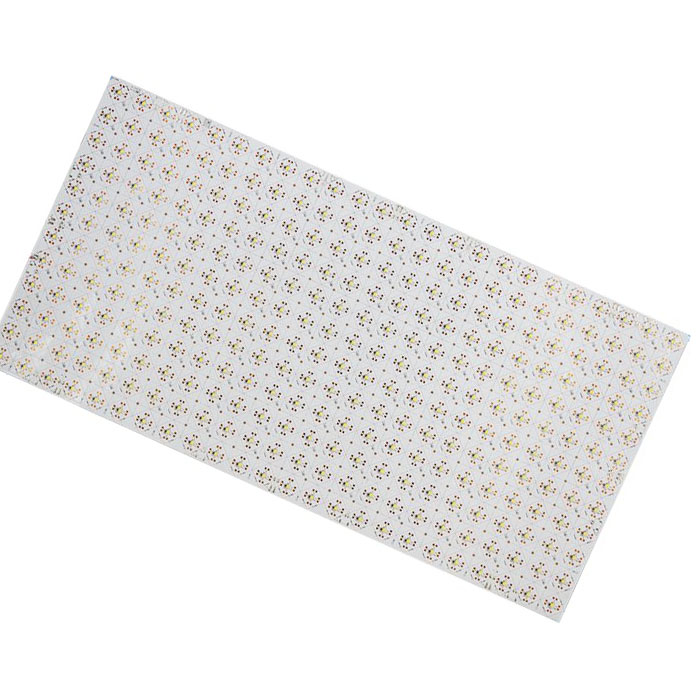

Trim the LED light sheet to fit unique shapes or wrap corners. This flexible sheet contains 24 columns x 12 rows that can be segmented in any shape by cutting along the horizontal, vertical, or diagonal lines. The 1-inch segments ensure even light distribution, ideal for signs or backlighting. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:

• Segment size: 1 in. (25.4 mm) x 1 in. (25.4 mm)
• Max run with Class 2 wiring: 3 full sheets
• Enclosed fixture rated 30 mm
• IP20 rated for dry conditions
• PWM dimmable
• 24 VDC
• UL Listed
• 5-year warranty

Specifications
Ambient Operating Temperature:    -20~+45 °C (-4~+113 °F)
Certifications/Compliance:    CE, UL Listed
CRI:    80+
Current Draw:     1.3 A
Dimensions:    24in x 12in
Dimmable:    Yes
Efficacy:    92 lm/W
Enclosed Fixture Rated:    Yes
Environmental Rating:     Non-weatherproof, Suitable for Dry Locations
Finish:    White
Input Connection Type:    Pigtail
IP Rating:     IP20
LED Beam Angle:     120°
LED Type:    2835 SMD
LEDs per Segment:    1
Max Run (Class 2)：     3 Sheets
Operating Voltage：    24 VDC
Power Consumption：    30 Watts
Rated Life (L70)：    50000 Hours
Segment Size：    1 in. x 1 in. (25.4 mm x 25.4 mm)

Dimensional Drawings

​
