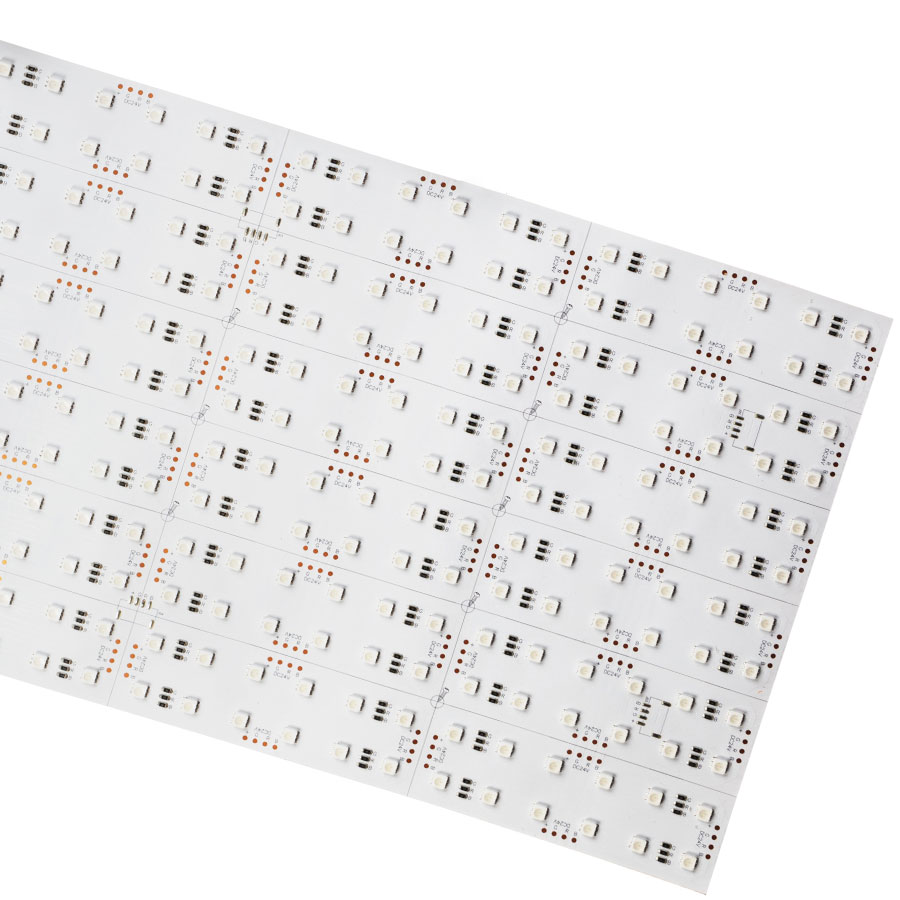

The LLS RGB series is a fully customizable and color-changing flexible LED sheet. This sheet is perfect for backlighting displays, light boxes, letters, logos, billboards, translucent materials, and more. The high density of LEDs, 288 LEDs per sheet, provides smooth, bright illumination free of hotspots. Easily link together multiple sheets or pieces using the onboard soldering connectors.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:

• Cuttable segments: every 4-3/4" x 1-1/2"
• 12 LEDs per segment
• 4 x RGB solder points per segment
• Dimmable
• Max Run with Class 2 wiring: 1.5 sheets
• Dimensions: 18.9" x 9.5"
• Thickness: 0.08in (2mm)
• Wire length: 19.5" 22 AWG power wire
• IP20 rated for dry conditions
• 50000 hours L70 lifespan
• 24 VDC
• UL Listed, CE certified
• 5-year warranty

​Specifications
Ambient Operating Temperature：    -20~+45 °C (-4~+113 °F)
Certifications/Compliance：    CE, UL Listed
Color/CCT：     RGB
Current Draw：     2.5 A
Dimensions：    18.9in x 9.5in
Dimmable：    Yes
Enclosed Fixture Rated：    Yes
Finish：    White
Input Connection Type：    Pigtail
IP Rating：     IP20
LED Beam Angle：     120°
LED Type：    2835 SMD
LEDs per Segment：    12
Max Run (Class 2)：     1.5 Sheets
Operating Voltage：    24 VDC
Power Consumption：    60 Watts
Rated Life (L70)：    50000 Hours
Segment Size：    4.72 in. x 1.58 in. (120 mm x 40 mm)

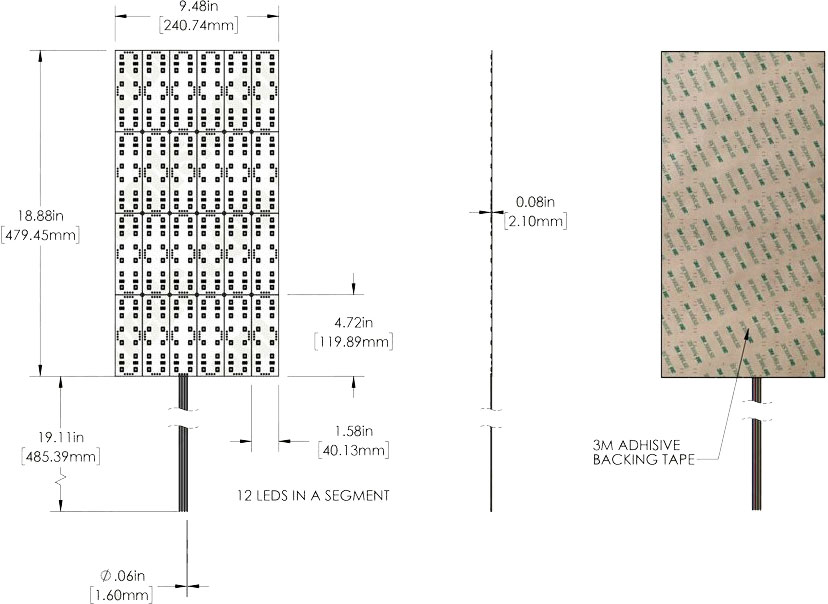

Dimensional Drawings
