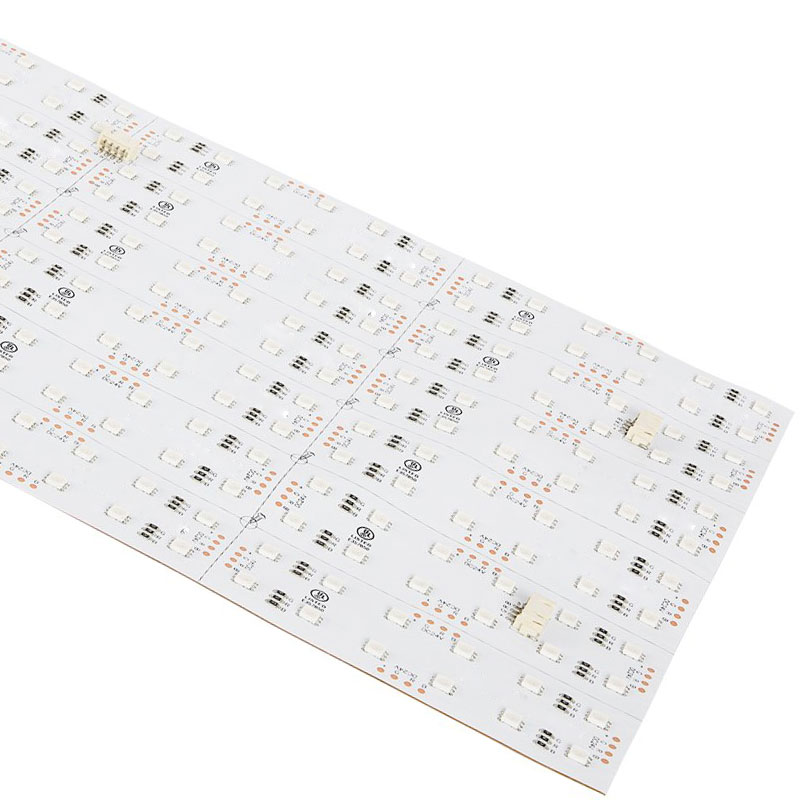

Wrap corners and trim to fit a unique shape with the RGB LED Light Sheet. The 18.9” x 9.5” sheet can be cut along the horizontal, vertical, or diagonal black lines of the 6 x 4 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included 8cm interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.

Product Details:

• Segment size: 4.72" x 1.58"- 24 segments per sheet
• Max Run with Class 2 wiring: 1.5 sheets
• Includes one 0.5m pigtail connector and one 8cm interconnect
• Input connection: 4-pin XH connector
• PWM dimmable
• 24 VDC
• UL Listed
• 5-year warranty

Specifications
Ambient Operating Temperature:    -20~+45 °C (-4~+113 °F)
Certifications/Compliance:    UL Listed
Color/CCT:     RGB
Current Draw:     2.5 A
Dimensions:    18.9in x 9.5in
Dimmable:    Yes
Enclosed Fixture Rated:    Yes
Finish:    White
Input Connection Type:    Pigtail, XH 4-Pin Connector
IP Rating:     IP20
LED Beam Angle:     120°
LED Type:    5050 SMD
LEDs per Segment:    12
Max Run (Class 2):     1.5 Sheets
Operating Voltage:    24 VDC
Output Connection Type:    XH 4-Pin Connector
Power Consumption:    60 Watts
Rated Life (L70):    50000 Hours
Segment Size:    4.72 in. x 9.5 in. (480 mm x 240 mm)

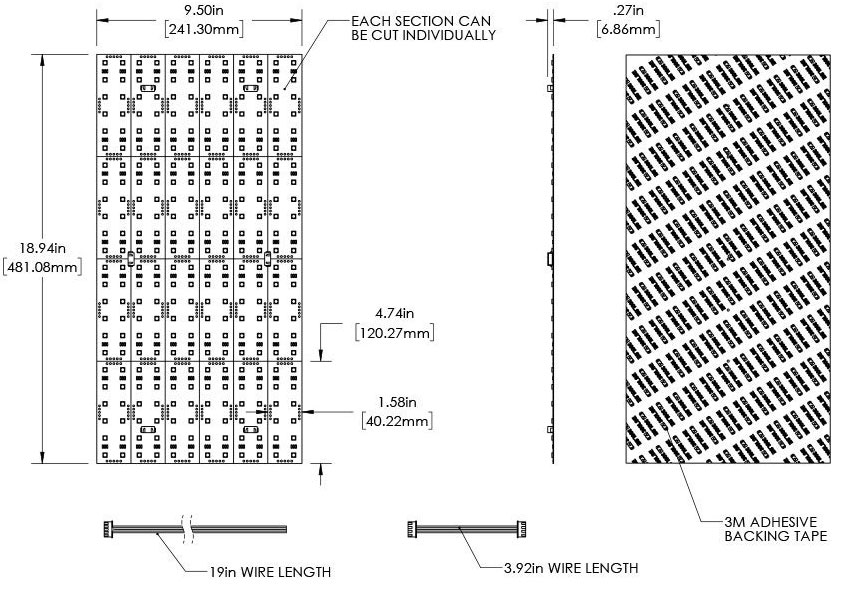

Dimensional Drawings
