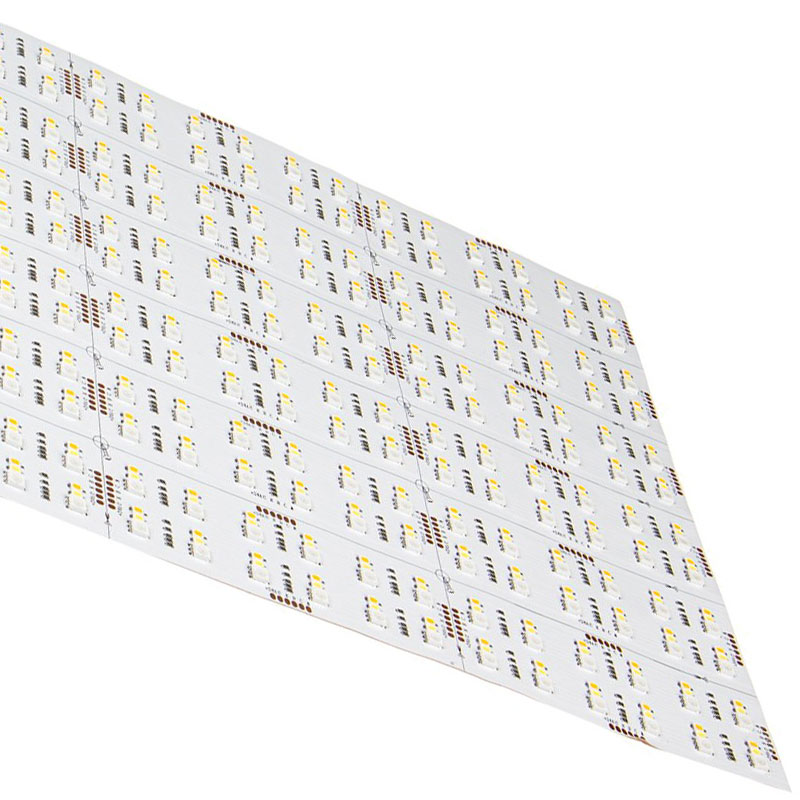

Wrap corners and trim to fit a unique shape with the RGB+CCT LED Light Sheet. The 18.9” x 9.5” sheet can be cut along the horizontal, vertical, or diagonal black lines of the 6 x 4 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots. The light sheet is RGB+CCT and can display a range of RGB colors and 2700K-6500K.

Product Details:

• Segment size: 4.72" x 1.57"- 24 segments per sheet
• Max Run with Class 2 wiring: 1 sheet
• PWM dimmable
• 24 VDC
• UL Listed
• 5-year warranty

Specifications
Ambient Operating Temperature：    -20~+45 °C (-4~+113 °F)
CCT Value：     2700K-6500K
Certifications/Compliance：    UL Listed
CRI：    80+
Color/CCT：     RGB+Tunable White
Current Draw：     3.3 A
Dimensions：    18.9in x 9.5in
Dimmable：    Yes
Efficacy：    57 lm/W
Enclosed Fixture Rated：    Yes
Finish：    White
Input Connection Type：    Pigtail
IP Rating：     IP20
LED Beam Angle：     120°
LED Type：    2835 SMD, 5050 SMD
LEDs per Segment：    36
Max Run (Class 2):     1 Sheet
Operating Voltage:    24 VDC
Power Consumption:    80 Watts
Rated Life (L70):    50000 Hours
Segment Size:    4.72 in. x 1.57 in. (120 mm x 40 mm)

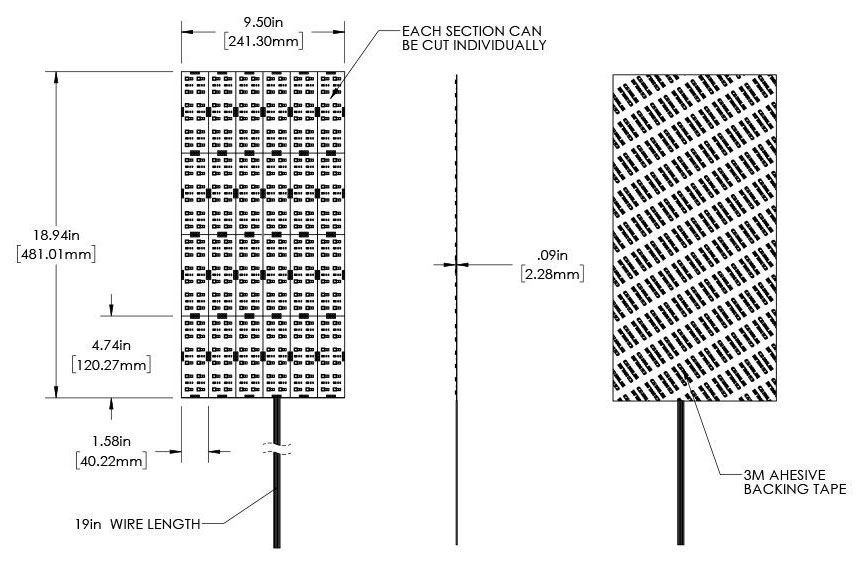

Dimensional Drawings
