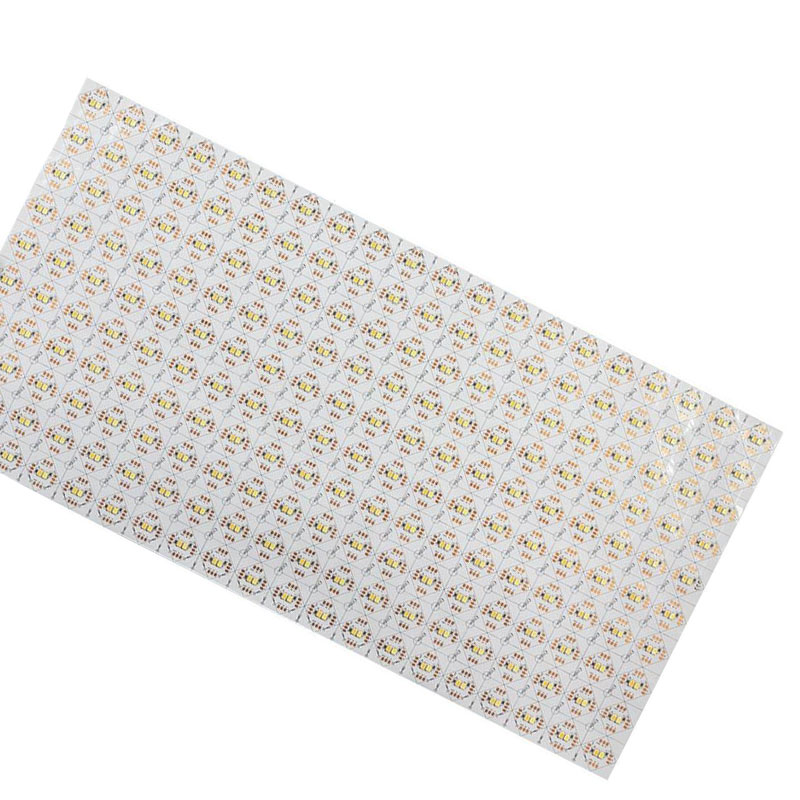

    Tunable White LED Back Lighting Sheet - 18.9" x 9.5" - 24V - IP20 - Tunable White 2700K-6500K

      (7 Reviews) | Write a review
    SKU: LLS-H80-C2A-60B01-24V
    Discontinued
    Starting at: $74.99
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,21 and Fri,Dec,27. order with 2days,9hrs and 31 min.

    Wrap corners and trim to fit a unique shape with LLS series LED Light Sheet. Cut along the horizontal, vertical, or diagonal black lines of the 20 x 10 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the high density of LED chips ensures even light distribution. Peel off the 3M™ adhesive backing, or fasten it with screws at the indicated spots to apply this light sheet. It can be tuned to emit the exact temperature of white needed for changing occasions.

    Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

    Product Details:

    • Dimmable
    • Max Run with Class 2 wiring: 1.5 sheets
    • Dimensions: 18.9" x 9.5"
    • Enclosed fixture rated 36 mm
    • IP20 rated for dry conditions
    • 50000 hours L70 lifespan
    • 24 VDC
    • UL Listed
    • 5-year warranty

    Specifications
    Ambient Operating Temperature:    -20~+45 °C (-4~+113 °F)
    CCT Value:     2700K-6500K
    Certifications/Compliance:    CE, UL Listed
    CRI:    80+
    Color/CCT:     Tunable White
    Current Draw:     2.5 A
    Dimensions:    18.9in x 9.5in
    Dimmable:    Yes
    Efficacy:    92 lm/W
    Enclosed Fixture Rated:    Yes
    Environmental Rating:     Non-weatherproof
    Finish:    White
    Input Connection Type:    Pigtail
    IP Rating:     IP20
    LED Beam Angle:     120°
    LED Type:    2835 SMD
    LEDs per Segment:    2
    Max Run (Class 2):     1.5 Sheets
    Operating Voltage:    24 VDC
    Power Consumption:    60 Watts
    Rated Life (L70):    50000 Hours
    Segment Size:    0.95 in. x 0.95 in. (24 mm x 24 mm)

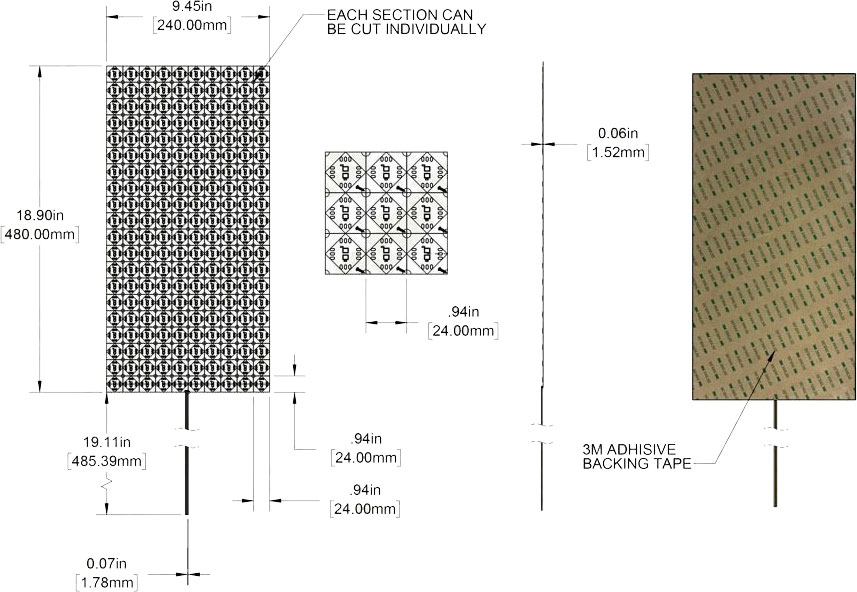

    Dimensional Drawings
