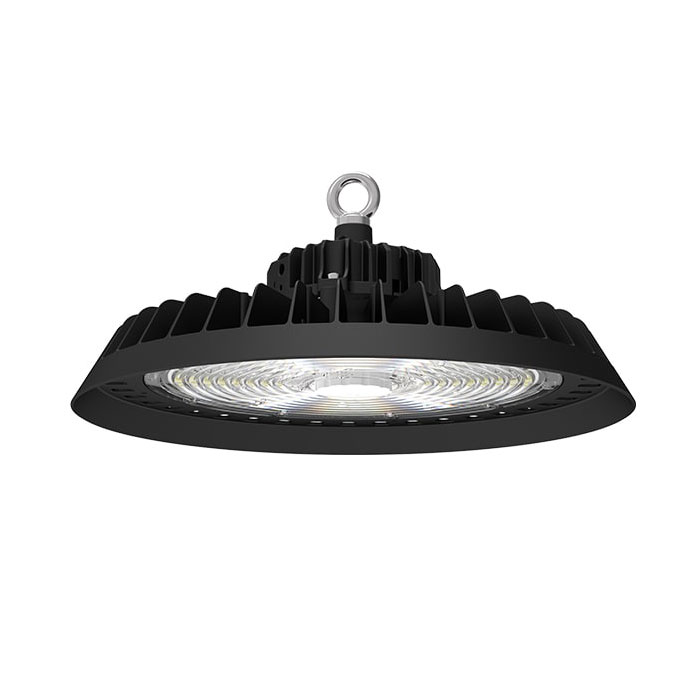

UDSR series 200W UFO LED High Bay has precise optics and durable construction for a wide range of applications and hanging heights. Replace conventional HID or fluorescent high-bay lighting systems in gymnasiums, warehouses, storage facilities, and more. With efficient LED performance, this fixture requires zero maintenance and qualifies for DLC Premium utility rebates. Rugged powder coated aluminum housing and tempered glass lens withstand water and debris. Thermal fins reduce heat buildup. Integrated motion sensor can be programmed and paired with multiple lights with optional remote (sold separately) for increased time and energy savings.

Product Details:

• Available in white
• Integrated motion sensor programmable with handheld remote - sold separately
• Motion sensor settings include dimming, timer, and detection range
• Compatible with prismatic acrylic reflector for 90° beam spread
• Operating temperature -40°–122° F
• 100-277 VAC input
• Rated IP65 for wet locations
• Rated 50000 hours L70 lifetime
• DLC Premium, Certified by UL
• 5 year warranty

Warranties & Certifications

Specifications
CRI:     80+
Watt:    200W
Lumen:    32,000Lumen
Efficiency:    160Lm/W±3%
Chip Brand:    Osram 2835
Input Volt:    100-277Vac
Driver:    Moso Driver G6‐200M260A12H/ Sosen Driver SS‐200CNL‐130BH
Color Temp:    3000K-6000K
Size:    380*183mm
Beam Angle:    60/ 90/ 120 degree
Certificates:    ETL cETL DLC Premium TUV CB SAA LM79 LM80

View Dimensional Drawings

Motion sensor can intelligently identify the scene, thereby increasing or reducing the emitted light, which reduces the energy consumption of the lamp and has a longer service life.
1.Light automatically on when ambient brightness is lower than preset lux level;
2.With insufficient ambient brightness, light dims to 100% when motion detected;
3.Light dims to standby level if no motion detected after holdtime;
4.Light off when ambient lux level is higher than preset lux amount;

Lamp comes with short cap,you are able to twist and lock the sensor easily.Motion sensor need to be ordered seperately,easy for stock.

This item is available to dail switch from 100watt to 120 Watt 150watt and 200Watt, it's easier to stock only one item and sell at different wattage.

Photometrics
60/90/120 degree;

Application
Suitable for indoor sport field, Exhibition,Warehouses, Toll station, shop, workshop etc.
