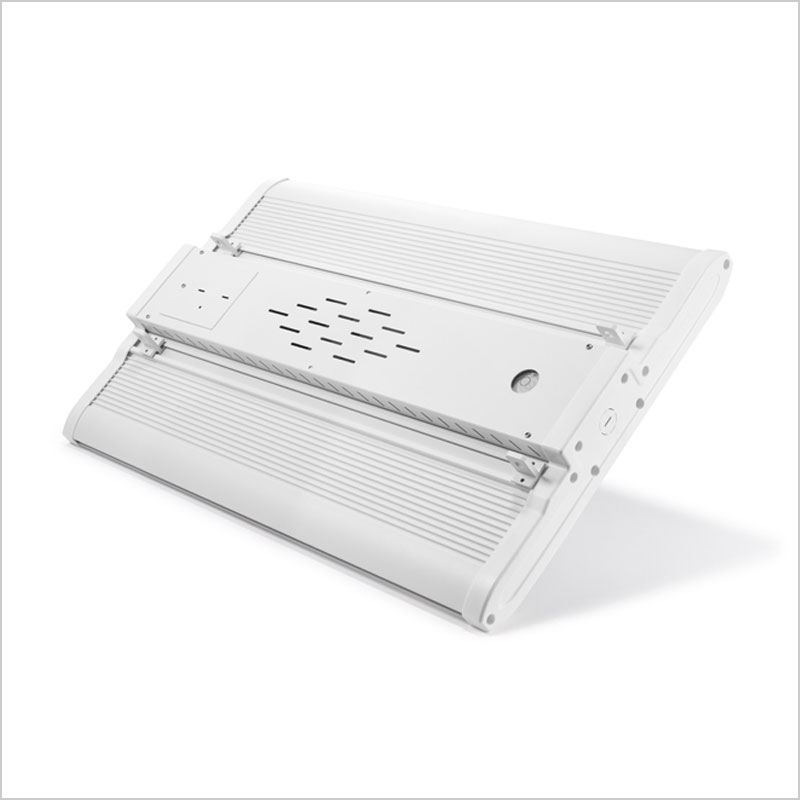

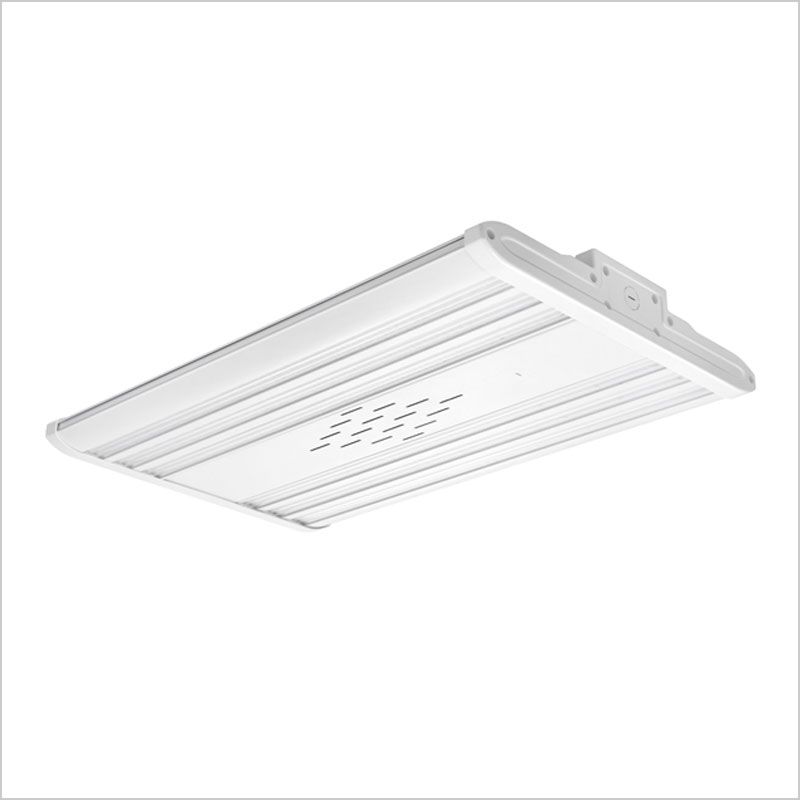

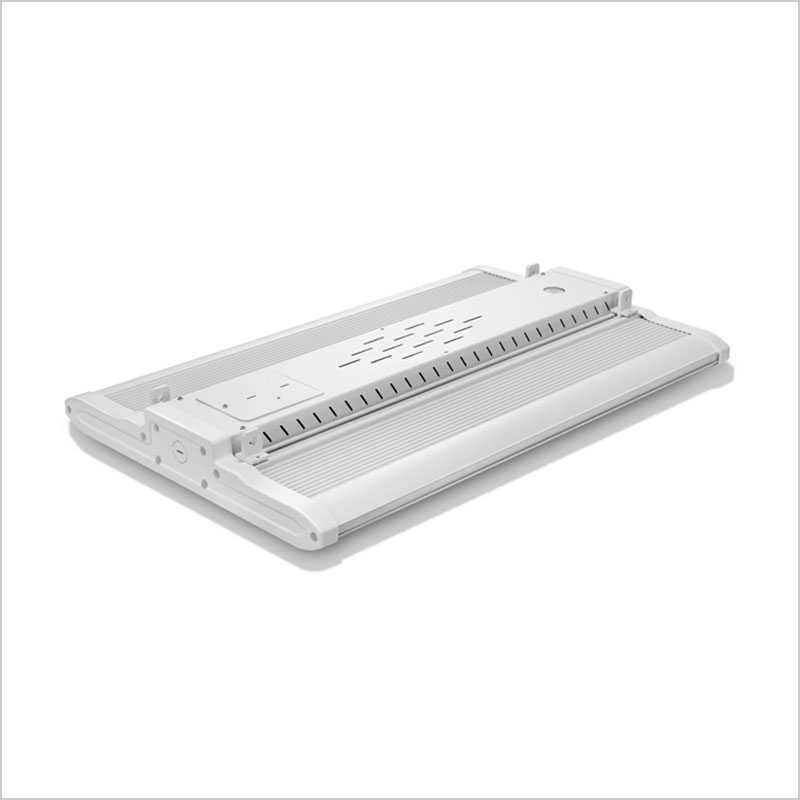

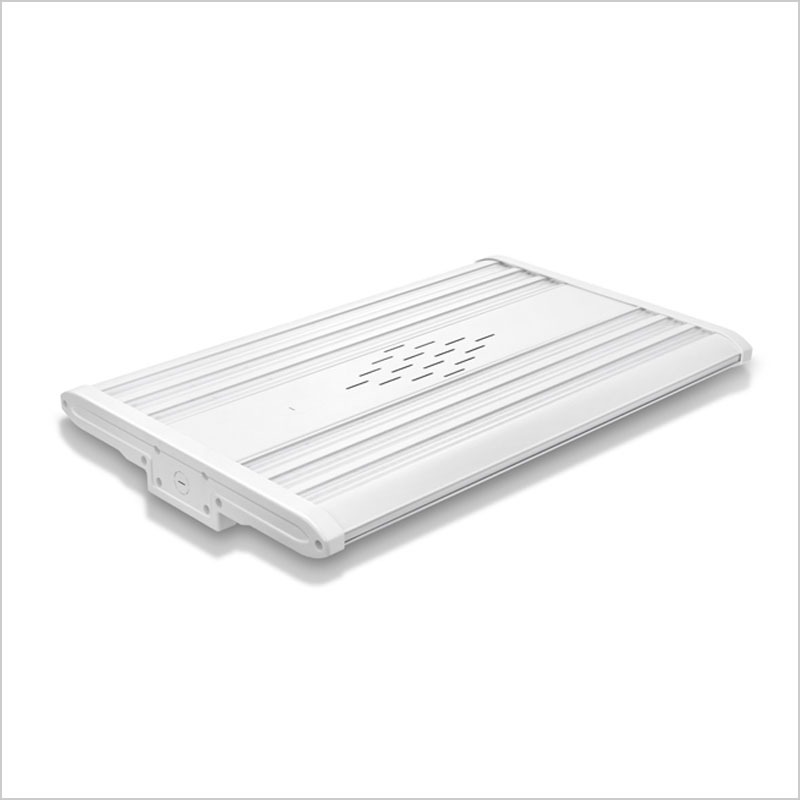

LHBDS series Linear High Bay is DLC Premium certified, offering utility rebate savings in addition to improved performance and longer lifespan. With a sleek design, it’s a staple lighting solution for large commercial areas. Steel housing has a white finish, and construction that ensures durability and cool operation. Polycarbonate lens is frosted to provide a wide distribution of smooth, even light. Install in the high ceilings of a packaging facility or factory, instead of inefficient metal halide fixtures for maximized energy savings. Other mounting accessories and wire guard available (sold separately).

Product Details:

*This product use durable and long life span LED light source, downy light, no glare, simple design.
*Mainly use the aluminum alloy as the material with PMMA lens .Work safely and durable under
different conditions.
*Adopted 2835 SMD Led light source,Large-Size Chip with High brightness and low light fades,
Enough Currentmargin, Led chip Rated current 150mA,actual use only60-120mA,
Extend led Lights lifespan and increase Light Efficiency.
*Adopted Meanwell Driver, Universal AC Input/Full range up to AC120-277V
Protection function: short circuit/over current/over voltage/over temperature, Built-in.
active PFC function, PF≥0.9 and Conversion efficiency≥90% Fully encapsulated with IP65 Level.
*Light board and power supply separately Thermal conductivity,Air convection design for reliable lifetime.
*Quick wiring plate on back of fixture for easy access
*Lumen output : 125-130lm/w,  160-170lm/w
*Longbright brand isolated driver,PF>0.9, THD≤ 20 %
*AC120-277V / 347-480V, 0/1-10V dimmable
*IP20 rated
*DLC Premium, Certified by UL
*5 year warranty

Applications
Big Box Retailers,Packaging Facilities,Distribution Centers,Manufacturing Plants,Warehouses,Factories,Shops,Gymnasiums

Specifications
Beam Angle:    120°/90°/60°
CRI:     80+
Certifications/Compliance:    Certified by UL, DLC Premium
Color Temperature:     6000K/5000K/4000K/3000K
Dimmable:    Yes
Dimming:    1-10V
Efficacy:    130 lm/w
Environmental/IP Rating:     Non-Waterproof IP20
Finish:    White
Included Accessories:    Hanging/Suspension Kit
LED Lifetime    50000 Hours
Length:    36in (3ft)
Lens Type    Frosted
Lumen:    36400 Lumen
Maximum Current Draw:    1.81 A @ 277 VAC
Microwave Motion Sensor:    Optional
Operating Temperature:    -40~+45 °C (-40~+113 °F)
Operating Voltage Range:    120~277 VAC
Output Equivalency:    1000 Watt Metal-Halide
Power Factor:    ≥0.9
Product Materials:    Aluminum Housing, Polycarbonate Lens
Wattage    280 Watts
All specifications are subject to change without notice.

TECHNICAL DETAILS

**All specifications are subject to change without notice.

Installations on UL LED High Bay Light:
1.Turn power off before inspection,installation or removal.
2.The installation should be performed by qualified electricians or lighting technicians.
3.Before conducting any installation,maintenance,or removal,disable all power to the luminaries
and wait until the fixture cool down.
4.Do not touch the fixture while it is in service.
5.If there is any problem with the fixture,DO turn off power and DO NOT attempt repair unless
you are a qualified technician or the customer service member.
