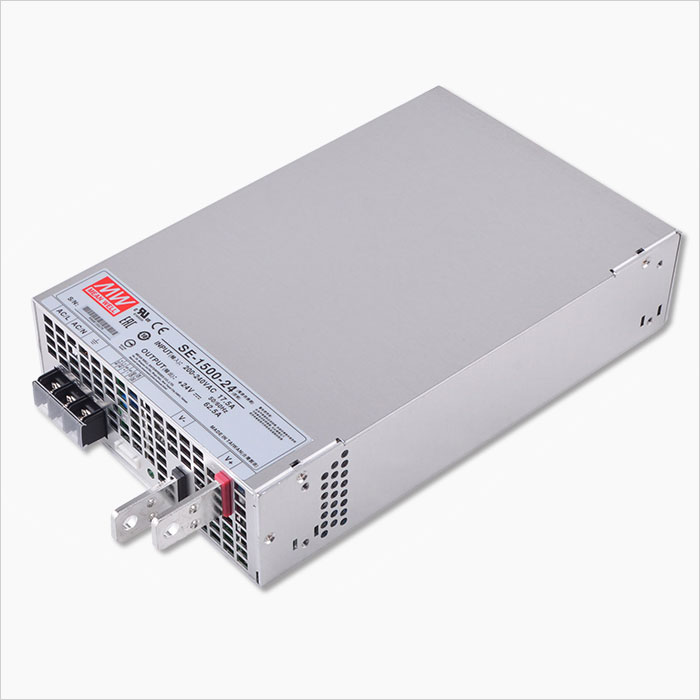

Mean Well LED Switching Power Supply - SE Series 1500W Enclosed Power Supply - 24V DC
Input Voltages: 180 ~ 264 VAC or 254 ~ 370 VDC
High power models with safety certificate
Non-PFC, complete protections
Protections: Short circuit / Overload / Over voltage / Over temperature
100% full load burn-in test
LED indicator for power on
Built-in DC fan
Low cost, high reliability
2 years warranty
Warranties & Certifications
TECHNICAL DETAILS
Connection Type: Screw Terminals
Dimming Control: None
Dimmable: No
Input Frequency Range: 47 ~ 63 Hz
Input Voltage: 180 ~ 264 VAC
Input Voltage DC: 254 ~ 370 VDC
IP Rating: Non-Waterproof
Output Channels: 1
Output Rated Current: 62500mA
Output Voltage DC: 24 VDC
Built-in PFC Function: No
Power Supply Type: Indoor
Standards And Certifications: RoHS Compliant, UL Recognized
UL Standard Number: UL 60950-1
Volts: 24 VDC
Wattage: 1500 Watts
Package Weight: 13oz (0.37kg)
Package Dimensions: 5.55" (14cm) x 2.72" (7cm) x 2.72" (7cm)
In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable.
All specifications are subject to change without notice.
