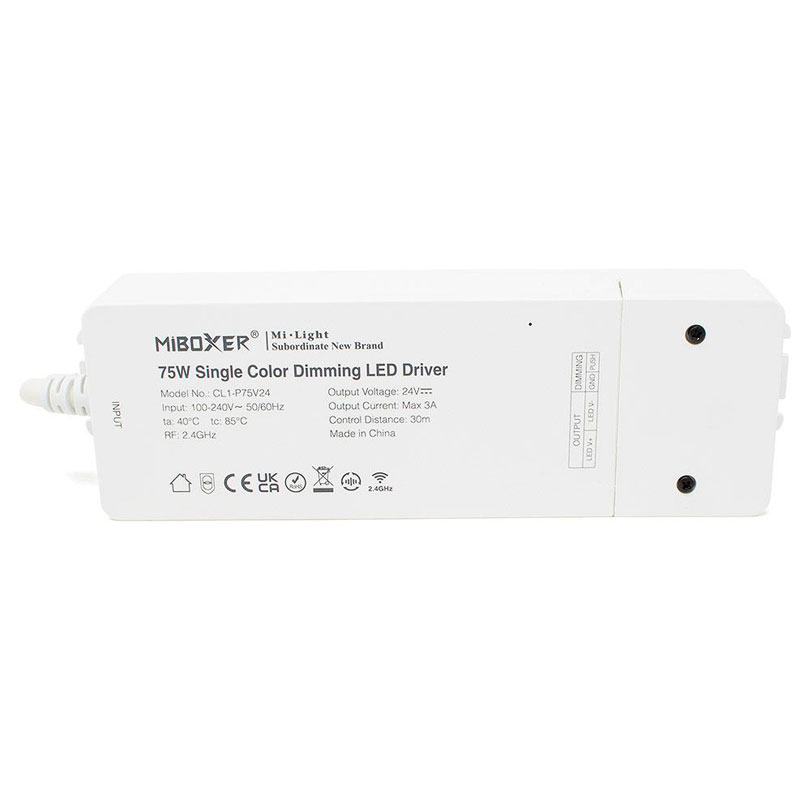

This high-quality Single Channel RF 2.4GHz 24V Dimmable LED Driver from Mi-Light can be paired to a 2.4GHz RF Mi-Light / Mi-Boxer Handset or Wall Panel. Control your low voltage 24V remote controlled single colour LED lighting products with ease.
The driver can also be paired to your smartphone by downloading the "Mi-Boxer Smart" application. This allows voice control through your Amazon Alexa or Google Home smart speaker.
Note: An Additional hub is required for these features to work.
The maximum load on this dimmable 24V LED driver is 3A (3A / Channel). The driver is powered by a 100-240v AC 50/60Hz mains supply (no need for a separate driver). The driver provides an output voltage of 24V DC (Direct Current)
You can control your 24V DC single colour lighting products up to a maximum of 75W. The driver also has connections for a "Push Dimmer" switch which can be hard-wired to the driver to allow "Push Dimming" of your lighting.
This RF LED Driver is great for controlling your single colour temperature LED lights such as warm white, cool white and single colour LED Lights, these products include:

1. LED Light Bulbs
2. LED Downlighters
3. LED Strip Lights / LED Tapes
4. And many more! - View our range of Mi-Light Products

Make sure your LED lighting is connected to a suitable power supply. Then simply wire your smart light into your stylish dimmable driver and enjoy full control over your smart home LED lighting system.
Compatible Mi-Light controllers for this single colour LED controller can be found on the downloadable datasheet supplied.
It is possible to control your single colour LED Strip lights with this Mi-Light Driver. This LED Driver can be paired with your 24V LED Strip Lights to suit your mood.
Our whole range of RF LED Drivers include:

1. Single-channel units
2. Dual-channel (CCT)
3. RGB (Three-channel)
4. RGBW (Four-channel)
5. RGB+CCT (five-channel)

When using RF control from a 2.4GHz RF handsets or wall panel, this driver features an auto transmitting & synchronising function. Multiple drivers can be paired to the same single zone on the controller. Make sure they are all within 30m of each other.
Compatible Mi-Light LED lighting is sold separately. All Mi-Light products purchased from Smart Bright LEDs carry an exclusive five-year warranty.

For product assistance please contact us by telephone, email or via the website live chat.

Feature

1. Single Colour RF 2.4GHz Driver
2. Compatible with Mi-Light / MiBoxer handsets and wall panels
3. Smartphone Compatible
4. 30m signal transmitting and synchronization between receivers
5. Quick and easy to pair with handsets and wall panels

Technical Specification
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Wattage:    75W
Input Voltage:    100v - 240v AC
Output Voltage:    24v DC
Connectivity:    RF
Size:    L190mm x W53mm x H32mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Operation Frequency:    WiFi 2.4GHz
Operating Temp:    -10 to 40ºC
Total Output:    Max 3A
Output Max:    3A/Channel
