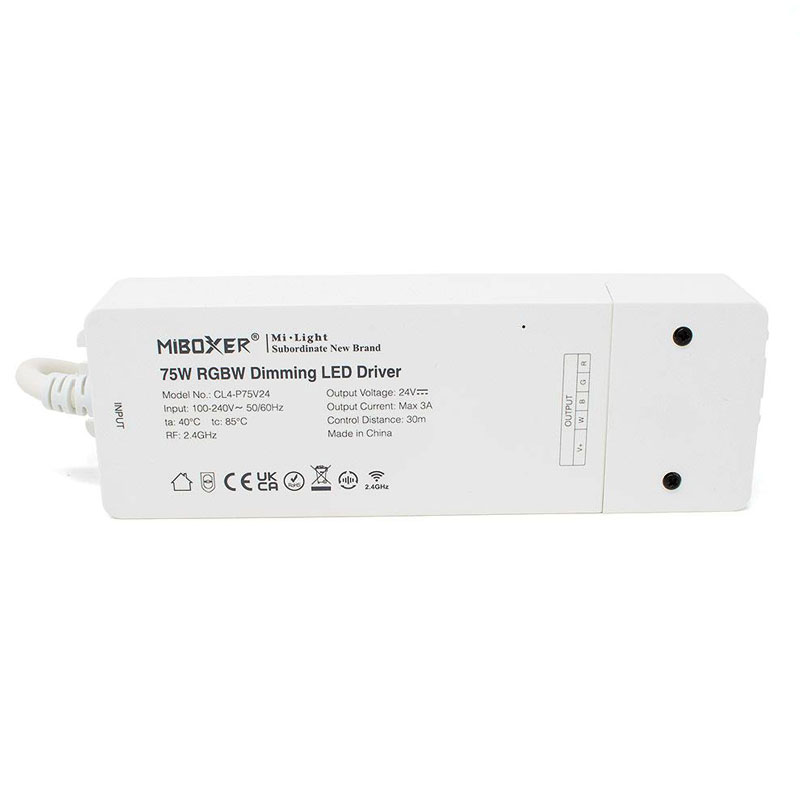

This four channel 24v LED Driver can control and power your RGBW Colour Changing 24v LED products when paired to a compatible Mi-Light / Mi-Boxer RF handset or wall panel on the 2.4GHz frequency.  The driver also features a handy "Push Dim" facility which when connected to a momentary "Push Switch" will switch and dim your lighting manually.
Note: The "Push Dim" facility does not operate the colour of your lighting, just the brightness level of the colour selected and the ability to switch it on and off.
In addition to being able to pair with the compatible Mi-Light controllers, the driver can also be paired to a smart phone application and it also supports third party voice control products such as smart speakers (Additional hub required for these features).
The driver is powered by a 100-240v AC 50/60Hz mains supply (no need for a separate driver) and it features auto transmitting & synchronising functions so when multiple drivers are paired to the same zone on the controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the drivers in the group will synchronise your lighting together with no interconnecting control cables.
Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.

The maximum rated load on the 24v output is 3A.

Feature

1. RGBW RF 2.4GHz Driver
2. Compatible with Mi-Light / MiBoxer handsets and wall panels
3. Smartphone Compatible
4. 30m signal transmitting and synchronization between receivers
5. Quick and easy to pair with handsets and wall panels

Technical Specification
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Wattage:    75W
Input Voltage:    100v - 240v AC
Output Voltage:    24v DC
Connectivity:    RF
Size:    L190mm x W53mm x H32mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Operation Frequency:    RF 2.4GHz
Operating Temp:    -10 to 40ºC
Total Output:    Max 3A
Output Max:    3A/Channel
