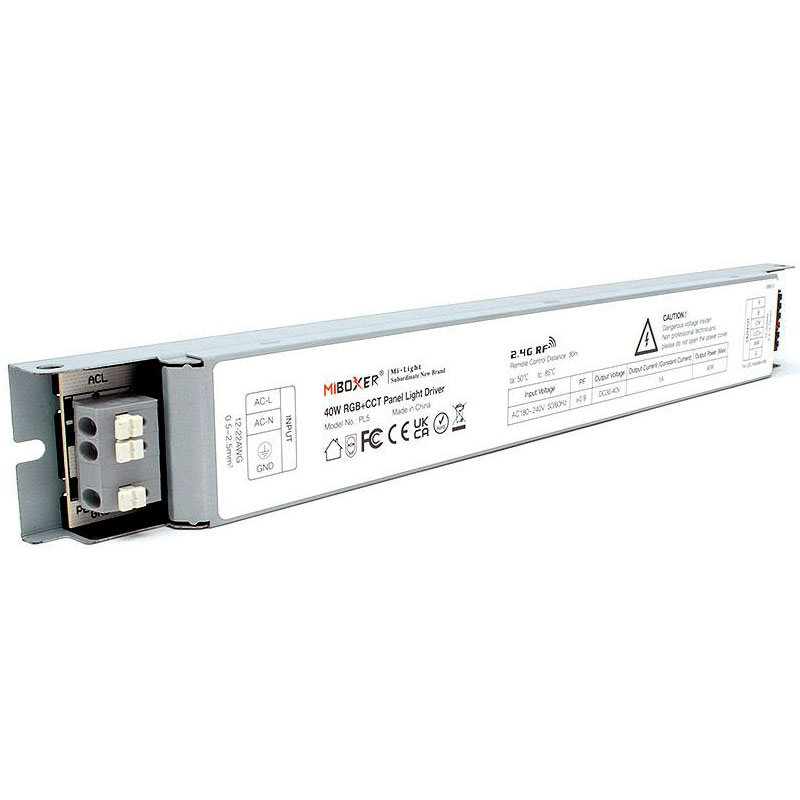

SBL-PL5 MiBoxer 40W RGB+CCT Panel Light Driver
This high quality five channel (RGB+CCT) constant current 40w LED driver is perfect for controlling your constant current RGB+CCT colour changing and dual white temperature adjustable LED ceiling panels by RF remote control. The long thin design of the driver and it's strong metal casing makes it an ideal product for installation in ceiling voids.
The driver can be paired to a number of compatible Mi-Boxer / Mi-Light handsets and wall panels that work off the popular 2.4GHz RF frequency and as the driver features auto transmitting & synchronising functions, when multiple drivers are paired to the same zone on the controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the drivers in the group will synchronise your lighting together with no interconnecting control cables giving you full control over millions of colour combinations plus colour temperature adjustment from Warm White (2700K ) to Cool White (6500K). The maximum load on this driver is 40w and it should be connected to a mains power supply of 180v - 240v AC 50/60Hz.
In addition to being able to pair with the compatible Mi-Light controllers, the receivers can also be paired to a smartphone application and they also support third party voice control products such as smart speakers (an additional 2.4GHz gateway is required for these features).
Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.
Feature
- RGB+CCT Driver
- For use with (PRODUCT CODE)
- Smartphone Compatible
- 30m signal transmitting and synchronization between receivers
- Quick and easy to pair with handsets and wall panels
Technical Specification
Manufacturer: Mi-Light / MiBoxer
Product Type: Controller / Driver
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 180v - 240v AC
Output Voltage: DC 30-40V
Connectivity: RF
Size: L300mm x W37mm x H22.5mm
Dimmable: No
Power Factor >: 0.9
Wireless Range: Up to 30 metres
Transmitting Power: 6dBm
Operation Frequency: 2.4GHz
Operating Temp: -20~60°C
Output Max: MAX 40W
