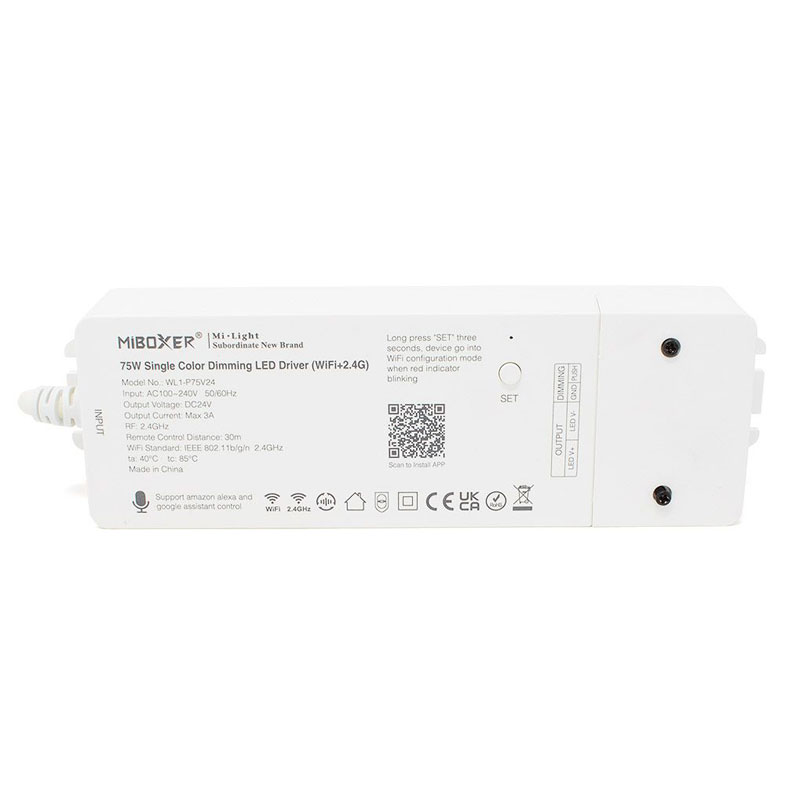

This high-quality Single Channel Bluetooth and 2.4GHz LED Strip WiFi Controller / Driver from Mi-Light can be paired to a 2.4GHz RF Mi-Light / Mi-Boxer Handset or Wall Panel or through the smartphone app. Control your low voltage 24V remote controlled single colour LED lighting products with ease.
Using its Wi-Fi or Bluetooth connection, the driver can also be paired to your smartphone by downloading the "Mi-Boxer Smart" application. This allows voice control through your Amazon Alexa or Google Home smart speaker.
Note: Bluetooth control works when the Wi-Fi function is not available allowing short-range control over the driver.
The maximum load on this dimmable LED driver is 3A (3A / Channel). An input voltage of 100V-240V AC (Alternating Current) is required. The driver provides an output voltage of 24V DC (Direct Current)
You can control your 24v DC single colour lighting products up to a maximum of 75W. The driver also has connections for a "Push Dimmer" switch which can be hard-wired to the driver to allow "Push Dimming" of your lighting.
This RF LED receiver is great for controlling your single colour temperature LED lights such as warm white, cool white and single colour, these products include:

1. LED Light Bulbs
2. LED Downlighters
3. LED Strip Lights / LED Tapes
4. And many more! - View our range of Mi-Light Products

Make sure your LED lighting is connected to a suitable power supply. Then simply wire your smart light into your stylish dimmable driver and enjoy full control over your smart home LED lighting system.
Compatible Mi-Light controllers for this single colour LED controller can be found on the downloadable datasheet supplied.
It is possible to control your single colour LED Strip lights with this Mi-Light Receiver. This receiver can be paired with your 24V LED Strip Lights to suit your mood.
Our whole range of WiFi + RF Receivers / Drivers include:

1. Single-channel units
2. Dual-channel (CCT)
3. RGB (Three-channel)
4. RGBW (Four-channel)
5. RGB+CCT (Five-channel)

When using RF control from a 2.4GHz RF handsets or wall panel, this driver features an auto transmitting & synchronising function. Multiple receivers can be paired to the same single zone on the controller. Make sure they are all within 30m of each other.
Note: The auto transmitting and synchronising functions only work when connected via RF through a 2.4GHz RF handset or wall panel. This facility does not work with a Wi-Fi or Bluetooth connection.
Compatible Mi-Light LED lighting is sold separately. All Mi-Light products purchased from Smart Bright LEDs carry an exclusive five-year warranty.

For product assistance please contact us by telephone, email or via the website live chat.

Feature

1. WiFi 2.4GHz Driver
2. Compatible with Mi-Light / MiBoxer handsets and wall panels
3. Smartphone Compatible
4. 30m signal transmitting and synchronization between receivers
5. Quick and easy to pair with handsets and wall panels

Technical Specification
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Wattage:    75W
Input Voltage:    100v - 240v AC
Output Voltage:    24v DC
Connectivity:    RF & WiFi
Size:    L190mm x W53mm x H32mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Operation Frequency:    RF 2.4GHz & WiFi Standard: IEEE802.11b/g/n 2.4GHz
Operating Temp:    -10 to 40ºC
Total Output:    Max 3A
Output Max:    3A/Channel
