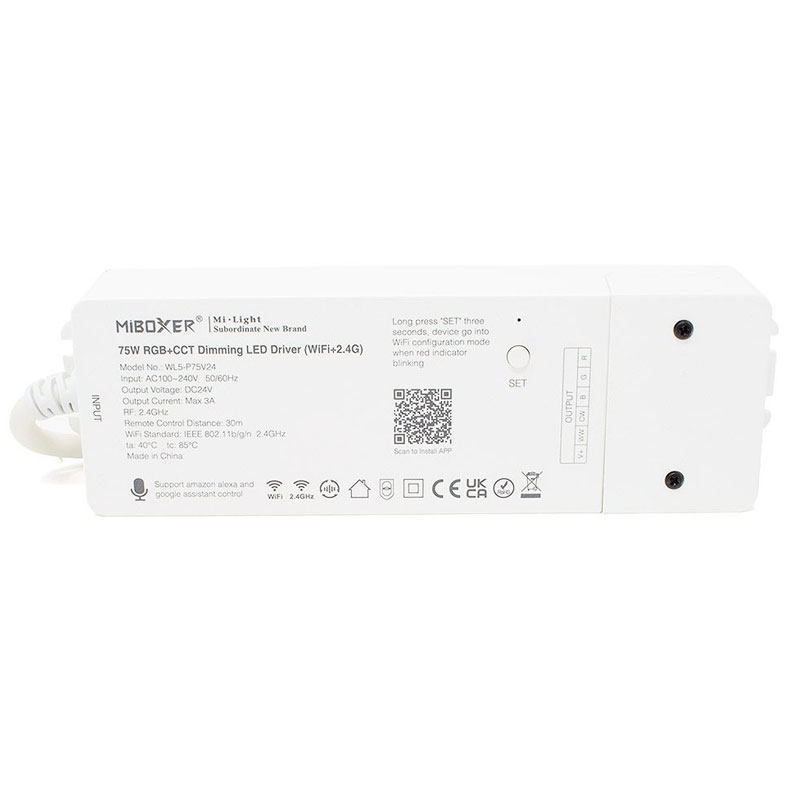

SBL-WL5P75V24 MiBoxer WiFi 75W RGB+CCT Dimmable LED Driver
This high-quality five Channel Bluetooth and 2.4GHz LED Strip WiFi Controller / Driver from Mi-Light can be paired to a 2.4GHz RF Mi-Light / Mi-Boxer Handset or Wall Panel or through the smartphone app. Control your low voltage 24V remote controlled RGB+CCT LED lighting products with ease, offering millions of colour combinations plus adjustable warm white and cool white LEDs to create the perfect pastel colour shades.
Using its Wi-Fi or Bluetooth connection, the driver can also be paired to your smartphone by downloading the "Mi-Boxer Smart" application. This allows voice control through your Amazon Alexa or Google Home smart speaker.
Note: Bluetooth works when the Wi-Fi function is not available allowing short-range control over the driver.
The maximum load on this dimmable LED driver is 3A (3A / Channel). An input voltage of 100V-240V AC (Alternating Current) is required. The driver provides an output voltage of 24V DC (Direct Current)
You can control your 24v DC RGB+CCT (Red, Green and Blue with adjustable colour temperature white LEDs) lighting products up to a maximum of 75W. The driver also has connections for a "Push Dimmer" switch which can be hard-wired to the driver to allow "Push Dimming" of your lighting.
This RF LED receiver is great for controlling your RGB+CCT LED lights, these products include:
- LED Light Bulbs
- LED Downlighters
- LED Strip Lights / LED Tapes
- And many more! - View our range of Mi-Light Products
Make sure your LED lighting is connected to a suitable power supply. Then simply wire your smart light into your stylish dimmable driver and enjoy full control over your smart home LED lighting system.
Compatible Mi-Light controllers for this RGB+CCT LED controller can be found on the downloadable datasheet supplied.
It is possible to control your RGB+CCT LED Strip lights with this Mi-Light Receiver. This receiver can be paired with your 24V LED Strip Lights to suit your mood with the adjustable White LEDs.
Our whole range of WiFi + RF Receivers / Drivers include:
- Single Colour (Single-channel)
- Dual-channel (CCT)
- RGB (Three-channel)
- RGBW (Four-channel)
- RGB+CCT (Five-channel)
When using RF control from a 2.4GHz RF handsets or wall panel, this driver features an auto transmitting & synchronising function. Multiple receivers can be paired to the same single zone on the controller. Make sure they are all within 30m of each other.
Note: The auto transmitting and synchronising functions only work when connected via RF through a 2.4GHz RF handset or wall panel. This facility does not work with a Wi-Fi or Bluetooth connection.
Compatible Mi-Light LED lighting is sold separately. All Mi-Light products purchased from Smart Bright LEDs carry an exclusive five-year warranty.
For product assistance please contact us by telephone, email or via the website live chat.
Feature
- RGB+CCT WiFi 2.4GHz Driver
- Compatible with Mi-Light / MiBoxer handsets and wall panels
- Smartphone Compatible
- 30m signal transmitting and synchronization between receivers
- Quick and easy to pair with handsets and wall panels
Technical Specification
Product Type: Controller / Receiver
Colour: RGB / CW & WW
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 75W
Input Voltage: 100v - 240v AC
Output Voltage: 24v DC
Connectivity: RF & WiFi
Size: L190mm x W53mm x H32mm
Dimmable: No
Wireless Range: Up to 30 metres
Operation Frequency: RF 2.4GHz & WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Operating Temp: -10 to 40ºC
Total Output: Max 3A
Output Max: 3A/Channel
