SBL-SYSRD2 MiBoxer 9W RGB+CCT 24V LED In Ground Light

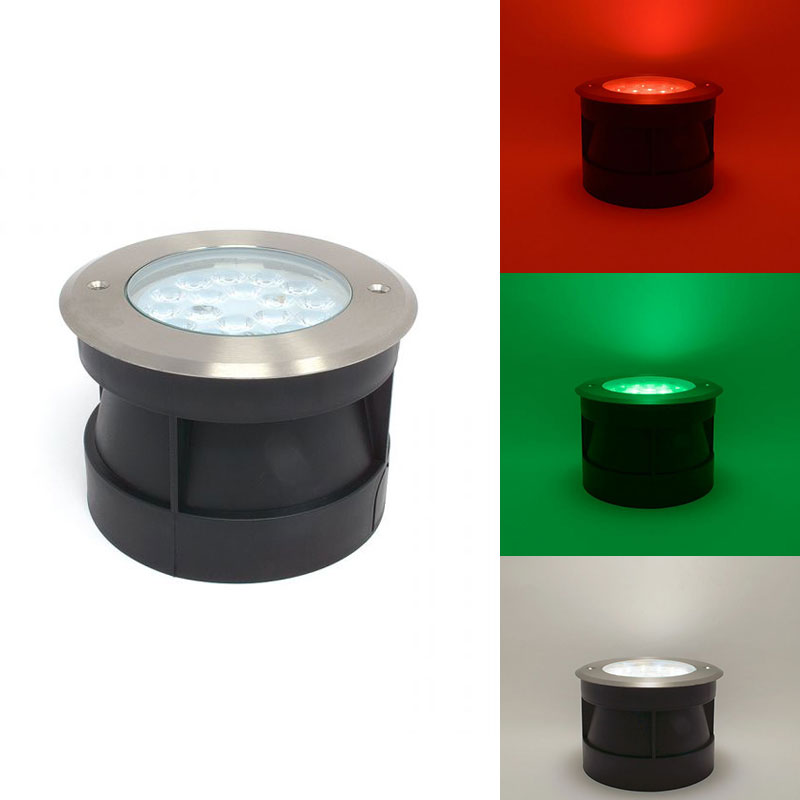

This high quality, "In Ground" luminaire is a powerful commercial grade IP68 rated 9w colour changing light with a 15deg beam angle, it is ideal for mounting into the ground, shining a narrow beam of light up buildings to highlight various features such as pillars, trees shrubs etc. The lights could also be mounted under building eaves to create the same effect but shining down, in fact, the mounting of these lights is limited only by your imagination. With a strong silver bezel and thick lens they can be walked over without damaging them.
There are millions of colour combinations available plus dual white temperature adjustment from Warm White (2700K) to Cool White (6500K), various programs can also be selected from the controller that will fade or pulse through the colours as required.
The luminaire is supplied with a mounting sleeve that should be sunk into the ground and fixed into place. The light body is then slid into the sleeve and screwed into place allowing easy removal for maintenance. Using a suitable 3 core cable, up to 50 SYSRD2 lights can be linked together from a single SYST1 controller powered by a suitable 24v driver for the number of lights you want to link together.
Note: If more lights are required or your cable length is more than 300m, you will need an SYST2 signal amplifier and an additional 24v driver to power the extra lights.
Various wireless control options are available including RF handsets and wall panels that will pair directly to the SYST1 receiver. In addition to being able to pair with the compatible Mi-Light controllers, the Host Controller / Receiver can control your SYS lighting from a smartphone application or with voice control through your smart speakers. (Additional hub required for these features).
Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the online chat.
TECHNICAL DETAILS
Input Voltage | 24v DC |
Color Temperature | 2700 - 6500K |
Product Type | In Ground Light |
IP Rating | IP68 Weatherproof |
CRI Rating (greater than) | CRI >80 |
Colour | RGB / CW & WW |
Wattage | 9W |
Connectivity | RF |
Size | ø150mm X 104mm Height X ø138mm Built-In Fitting |
Beam Angle | 15 degree |
Rated Lifespan | 50,000 hours |
Product Packed | Gift box |
Dimmable | Yes (requires Trulux controller) |
Guarantee Period | 5 Years |
Wireless Range | Up to 30 metres |
Luminous Flux | 700LM |
Light Efficiency | 80LM/W |
Operating Temp | -20~60°C |
Operation Frequency | 2.4GHz |
Smart Synchronisation | Version 2.0 |
**All specifications are subject to change without notice.
