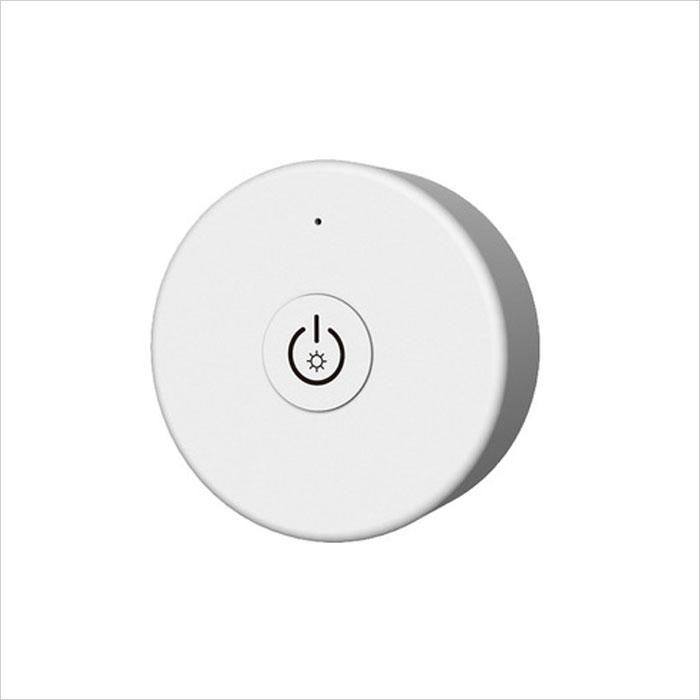

Mini RF Single Color Push Button LED Dimmer Switch w/ Magnetic Base for EZ Dimmer Controller

(9 Reviews) | Write a review

SKU: EZD-MJJC-R1-1

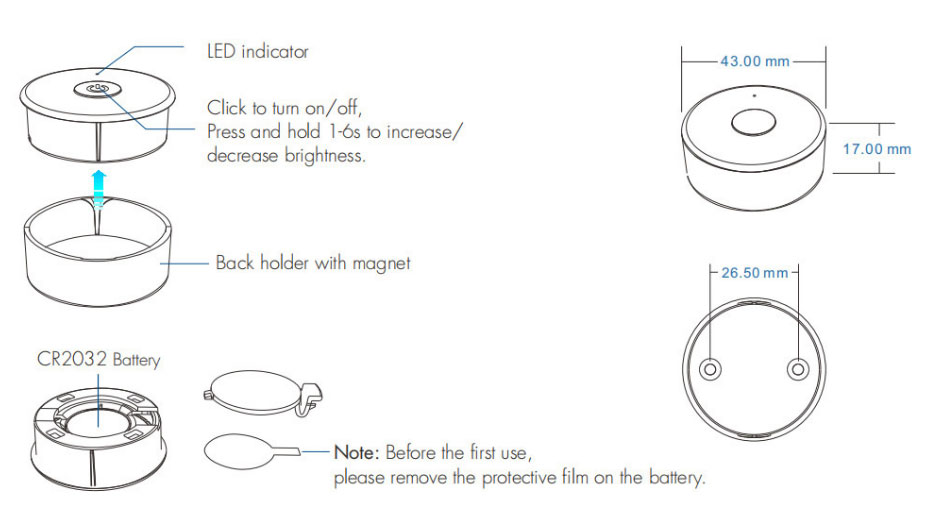

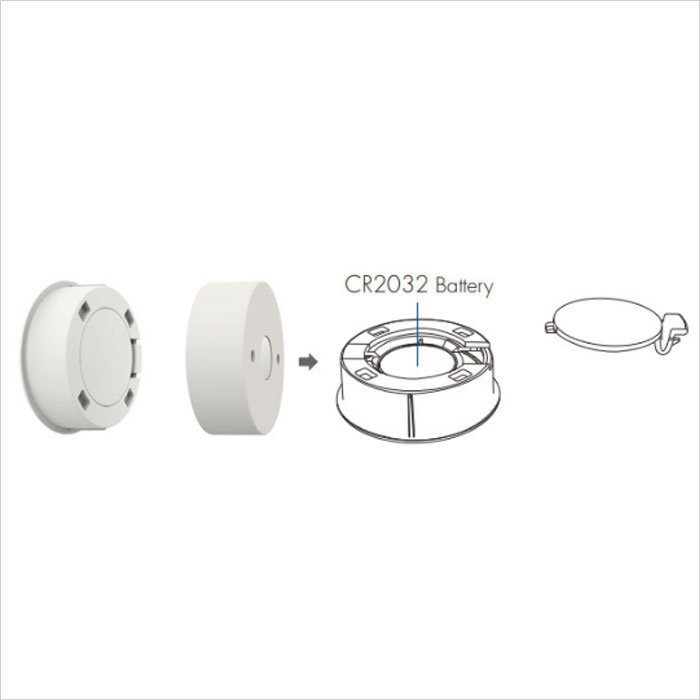

Designed for use with the Wireless LED 1-Channel EZ Dimmer Receiver or Wireless LED 4 Channel EZ Dimmer Receiver with Channel Pairing Option, this push-button LED dimmer switch features a magnetic base and provides both standard on/off controls as well as the ability to dim and brighten LED light strips. The push-button dimmer transmits an RF signal to the wireless receiver from up to 300' away in open air. The wireless dimmer includes 2 mounting screws and a required 3V CR2032 battery installed.

Features:

One-key RF Remote Controller
Each remote can match one or more receiver
Magnet on the back which can be easily stuck any metal surfaces.
Short touch: Turn on or off light
Long touch: brightness adjustment

Warranties & Certifications

Applications: Can use for LED strip, LED panel light, LED ceiling light and other LED lighting

TECHNICAL DETAILS

Battery Type	1 x CR2032
Channels	1 Channel
Control Type	Handheld (RF) Remote
Dim Control	Push Button Control
Finish	White
Operating Temperature	-20~+50 °C (-4~+122 °F)
Radio Frequency	868 MHz
Remote Range	Up to 30m (98')
Standards And Certifications	CE, FCC, RoHS Compliant
Volts	3 VDC
